Specifications
Brand Name :
FY
Model Number :
DN 1-45inch
Certification :
CCIC, or to order
Place of Origin :
China
MOQ :
50m
Payment Terms :
T/T
Supply Ability :
300m/day
Delivery Time :
5days
Packaging Details :
wooden box
Slot :
0.05-60mnm
Flow :
FITO, FOTI
Description

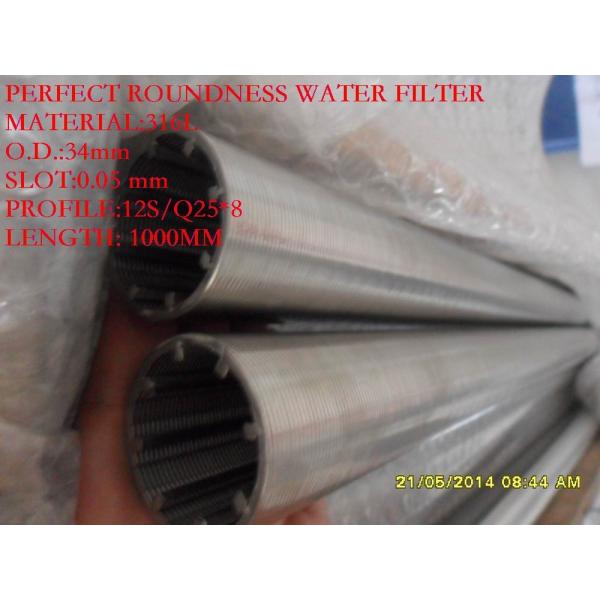

XinLu water well screen are manufactured by a v or wedge shaped wire around an internal array of longitudinal support rods. Each intersecting point of these wire is fusion welded. The v or wedge shaped profile wire wraps around the support rods over the full length of the screen creating a continuous slot opening, hence the screen allows water(oil) to enter your well freely in ample quantities , while at the same time keeps the majority of sand and gravel out of the well.


Lengths up to 6 meters.
Diameter ranging from 25 mm to 800 mm
End Connection :Plain beveled ends for butt welding or threaded.
Specifications are according to customers& actual requests.

Specification (Profile wire):
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30
Specification (support rods):
Width(mm): 2.30 3.00 3.30 3.70 Height(mm): 2.70 3.60 4.70 5.60 6.30Round: From 2.50mm to 6.0mm
Note: other wires and rods available upon request
Slot size: 0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.
Material: Low carton, low carton galvanized steel (LCG), stainless steel (304,316 etc.)
Length; Lengths up to 6 meters.
Diameter: ranging from 25mm to 800mm.
End connection : Plain beveled ends for butt welding or threaded


Product Tags: Supply v wire wrapped Water Well Screens or wedge wire screens well casing and screen tube 8 5/8 inch API 5CT steel casing pipe and wedge wire screen tube
