stainless steel strainer pipe / Water Well Screen / Johnson Wire Screen / wedge wire oil well screen for drilling wells

Specifications

Place of Origin :

China

Brand Name :

FY-XL

Model Number :

FY-XL-16

Certification :

CCIC, ISO

Price :

120$/pcs

Packaging Details :

wooden box, pallet, container

Delivery Time :

3days

Payment Terms :

T/T

Supply Ability :

100pcs/day

MOQ :

20pcs

Diameter :

1" 2: 3" 4" 6" 8" 10" 12" 14"16" 18"

Material :

SS304 205 304L 316 316L 321

Slot :

0.1mm, 0.15mm, 0.2mm, 0.25mm, 0.3mm, 0.5 mm, 0.63mm, 0.75mm, 1.0mm

Length :

2900mm / 5800mm , up to 6 meter

End connection :

Welded rings

Filter Type :

From outside to inside

Description

Feiya International Group Ltd Anping Branch Factory---Xinlu Wire Mesh Products Co.,ltd WEDGE WIRE STRAINER

Feiya International Group Ltd Anping Branch Factory---Xinlu Wire Mesh Products Co.,ltd Screens offer the largest range of Wedge Wire Strainers. All welded vee wire screen is used as filter media. We can offer them in any shape and size to meet your exact requirement.

Available in many configurations like

Cylindrical Wedge Wire Strainer Wedge Wire Basket Strainer for T or Y strainers

Conical V Wire Strainer Strum Box V Strainer

Pre coat Wedge Wire Filter Wedge wire Filter Cartridges

Screens for Pusher Centrifuges Salt Screens

We make them all.

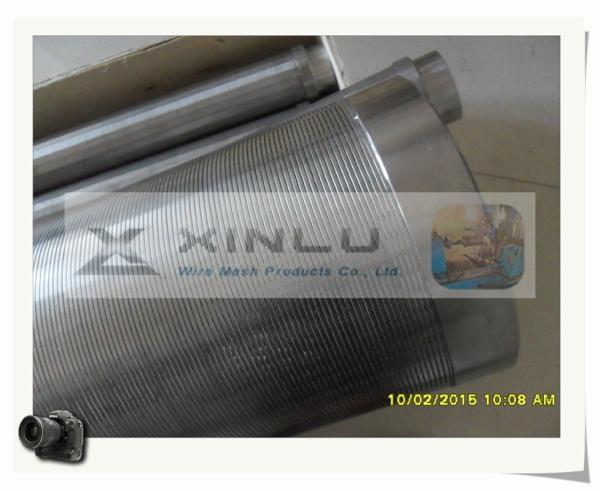

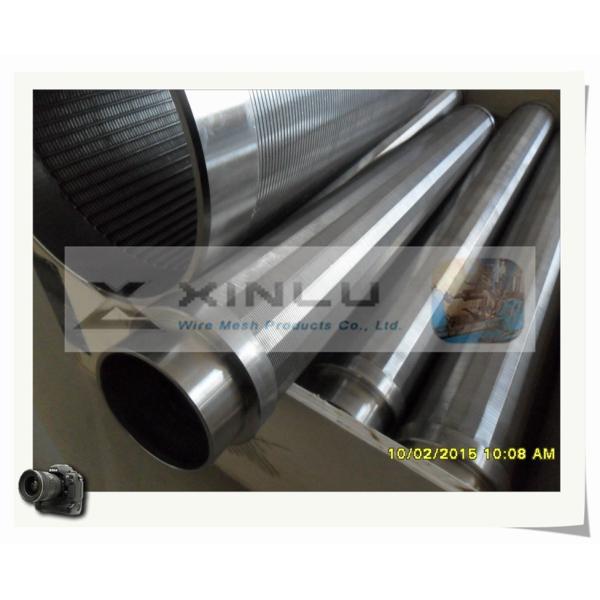

stainless steel strainer pipe / Water Well Screen / Johnson Wire Screen / wedge wire oil well screen for drilling wells

Jonson Vee Screen Stainless Steel 38 Bar 20 Slot OD 219 8 " Deep Water Well

Product Description:

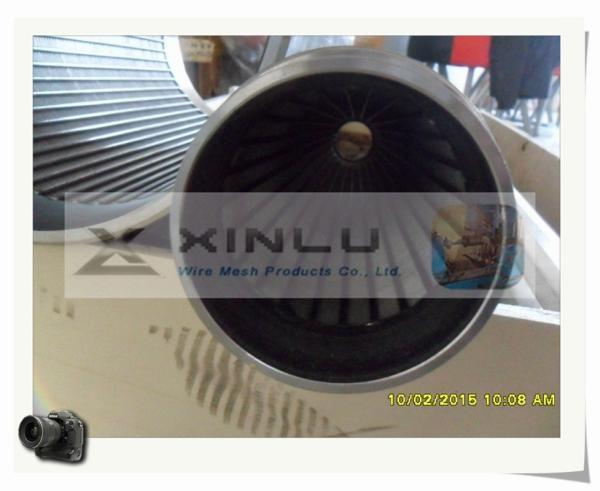

Jonson Vee wire screen is made by winding cold-rolled wire, approximately triangular in cross section, around a circular array of the longitudinal rods. The wire is attached to the rods by welding, producing rigid one-piece units having high strength characteristics at minimum weights.

Specification:

Material	Stainless steel
Grade	205, 304,304L, 316L
O.D	89mm 117mm 219mm 273mm 325mm
Size	3-1/2" 4-1/2" 8-5/8 " 10-3/4" 12"
Slot size	0.5 mm,0.63mm, 0.75mm, 1.0mm
Length	2.9m / 5.8 m, 100-6000mm
End connection	Welded rings
Wire size	63# 93# 118 #
Support rod	140 #
Wire shape	V shape

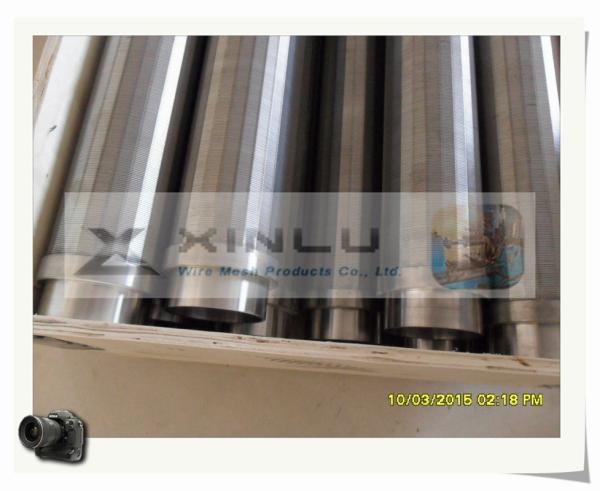

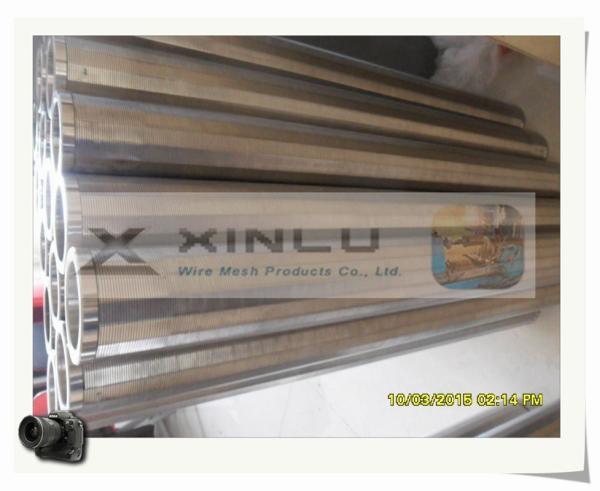

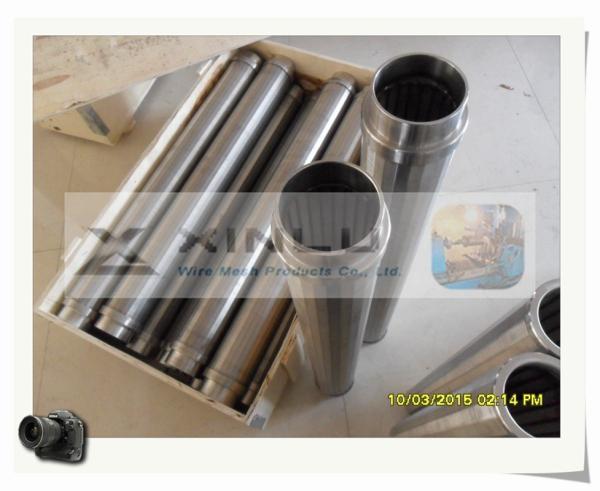

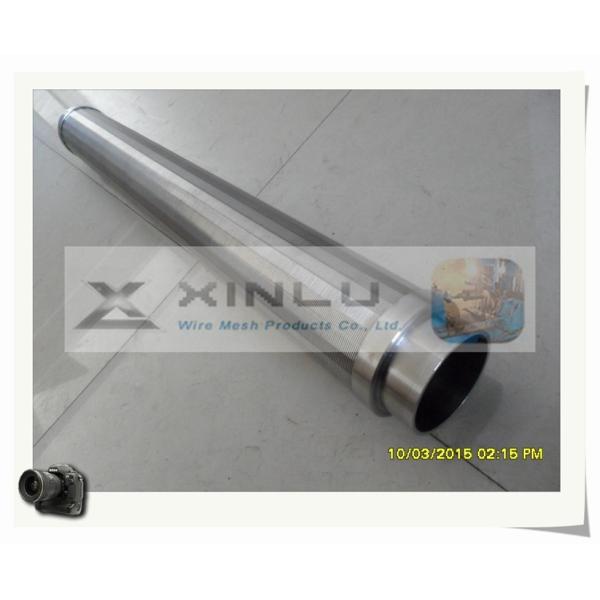

stainless steel strainer pipe / Water Well Screen / Johnson Wire Screen / wedge wire oil well screen for drilling wells

Regular Specifications:

SIZE (INCH)	O.D (MM)	SLOT (MM)	LENGTH (M)	COLLAPSE STRENGTH (BAR)	TENSILE WEIGHT (TON)	WRAP WIRE(WIDTH*HEIGHT) (MM)	RODS (MM)
3-1/2	88.9	1.0	3	＞22	10.2	2.3*3.5	3.8MM/22
4-1/2	114.3	1.0	3	＞28	11.5	2.3*3.5	3.8MM/22
6-5/8	168.3	0.75	5.8	＞40	12.8	2.3*3.5	3.8MM/32
6-5/8	168.3	1.0	5.8	＞33	12.8	2.3*3.5	3.8MM/32
6-5/8	168.3	0.63	5.8	＞83	45	3.2*6.0	6.0MM*32
8-5/8	219.1	1.0	5.8	＞34	21.9	2.3*3.5	3.8MM/48
8-5/8	219.1	1.0	5.8	＞50	38.2	3.0*5.0	4.0MM/48
8-5/8	219.1	1.0	5.8	＞60	46	3.2*6.0	5.0MM/48
10-3/4	273.1	0.75	5.8	＞50	32.9	2.3*3.5	4.9MM/55
10-3/4	273.1	1.0	5.8	＞60	39.5	3.0*5.0	4.9MM/55
10-3/4	273.1	1.0	5.8	＞100	48	3.2*6.0	5.0MM/55
12-3/4	323.9	1.0	5.8	＞120	37.2	3.0*5.0	4.0MM/50
14	355.6	1.0	3	＞80	37.8	3.0*5.0	4.0MM/59

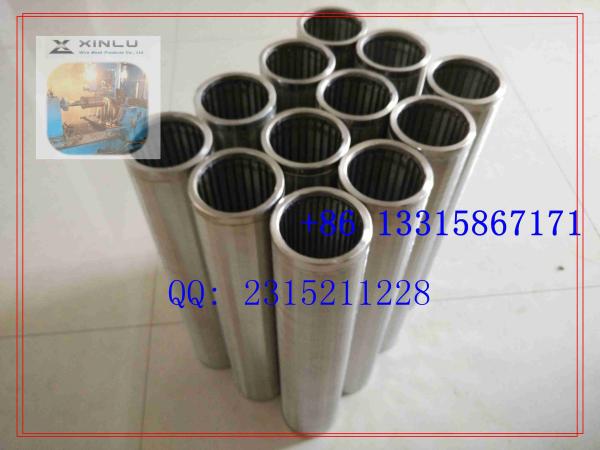

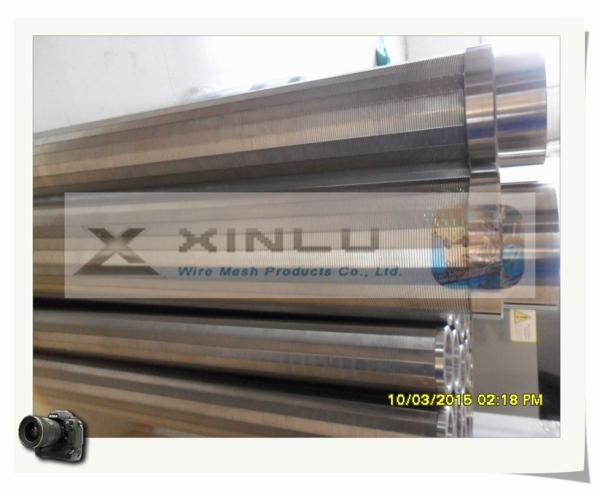

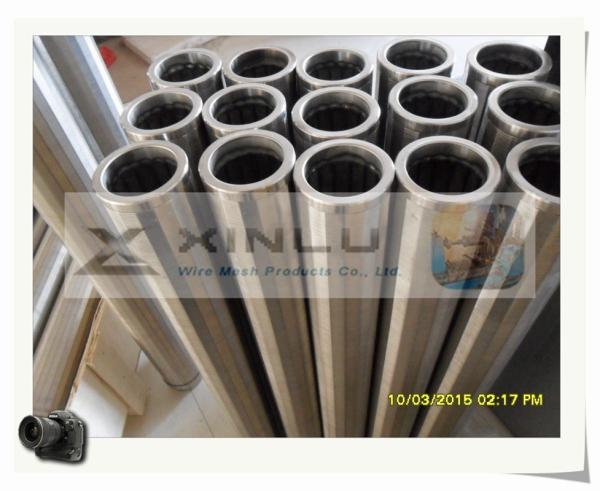

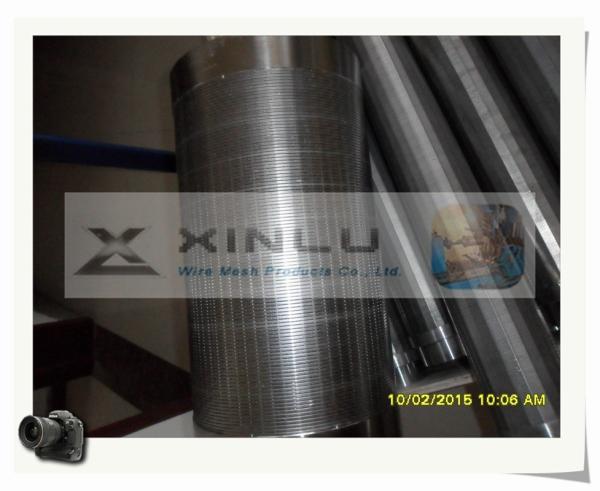

stainless steel strainer pipe / Water Well Screen / Johnson Wire Screen / wedge wire oil well screen for drilling wells

Characteristic:

Not easy to jam

the special V shaped wire, make the hole of screen outside face is smaller than inside, so the hole is not easy to jam.

Slot even

The CNC machine tools strictly control the gap between the wire, so that the gap is even.

Strong corrosion resistance

Stainless steel 304 have the high corrosion resistance

Application:

Wre wrap screen pipe specific continuous-slot construction aims to optimize flow rates, minimize clogging and help develop the water-bearing geological formations faster. It is best applied in the following situations:
Geological formations comprised of small, fine particles
Water wells where gravel packs will be installed
Thin aquifers, where maximum open area is required
Large- and small-diameter deep well

Wire Data reference table:

PROFILE WIRE
WIDTH(mm)	1.50	1.50	2.30	2.30	1.80	3.00	3.70	3.30
HEIGHT(mm)	2.20	2.50	2.70	3.60	4.30	4.70	5.60	6.30

SUPPORT ROD						ROUND
WIDTH(mm)	2.30	2.30	3.00	3.70	3.30	Ø2.5--Ø5mm
HEIGHT(mm)	2.70	3.60	4.70	5.60	6.30	----

Any inquiry please don't hesitate to contact us !(whatsApp+86-13315867171)

Hope we can work together soon.

Contact:feiyatrade@hotmail.com

Skype: terastar.lee

---------------------------------------------------------------------------------------------------

Our factory Xinlu Wire Mesh product co., Ltd located in Anping country, Hebei Province, China.

Our mainly products are: stainless steel vee sharped wire / wrap wire, johnson screeen, water well screen / rod based wire wrapped screen, wedge wire screen, reverse wedge wire screen, stainess steel strainer pipe, v wire slot tube, perfect roundness well screen pipe, dewatering well screen, dewatering screen panel, wedge wire grating, v wire flat panel, screen nozzle, water and gas strainer nozzle, stainless steel filter nozzle, wedge wire support grids, sieve bend plate, v wire screens, ARC screen, filter bottom nozzle, stainless steel lateral screens, wedge wire filter candles, Rotary drum screens, strainer cylinder, sand control well screen, oil well screen, rod basedc ontinuous slot screens, header and hub laterals & hub radial laterals etc. stainless steel strainer pipe / Water Well Screen / Johnson Wire Screen / wedge wire oil well screen for drilling wells
