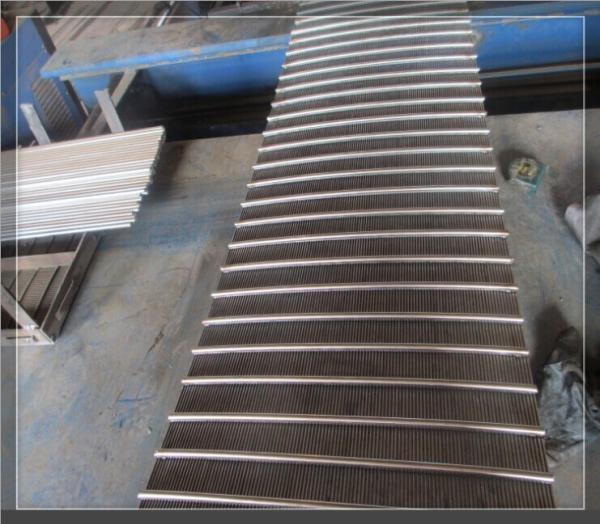

Feiya International Group Ltd Anping Branch Factory---Xinlu Wire Mesh Products Co.,ltd WEDGE WIRE PANEL

Feiya International Group Ltd Anping Branch Factory---Xinlu Wire Mesh Products Co.,ltd offer largest range of Welded Wedge Wire Screen Panels for various applications such as sizing, separation & dewatering.

Better Flatness assures Better Production & Dewatering

There are many combinations available for wedge wire / trapezoidal wire and internal profile support rods. We can offer the best possible combinations to achieve higher open area and higher life simultaneously.

We can produce Wedge Wire Panels in widths up to 3000 mm and lengths up to 6000 mm in single piece construction. The slots can be offered right from 50 microns rating to 750 microns & above.

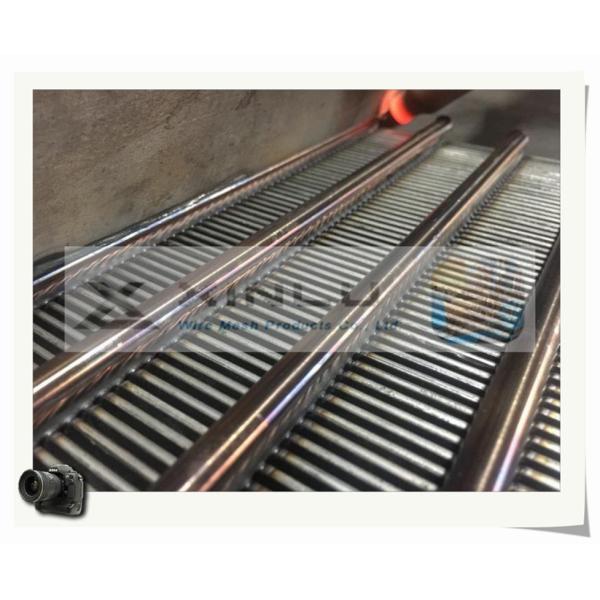

Made of V-shape profile wire and longitudinal support rod, each intersecting point of the wires is fusion welded, so it has sturdy constriction and good mechanical property.
The V-shape section can avoid blockage and make sure of the unimpeded water. And the continuous slot have flexiable open area, that can reduce the speed of the water entering to avoid the sand entering the screen under the pressure, so it can filter sand better.
And also the slot size can changed according to different requirment.
It is widely used for water, oil, and gas wells, and is the dominant water well screen used in the water well industry.

Specification:
Material: stainless steel(304, 304L, 316, 316L etc.)
low carbon, low carbon galvanized steel(LCG),

Wedge wire grating

Profile wire: 3X5mm, 3.2X5.5mm,3X6mm,etc

Support Rod: Φ6-12mm, min pitch 45mm

Slot: 0.3-2mm

Width: up to 1m

Length: up to 2m

Advantage:
High flow rates
Non-clogging slot
Reduction cost in operating
