Specifications
Place of Origin :
China
Brand Name :
FY-XL
Model Number :
FY-XL-18
Certification :
CCIC, ISO
Price :
120$/pcs
Packaging Details :
wooden box, pallet, container
Delivery Time :
3days
Payment Terms :
T/T
Supply Ability :
100pcs/day
MOQ :
20pcs
Material :
stainless steel wire, mild steel wire, galvanized
slot :
0.025-10mm
length :
up tp 6m
flow type :
FITO, FOTI
End connection :
welded rings, threaded, flange
Description

Feiya International Group Ltd Anping Branch Factory---Xinlu Wire Mesh Products Co.,ltd V WIRE FILTER

Feiya International Group Ltd Anping Branch Factory---Xinlu Wire Mesh Products Co.,ltd Screens offer largest range of V wire Filters also known as Filters with vee shaped slot or wedge wire filters.

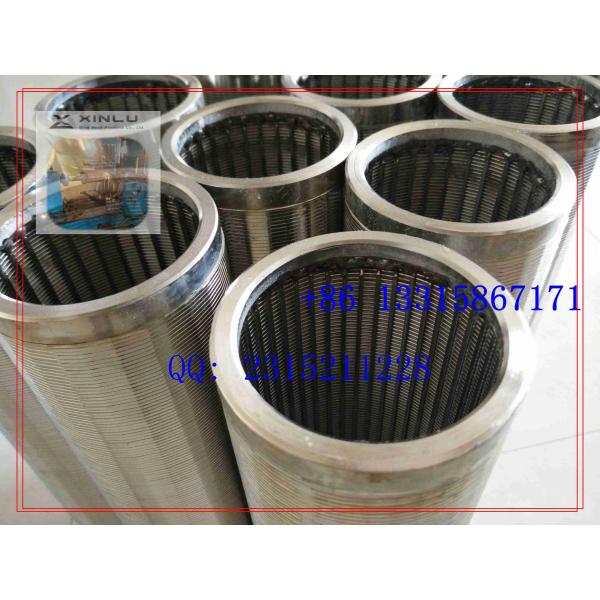

V wire filter is a welded steel structure, mainly used for filtration, separation and retention media.

It consists of surface profiles, usually V-shaped, that are resistance welded onto support profiles. The distance between the surface profiles is controlled very accurately, as it forms the slot through which the filtrate flows.

V wire has the following advantages:

· Non-clogging: the continuous slot formed by the V-shaped surface wires ensures a two-point contact between the particles and the slot, which minimizes clogging.

·

· High-precision slot sizes: precise slot sizes are available to meet customer´s requirements.

·

· Surface filtration: the V-shaped surface wires allow easy cleaning by mechanical scraping or back flushing.

·

· Low pressure-drop

·

Strong construction: for most applications, the wedge wire screen is self-supporting, because of the welding at each intersection.

V WIRE FILTER SCREEN / WEDGE WIRE WATER WELL SCREENS / JOHNSON SCREENS FOR WATER FILTER FROM XINLU METAL WIRE MESHV WIRE FILTER SCREEN / WEDGE WIRE WATER WELL SCREENS / JOHNSON SCREENS FOR WATER FILTER FROM XINLU METAL WIRE MESHV WIRE FILTER SCREEN / WEDGE WIRE WATER WELL SCREENS / JOHNSON SCREENS FOR WATER FILTER FROM XINLU METAL WIRE MESHV WIRE FILTER SCREEN / WEDGE WIRE WATER WELL SCREENS / JOHNSON SCREENS FOR WATER FILTER FROM XINLU METAL WIRE MESHV WIRE FILTER SCREEN / WEDGE WIRE WATER WELL SCREENS / JOHNSON SCREENS FOR WATER FILTER FROM XINLU METAL WIRE MESHV WIRE FILTER SCREEN / WEDGE WIRE WATER WELL SCREENS / JOHNSON SCREENS FOR WATER FILTER FROM XINLU METAL WIRE MESH

Advantage:
High flow rates
Non-clogging slot
Reduction cost in operating

Data reference table:

size the inside diameter of Outer
diameter		 Internal
thread outer diameter
in mm In mm in mm In mm
2 51 2 51 25/8 67 23/4 70
3 76 3 76 35/8 92 33/4 95
4 102 4 102 45/8 117 43/4 121
5 127 5 127 55/8 143 53/4 146
6 152 6 152 65/8 168 7 178
8 203 8 203 85/8 219 91/4 235
10 254 10 254 103/4 273 113/8 289
12 305 12 305 123/4 324 133/8 340
14 356 131/8 333 14 356 - -
16 406 15 381 16 406 - -
20 508 18 3/4 476 20 508 - -

PROFILE WIRE
WIDTH(mm) 1.50 1.50 2.30 2.30 1.80 3.00 3.70 3.30
HEIGHT(mm) 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30

SUPPORT ROD
ROUND
WIDTH(mm) 2.30 2.30 3.00 3.70 3.30 Ø2.5--Ø5mm
HEIGHT(mm) 2.70 3.60 4.70 5.60 6.30 ----

Any inquiry please don't hesitate to contact us !(whatsApp+86-13315867171)

Hope we can work together soon.

Contact:feiyatrade@hotmail.com

Skype: terastar.lee

---------------------------------------------------------------------------------------------------------------

Our factory Xinlu Wire Mesh product co., Ltd located in Anping country, Hebei Province, China.

Our mainly products are: stainless steel vee sharped wire / wrap wire, johnson screeen, water well screen / rod based wire wrapped screen, wedge wire screen, reverse wedge wire screen, stainess steel strainer pipe, v wire slot tube, perfect roundness well screen pipe, dewatering well screen, dewatering screen panel, wedge wire grating, v wire flat panel, screen nozzle, water and gas strainer nozzle, stainless steel filter nozzle, wedge wire support grids, sieve bend plate, v wire screens, ARC screen, filter bottom nozzle, stainless steel lateral screens, wedge wire filter candles, Rotary drum screens, strainer cylinder, sand control well screen, oil well screen, rod basedc ontinuous slot screens, header and hub laterals & hub radial laterals etc.
