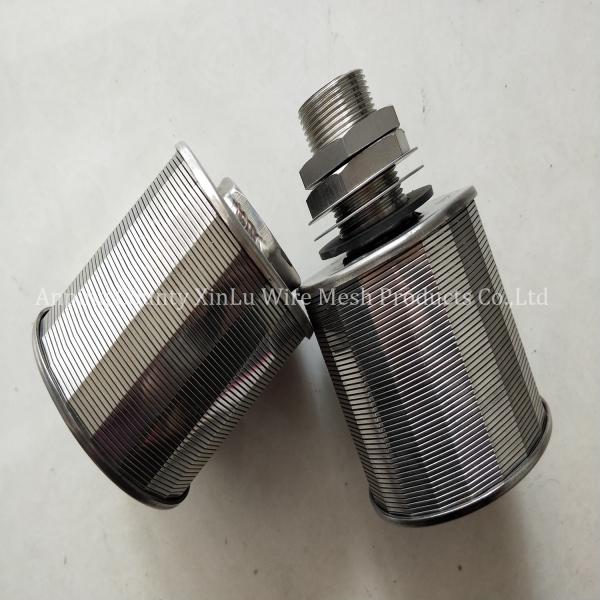

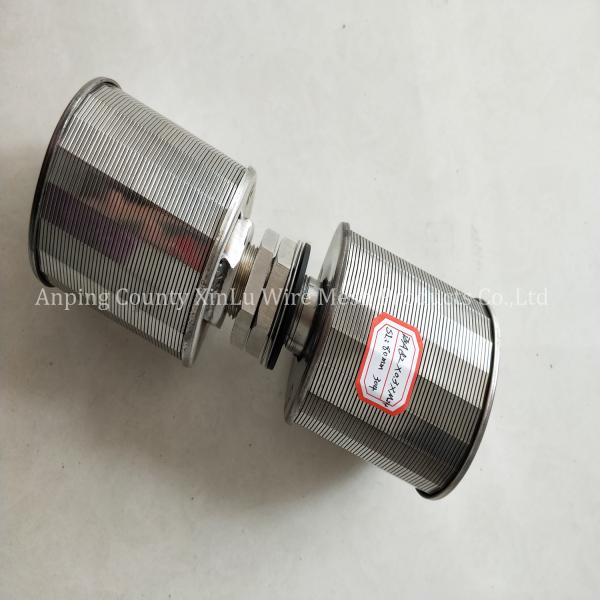

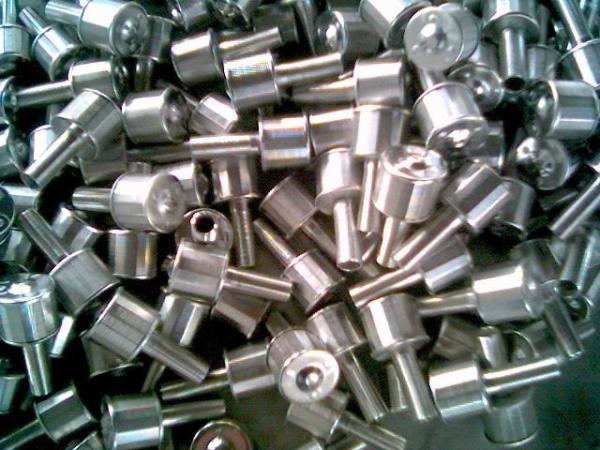

single tube type valve bounet, Quickly install water filter top and bottom nozzle, johnson screen nozzle
single tube type valve bounet, Quickly install water filter top and bottom nozzle, johnson screen nozzle
single tube type valve bounet, Quickly install water filter top and bottom nozzle, johnson screen nozzle
single tube type valve bounet, Quickly install water filter top and bottom nozzle, johnson screen nozzle
single tube type valve bounet, Quickly install water filter top and bottom nozzle, johnson screen nozzle
single tube type valve bounet, Quickly install water filter top and bottom nozzle, johnson screen nozzle
single tube type valve bounet, Quickly install water filter top and bottom nozzle, johnson screen nozzle
single tube type valve bounet, Quickly install water filter top and bottom nozzle, johnson screen nozzle
single tube type valve bounet, Quickly install water filter top and bottom nozzle, johnson screen nozzle
single tube type valve bounet, Quickly install water filter top and bottom nozzle, johnson screen nozzle
single tube type valve bounet, Quickly install water filter top and bottom nozzle, johnson screen nozzle
single tube type valve bounet, Quickly install water filter top and bottom nozzle, johnson screen nozzle
single tube type valve bounet, Quickly install water filter top and bottom nozzle, johnson screen nozzle
single tube type valve bounet, Quickly install water filter top and bottom nozzle, johnson screen nozzle
single tube type valve bounet, Quickly install water filter top and bottom nozzle, johnson screen nozzle
single tube type valve bounet, Quickly install water filter top and bottom nozzle, johnson screen nozzle
single tube type valve bounet, Quickly install water filter top and bottom nozzle, johnson screen nozzle
single tube type valve bounet, Quickly install water filter top and bottom nozzle, johnson screen nozzle
single tube type valve bounet, Quickly install water filter top and bottom nozzle, johnson screen nozzle
single tube type valve bounet, Quickly install water filter top and bottom nozzle, johnson screen nozzle
single tube type valve bounet, Quickly install water filter top and bottom nozzle, johnson screen nozzle
single tube type valve bounet, Quickly install water filter top and bottom nozzle, johnson screen nozzle
Specifications
Place of Origin :
China
Brand Name :
FY-XL
Model Number :
FY-XL-15
Certification :
CCIC, ISO
Price :
9$/spcs
Packaging Details :
wooden box, pallet, container
Delivery Time :
3days
Payment Terms :
T/T
Supply Ability :
350pcs/day
MOQ :
200pcs
Name :
single head johnson filter nozzle
Material :
SS304, SS316L, SS321, Hastelloy C276, Titanium
wedge wire :
#63, #93, #118
Diameter :
38mm, 45mm, 50mm, 53mm, 57mm, 76mm, 82mm, 108mm
Threaded :
M24, M32, G1", G3/4", NPT, BSP 1" 3/4"
Weight :
0.18-0.5kg/pcs
Slot :
0.010"
Filter Height :
25-80mm
Description

Feiya International Group Ltd Anping Branch Factory---Xinlu Wire Mesh Products Co.,ltd TRAPEZOID WIRE NOZZLES

Nozzles are an ideal solution for applications with heavy amounts of media whose weight could compromise the integrity of unsupported screens. That's because nozzles are affixed to durable steel plates that can withstand great loads without damage. Using the nozzle method gives you the reliability you want with the flow rate you require.

Feiya International Group Ltd Anping Branch Factory---Xinlu Wire Mesh Products Co.,ltd Screens manufactures nozzles using a welded trapezoidal (wedge) wire screen variety of materials to ensure long life and reliable performance. The non-plugging, continuous slot design makes Feiya International Group Ltd Anping Branch Factory---Xinlu Wire Mesh Products Co.,ltd Screens nozzles ideal for applications that involve the retention of sand, activated carbon, ion exchange resin and more. They withhold the media while allowing the treated liquid to pass through.

If needed, Feiya International Group Ltd Anping Branch Factory---Xinlu Wire Mesh Products Co.,ltd Screens can also custom manufacture nozzles to your exact specifications, including material, fitting type and sizes.

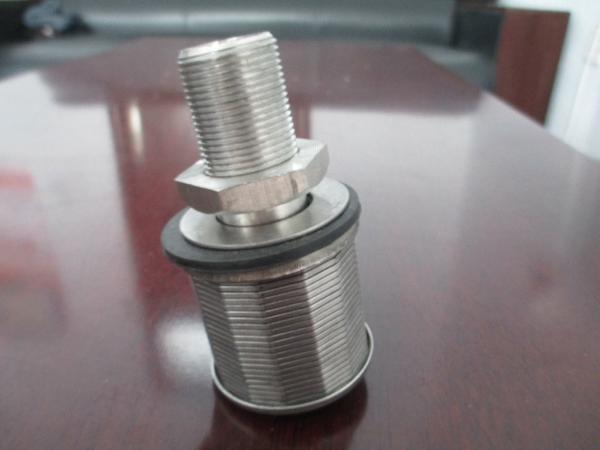

single tube type valve bounet, Quickly install water filter top and bottom nozzle, johnson screen nozzle

Type 1: Specification of Single Head Wedge Wire Filter Nozzle

Item

Model

Slots (mm)

Outline Dimension (mm)

Filtration Area (mm2), slot 0.2 mm

D

H

L

M
1 XLSN45-1-A 0.2-0.5 45 25 75 M20 280
2 XLSN45-1-B 0.2-0.5 45 35 85 M20 390
3 XLSN45-1-C 0.2-0.5 45 45 95 M24 500
4 XLSN53-2-A 0.2-0.5 53 45 95 M24 450
5 XLSN53-2-B 0.2-0.5 53 45 95 M32 450
6 XLSN53-2-C 0.2-0.5 53 55 110 M32 550
7 XLSN57-3-A 0.2-0.5 57 35 85 M32 520
8 XLSN57-3-B 0.2-0.5 57 45 95 M32 660
9 XLSN57-3-C 0.2-0.5 57 55 110 M32 530
10 XLSN70-4-A 0.2-0.5 70 45 95 M32 530
11 XLSN70-4-R 0.2-0.5 70 70 120 M32 1000
12 XLSN82-A 0.2-0.5 82 60 120 G11/M42 /

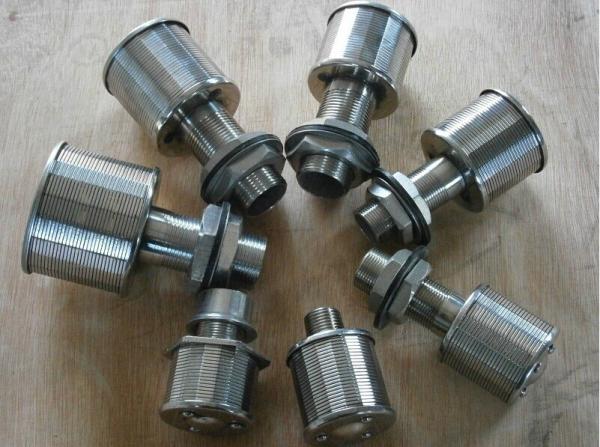

single tube type valve bounet, Quickly install water filter top and bottom nozzle, johnson screen nozzle

Type 2: Specification of Double Head Wedge Wire Filter Nozzle

Item

Model

Slot (mm)

Outline Dimension (mm)

Filtration Area (mm2), Slots 0.2 mm

D

H

L

M
1 DT45-1-A 0.25-0.5 45 30 according to order M25 330
2 DT45-1-B 0.25-0.5 45 35 M25 300
3 DT45-1-C 0.25-0.5 45 40 M25 450
4 DT45-1-D 0.25-0.5 45 45 M25 400
5 DT53-2-A 0.25-0.5 53 30 M25 400
6 DT53-2-B 0.25-0.5 53 35 M25 380
7 DT53-2-C 0.25-0.5 53 45 M32 680
8 DT57-3-A 0.25-0.5 57 35-40 M32 530
9 DT57-3-B 0.25-0.5 57 50-55 M32 700-750
single tube type valve bounet, Quickly install water filter top and bottom nozzle, johnson screen nozzlesingle tube type valve bounet, Quickly install water filter top and bottom nozzle, johnson screen nozzlesingle tube type valve bounet, Quickly install water filter top and bottom nozzle, johnson screen nozzlesingle tube type valve bounet, Quickly install water filter top and bottom nozzle, johnson screen nozzlesingle tube type valve bounet, Quickly install water filter top and bottom nozzle, johnson screen nozzlesingle tube type valve bounet, Quickly install water filter top and bottom nozzle, johnson screen nozzleNa
