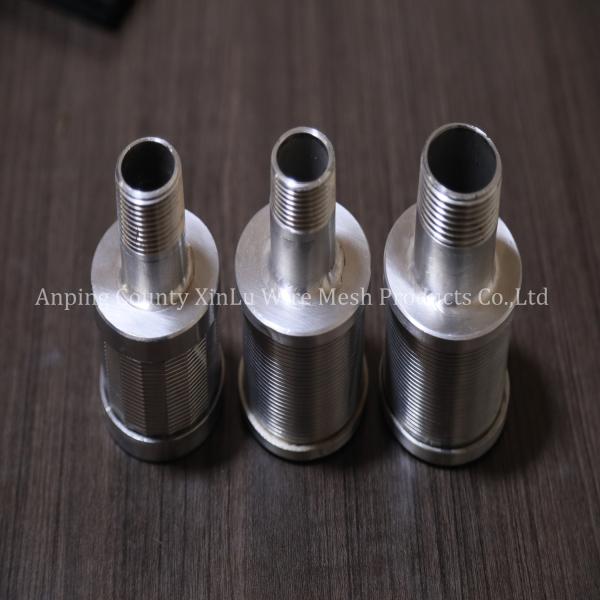

Stainelss Steel Filter Johnson Screen Nozzle, Wedge Wire Wrapped Water Filter Bottom Nozzle For Mixed Bed
Stainelss Steel Filter Johnson Screen Nozzle, Wedge Wire Wrapped Water Filter Bottom Nozzle For Mixed Bed
Stainelss Steel Filter Johnson Screen Nozzle, Wedge Wire Wrapped Water Filter Bottom Nozzle For Mixed Bed
Stainelss Steel Filter Johnson Screen Nozzle, Wedge Wire Wrapped Water Filter Bottom Nozzle For Mixed Bed
Stainelss Steel Filter Johnson Screen Nozzle, Wedge Wire Wrapped Water Filter Bottom Nozzle For Mixed Bed
Stainelss Steel Filter Johnson Screen Nozzle, Wedge Wire Wrapped Water Filter Bottom Nozzle For Mixed Bed
Stainelss Steel Filter Johnson Screen Nozzle, Wedge Wire Wrapped Water Filter Bottom Nozzle For Mixed Bed
Stainelss Steel Filter Johnson Screen Nozzle, Wedge Wire Wrapped Water Filter Bottom Nozzle For Mixed Bed
Stainelss Steel Filter Johnson Screen Nozzle, Wedge Wire Wrapped Water Filter Bottom Nozzle For Mixed Bed
Stainelss Steel Filter Johnson Screen Nozzle, Wedge Wire Wrapped Water Filter Bottom Nozzle For Mixed Bed
Stainelss Steel Filter Johnson Screen Nozzle, Wedge Wire Wrapped Water Filter Bottom Nozzle For Mixed Bed
Stainelss Steel Filter Johnson Screen Nozzle, Wedge Wire Wrapped Water Filter Bottom Nozzle For Mixed Bed
Stainelss Steel Filter Johnson Screen Nozzle, Wedge Wire Wrapped Water Filter Bottom Nozzle For Mixed Bed
Stainelss Steel Filter Johnson Screen Nozzle, Wedge Wire Wrapped Water Filter Bottom Nozzle For Mixed Bed
Stainelss Steel Filter Johnson Screen Nozzle, Wedge Wire Wrapped Water Filter Bottom Nozzle For Mixed Bed
Stainelss Steel Filter Johnson Screen Nozzle, Wedge Wire Wrapped Water Filter Bottom Nozzle For Mixed Bed
Stainelss Steel Filter Johnson Screen Nozzle, Wedge Wire Wrapped Water Filter Bottom Nozzle For Mixed Bed
Stainelss Steel Filter Johnson Screen Nozzle, Wedge Wire Wrapped Water Filter Bottom Nozzle For Mixed Bed
Stainelss Steel Filter Johnson Screen Nozzle, Wedge Wire Wrapped Water Filter Bottom Nozzle For Mixed Bed
Stainelss Steel Filter Johnson Screen Nozzle, Wedge Wire Wrapped Water Filter Bottom Nozzle For Mixed Bed
Stainelss Steel Filter Johnson Screen Nozzle, Wedge Wire Wrapped Water Filter Bottom Nozzle For Mixed Bed
Stainelss Steel Filter Johnson Screen Nozzle, Wedge Wire Wrapped Water Filter Bottom Nozzle For Mixed Bed
Specifications
Place of Origin :
China
Brand Name :
FY-XL
Model Number :
FY-XL-06
Certification :
CCIC, ISO
Price :
20$/m
Packaging Details :
wooden box, pallet, container
Delivery Time :
5days
Payment Terms :
T/T
Supply Ability :
300m/day
MOQ :
30m
Filter Nozzle type :
Double Head, Singe Head, Double Flow, Quick Instal, Long Neck, Pure Round Filter Nozzle
Flow rate :
0.5ton, 1Ton, 2Ton, 3Ton, 5Ton
Nozzle size :
1-1/2", 2"
Slot :
0.010" = 0.25mm
End Connection :
NPT Threaded with 3/4" or 1"
Weight :
0.18-0.45kg/pcs
Material :
SS304, SS316L, SS321, Hastelloy C276, Titanium
Screen Height :
25-80mm
Description

Stainelss Steel Filter Johnson Screen Nozzle, Wedge Wire Wrapped Water Filter Bottom Nozzle For Mixed Bed

Water & Gas Strainer Nozzle & Johnson Screen Nozzles & Stainless Steel Filter Nozzle

Water & Gas strainers (screen nozzles) are manufactured in accordance to customer flow requirements in almost any alloy. They can be designed for filtration or treatment systems to permit more effective use of the treatment media. Because of their non-clogging design strainer are effective in a wide rang of water treatment and other industrial applications. Common applications include under drain media retention elements or flow distributors in demineralizers and water softeners in pressure and gravity sand filters.

Strainer Nozzles can also be used as collectors at the bottom of the vessels by installing a number of strainers uniformly across a tray plate.The combination of high open area and a non-plugging slot design makes this nozzle /collector application popular.

Filter Nozzle classification method

1. Classified by production process

Stamped screen nozzle

lathed screen nozzle

2. by flow rate

0.5 ton screen nozzle, 1 ton screen nozzle, 2 ton screen nozzle, 3 ton screen nozzle, 5 ton screen nozzle

3. by style

Quickly Install Single head Screen Nozzle

Double head Screen nozzle

Long hand Screen nozzle

Large long hand pipe Screen nozzle

Plate type Screen nozzle

Double Flow Rate Screen nozzle

Pure round Screen Nozzle

No. Model Type D L H

Slot

(MM)

 Threaded

Slot 0.2-0.25

open areas mm2
FYN1 XL45-1-A 45 80 25 0.2-0.5 M25 280
FYN2 XL45-1-B 45 90 35 0.2-0.5 M25 390
FYN3 XL45-1-C 45 98 34 0.2-0.5 M20 380-493
FYN4 XL45-1-D 45 100 45 0.2-0.5 M25 500
FYN5 XL45-1-E 45 100 34 0.2-0.5 M24 551-690
FYN6 XL45-1-F 45 110 45 0.2-0.5 M25 550
FYN7 XL45-1-G 45 55 35 0.2-0.5 M25 380
FYN8 XL45-1-H 45 65 45 0.2-0.5 M25 550
FYN9 XL53-2-A 53 90 35 0.2-0.5 M25 450
FYN10 XL53-2-B 53 100 34 0.2-0.5 M24 453-597
FYN11 XL53-2-C 53 100 45 0.2-0.5 M25 570
FYN12 XL53-2-D 53 100 50 0.2-0.5 M27 680-710
FYN13 XL53-2-E 53 105 34 0.2-0.5 M32 800-920
FYN14 XL53-2-F 53 110 45 0.2-0.5 M25 580
FYN15 XL53-2-G 53 110 50 0.2-0.5 M32 700
FYN16 XL53-2-H 53 120 55 0.2-0.5 M32 700
FYN17 XL57-3-A 57 100 35 0.2-0.5 M32 530
FYN18 XL57-3-B 57 110 45 0.2-0.5 M32 600-680
FYN19 XL57-3-C 57 115 35 0.2-0.5 M30 560-670
FYN20 XL57-3-D 57 120 55 0.2-0.5 M32 800-905
FYN21 XL60-4-A 60 120 55 0.2-0.5 G1″ 905-1100
FYN22 XL70-5-A 70 105 40 0.2-0.5 M32 650
FYN23 XL70-5-B 70 110 45 0.2-0.5 M32 800
FYN24 XL70-5-C 70 115 50 0.2-0.5 M32 810
FYN25 XL70-5-D 70 120 55 0.2-0.5 M32 1000
FYN26 XL82-6-A 82 120 60 0.2-0.5 G2″/M42
FYN27 XL82-6-B 82 130 50 0.2-0.5 M33 1170-1280
FYN28 XL108-7-A 108 200 100 0.2-0.5 G2″ 3050-4600

Screen Nozzle

Feiya group branch factory-Xinlu Screen Nozzles are made of vee-wire wrapped around support rods in a helix pattern to form continuous slots. Rigid construction and evenly distributed slots make the screen nozzle ideal for use as collectors and distributors in material retention and flow rate control.

We Specialize in filtration components, and are able to produce wedge wire screen nozzles with a high open area and a large flow capacity. The wedge wire nozzles are widely used in water treatment, Chemical engineering, petrochemical industries, pharmaceuticals, biochemical industries, power plants, and ion exchange systems.

Below, we’ve listed several popular models for customers to choose from.
