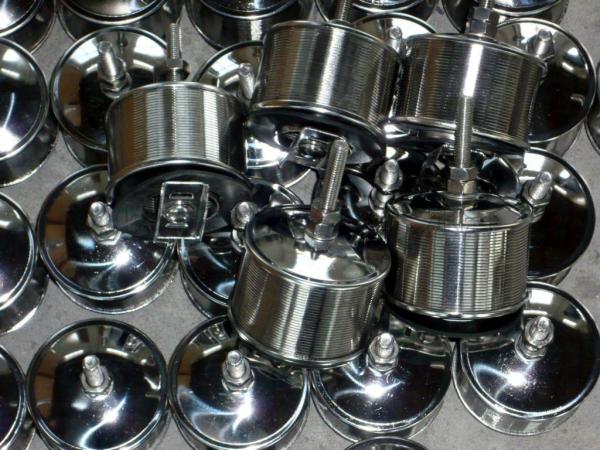

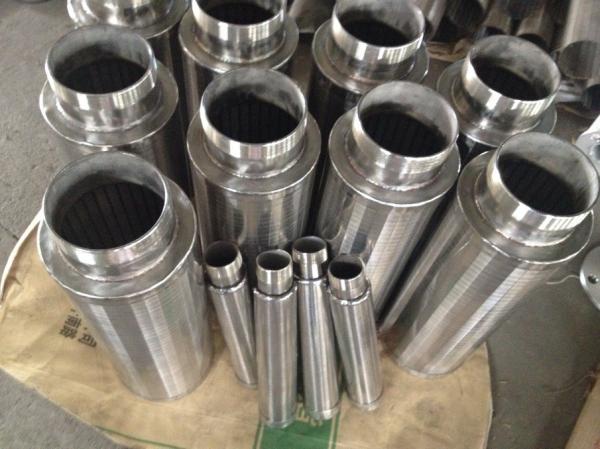

WEDGE WIRE RESIN TRAPS / JOHNSON SCREEN NOZZLE / WATER AND GAS STRAINER NOZZLE

Specifications

Place of Origin :

China

Brand Name :

FY-XL

Model Number :

FY-XL-14

Certification :

CCIC, ISO

Price :

10$/spcs

Packaging Details :

wooden box, pallet, container

Delivery Time :

3days

Payment Terms :

T/T

Supply Ability :

320pcs/day

MOQ :

200pcs

Material :

SS304, SS316L, SS321, Hastelloy C276, Titanium

Diameter :

38mm, 45mm, 50mm, 53mm, 57mm, 76mm, 82mm, 108mm

Slot :

0.15mm, 0.18mm, 0.2mm, 0.25mm, 0.3mm

Screen Hight :

25-60mm

Total Length :

120mm

Weight :

0.18-0.5kg/pcs

Filter Nozzle :

Single head screen nozzle, Double flow filter nozzle, long neck filter nozzle

Threaded :

M24, M32, G1", G3/4", NPT, BSP 1" 3/4"

Description

Feiya International Group Ltd Anping Branch Factory---Xinlu Wire Mesh Products Co.,ltd RESIN TRAPS

Feiya International Group Ltd Anping Branch Factory---Xinlu Wire Mesh Products Co.,ltd Screens resin traps feature a continuous slot design that prevents the loss of ion exchange resin, activated carbon media, filter media, greensand media, sand and other media. Not only is this essential to prevent the loss of expensive material, but it's also critical to avoid damaging downstream equipment.

However, this safety precaution will not diminish flow. Feiya International Group Ltd Anping Branch Factory---Xinlu Wire Mesh Products Co.,ltd Screens can manufacture resin traps to guard against your exact media particle size while also providing the flow rate your system requires.

Reliable, durable and extremely low maintenance, the non-clogging, continuous slot design allows for a large amount of open area with extremely consistent spacing. Feiya International Group Ltd Anping Branch Factory---Xinlu Wire Mesh Products Co.,ltd Screens can manufacture resin traps in a wide variety of materials and sizes to suit your application needs.

WEDGE WIRE RESIN TRAPS / JOHNSON SCREEN NOZZLE / WATER AND GAS STRAINER NOZZLE

Type 3: Specification of Long Hand Wedge Wire Filter Nozzle
Item	Model	Slot (mm)	Outline Dimension (mm)					Filtration Area (mm²), Slots 0.2 mm
Item	Model	Slot (mm)	D	H	L	M	L1	Filtration Area (mm²), Slots 0.2 mm
1	XLLN45-11-A	0.2-0.5	45	35	35	M20	according to order	330
2	XLLN45-11-B	0.2-0.5	45	45	40	M24		400
3	XLLN53-12-A	0.2-0.5	53	35	45	M24		510
4	XLLN53-12-A	0.2-0.5	53	45	50	M32		640
5	XLLN57-13-A	0.2-0.5	57	40	45	M32		630
6	XLLN57-13-B	0.2-0.5	57	50	50	M32		780

WEDGE WIRE RESIN TRAPS / JOHNSON SCREEN NOZZLE / WATER AND GAS STRAINER NOZZLE

Type 4: Specification Of Plate Type Flowing Wedge Wire Filter Nozzle
Item	Model	Slot (mm)	Outline Dimension (mm)				Filtration Area (mm²), slots 0.2 mm
Item	Model	Slot (mm)	D	L1	D1	L	Filtration Area (mm²), slots 0.2 mm
1	CP82-DF1-A	0.25-0.5	82	50	50	130	1072-1300
2	CP82-SF1-A	0.25-0.5	82	50	50	130	551-690
3	CP82-SF1-B	1.02	82	50	50	130	1300
4	CP82-DF1-C	0.25-0.5	82	42	50	130	1020-1070
5	CP82-SF1-C	0.25-0.5	82	42	50	130	380-493
6	CP57-DF2-A	0.25-0.5	57	40	35	100	800
7	CP57-SF2-A	0.25-0.5	57	40	35	100	680
8	CP53-DF3-A	0.25-0.5	53	38	35	110	766
9	CP53-SF3-A	0.25-0.5	53	38	35	110	453-597
10	CP53-DF3-B	0.25-0.5	53	33	35	110	588
11	CP53-SF3-B	0.25-0.5	53	33	35	110	485
12	CP53-SF3-C	1.02	53	33	35	110	680-710
