Johnson screen

Introduction

The Johnson screen pipe is composed of rib strips and V shaped wires through manufacturing on specialized welding machine. The rib strips and V shaped wires will be welded by resistance welding, has enough welding strength, equally slot gap, high corrosion resistance, large filter area, good permeability, simple structure, 0.1mm slot gap, and can be select by client in any way.

Details

1)Material: 302,304,316,304L,316L stainless steel wire

2) Specification

Screen Tube Size: 2.2mm*3.0mm -3.0mm*5.0mm

Support Bars Size: 2.3*2.7mm,2.3*3.6mm,3.0*4.7mm,3.7*5.6mm,3.3*6.3mm etc

Support Bars Pitch: 1.5 -3cm

OD: 75 -194mm

ID: 62 -182mm

Length: 1000-6000mm

Slot: 0.1 -5.0mm

Filter Rating: 68% or as requiement

Characteristics

• Non-clogging surface
• Large open area
• Low pressure drop
• Hydraulic efficiency
• High flow rates
• Mechanical strength
• Abrasion-resistant
• Easy cleaning

Application

• Water and waste water
• Pulp and paper
• Chemical
• Petrochemical
• Water supply
• Mineral and aggregate processing
• Plastics extrusion
• Machine coolant filtration
• Architectural application

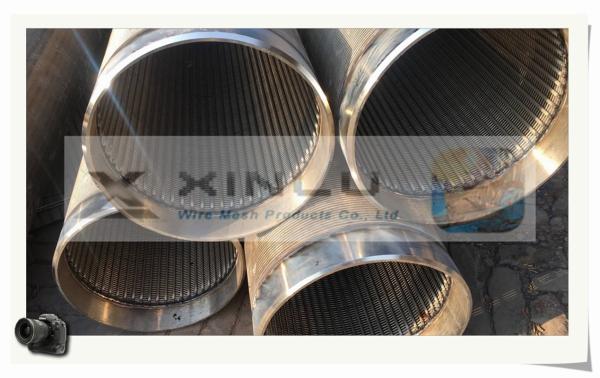

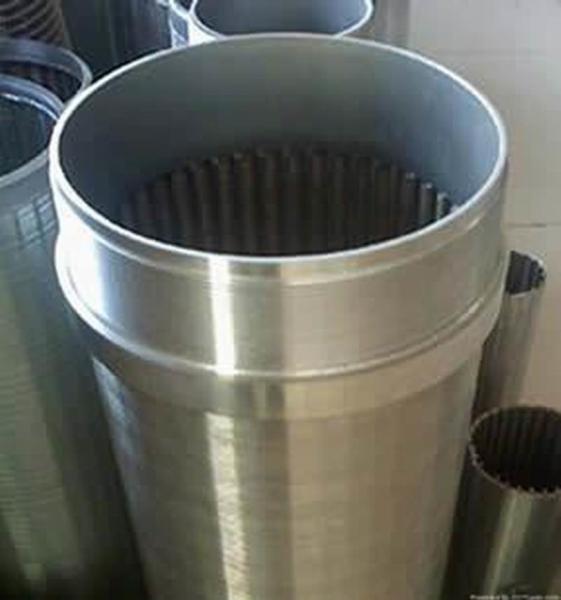

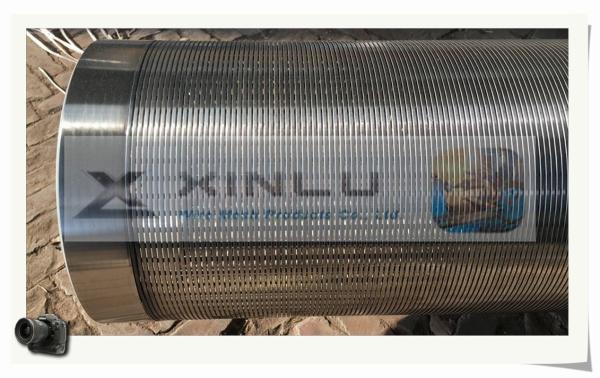

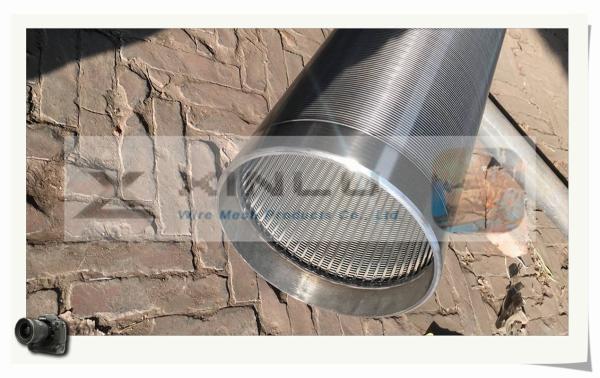

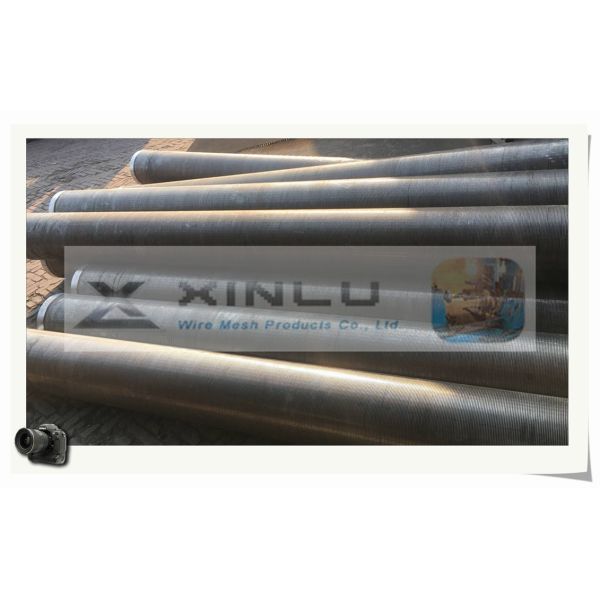

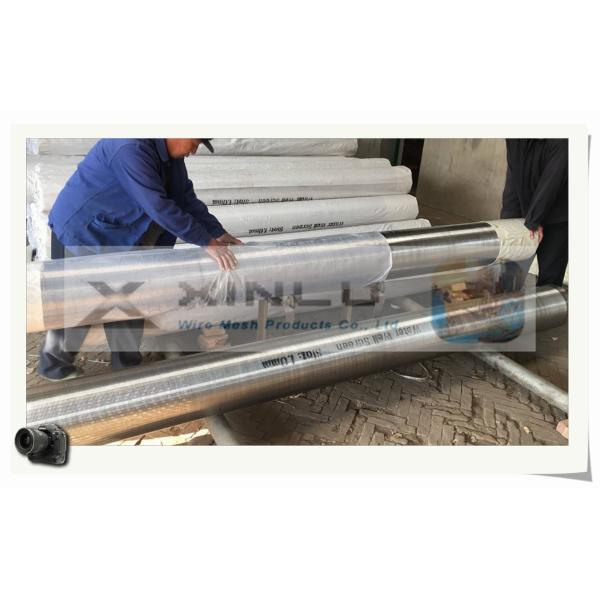

Stainless Steel 205 / 304 / 316 / 316L Slot Water Well Johnson Screen Pipe

Product Description:

Stainless Steel 205 / 304 / 316 / 316L Slot Water Well Johnson Screen Pipe is made by winding cold-rolled wire, approximately triangular in cross section, around a circular array of the longitudinal rods. The wire is attached to the rods by welding, producing rigid one-piece units having high strength characteristics at minimum weights.The wire is attached to the rods by welding, producing rigid one-piece units having high strength characteristics at minimum weights.There is a fixed value slot between each v wire, and the continuous slot, designed to provide maximum open are to reduce entrance velocity, increase hydraulic efficiency and promote more effective development.

Specification:

Regular Specifications:

Characteristic:

Not easy to jam

the special V shaped wire, make the hole of screen outside face is smaller than inside, so the hole is not easy to jam.

Slot even

The CNC machine tools strictly control the gap between the wire, so that the gap is even.

Strong corrosion resistance

Stainless steel 304 have the high corrosion resistance

Application:

1. Heavy oil, sand oil, light oil, SAGD, CBM, bitumen, thermal

2. Water injection, bi-modal sand, carbonates, thin pay

3. Horizontal, vertical , deviated oil and gas and water wells

OEM service:

Please tell us the specification of the wire screen you need, and we will help you to process the high quality products.

Custom range

Filter pipe material: mainly stainless steel, carbon steel galvanized, carbon steel spray or other customer requirements material.

Gap: 0.1mm-15mm, arbitrarily selected screen size to meet different construction requirements.

Diameter: 2 " 3 " 4 " 5 " 6 " 8 " 10 " 12 " 14 " 16 " 20 ". 29 mm - 1000 mm.

Length: 2.9 M, 5.85 M. Up to 6 M.

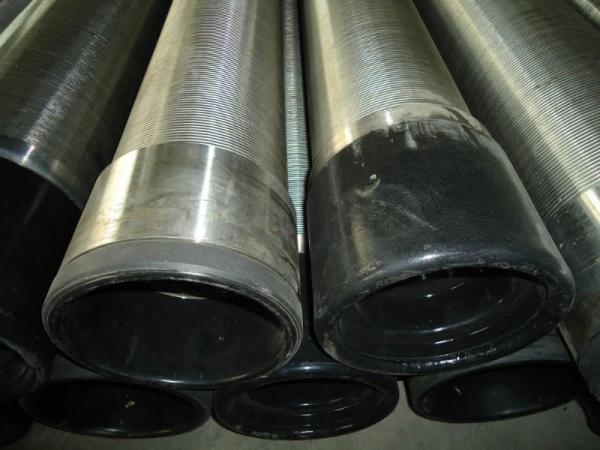

Connection form: groove connection/weld ring connection or thread connection.

Any inquiry please don't hesitate to contact us !(whatsApp+86-13315867171)

Hope we can work together soon.

Contact:feiyatrade@hotmail.com

Skype: terastar.lee

---------------------------------------------------------------------------------------------------------------

Our factory Xinlu Wire Mesh product co., Ltd located in Anping country, Hebei Province, China.

Our mainly products are: stainless steel vee sharped wire / wrap wire, johnson screeen, water well screen / rod based wire wrapped screen, wedge wire screen, reverse wedge wire screen, stainess steel strainer pipe, v wire slot tube, perfect roundness well screen pipe, dewatering well screen, dewatering screen panel, wedge wire grating, v wire flat panel, screen nozzle, water and gas strainer nozzle, stainless steel filter nozzle, wedge wire support grids, sieve bend plate, v wire screens, ARC screen, filter bottom nozzle, stainless steel lateral screens, wedge wire filter candles, Rotary drum screens, strainer cylinder, sand control well screen, oil well screen, rod basedc ontinuous slot screens, header and hub laterals & hub radial laterals etc.
