Feiya International Group Ltd Anping Branch Factory---Xinlu Wire Mesh Products Co.,ltd WATER INTAKE SCREENS

COLLECT WATER INSTEAD OF HASSLES WITH Feiya International Group Ltd Anping Branch Factory---Xinlu Wire Mesh Products Co.,ltd INTAKE SCREENS.

Although abundant, surface water can be surprisingly difficult for municipal and industrial users to capture. The challenges are numerous:

· Injuring/destroying aquatic life

· Fluctuating water depths

· Debris collection

· Installation restrictions

· Long term maintenance

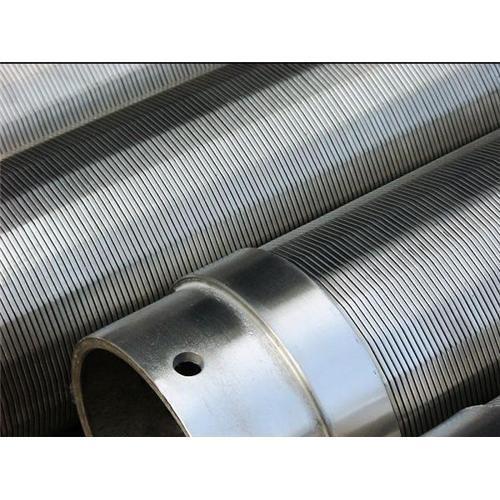

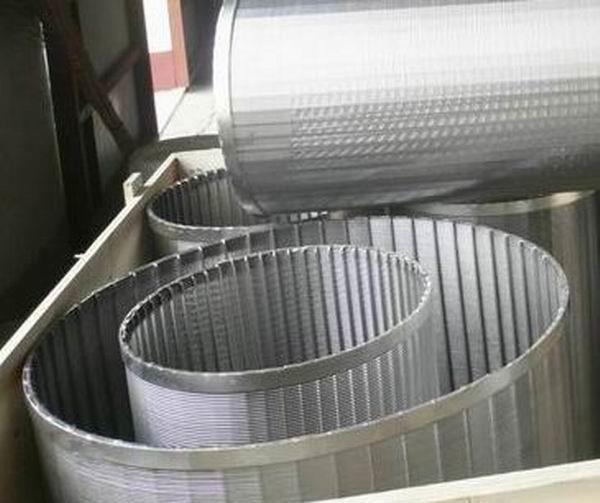

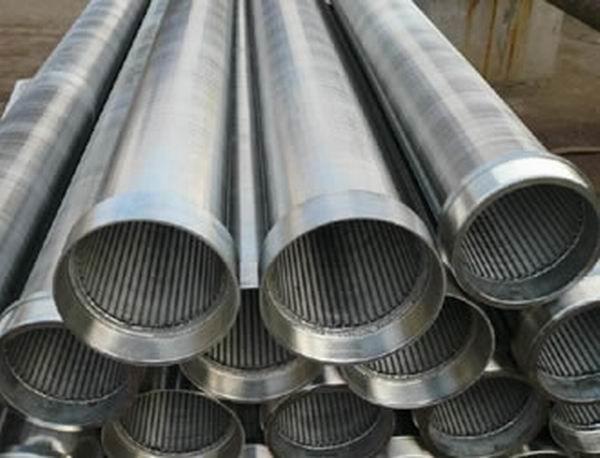

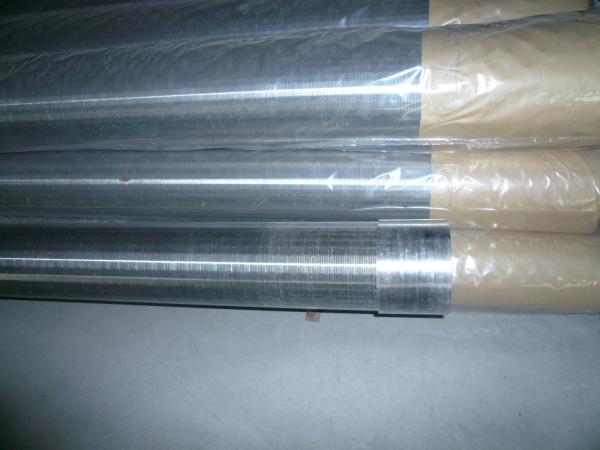

At Feiya International Group Ltd Anping Branch Factory---Xinlu Wire Mesh Products Co.,ltd Screens, we manufacture exceptional-quality passive, t-shape intake screens. All welded wedge / triangular / v /vee shaped wire screen is used as filter media. Installed parallel to the current flow, the proven design efficiently collects a consistent rate of incoming water flow without plugging or harming aquatic life.

With no moving parts to jam, clog or wear out, a Feiya International Group Ltd Anping Branch Factory---Xinlu Wire Mesh Products Co.,ltd Screens intake screen requires little to no maintenance. Meanwhile, its simplistic design can still moderate flow rates to maintain uniform levels across the entire length of the screen. This is critical to maintain average flow velocity.

In the rare event that objects or debris should ever begin collecting against the screen's outer surface, a simple backwash system can be supplied. Certain specialty treatments and materials can even also be used to prevent bio-fouling and aquatic attachments. Further, the use of 304 stainless steel wedge (v shaped) wire screen makes them usable in brackish or saltwater applications.

Specification:
1.Material: stainless steel(304, 304L, 316, 316L etc.)
low carbon, low carbon galvanized steel(LCG),

2.Diameter: Normal size is 89mm 114mm, 168mm 219mm 245mm 273mm 325mm 406mm 426mm and etc.
More size can be made according to customer's requirment

3.Slot: 0.1mm, 0.2mm, 0.5mm, 0.75mm, 1mm, 1.5mm and etc.
Also can be made as customer's requirement.

4. Length: 1-6m (2.9 or 5.8m is suitable for container loading)

Advantage:
High flow rates
Non-clogging slot
Reduction cost in operating

Data reference table:
