Ice Cream Pizza Waffle Cone Production Line CE Approved Baking Plares 260mm*240mm
Ice Cream Pizza Waffle Cone Production Line CE Approved Baking Plares 260mm*240mm
Ice Cream Pizza Waffle Cone Production Line CE Approved Baking Plares 260mm*240mm
Ice Cream Pizza Waffle Cone Production Line CE Approved Baking Plares 260mm*240mm
Specifications
Brand Name :
STARLAND
Model Number :
CBIV-45A*/CBIV-45X2A*
Certification :
CE ISO,CE Certificate,CE Approved,CE ISO9001,ISO 9001
Place of Origin :
Guangdong Guangzhou
MOQ :
1PS
Price :
negotiation
Payment Terms :
T/T
Delivery Time :
100DAYS
Packaging Details :
RAW PACK
Item :
Waffle Cone Roller Machine
Color :
Silver
Material :
Stainless Steel
Condition :
New
Voltage :
220V/380V Ice Cream Cone Machine
Description

Introduction of Automatic Ice Cream Sugar Cone Machine Pizza Waffle Cone Production Line

Good Quality Automatic Rolled Sugar Cone Making Machine/ Ice Cream Cone Machine / Pizza Waffle Cone Production Line

We produce many kinds of Automatic Ice Cream Cone Making Machine ,such as semi-automatic cone machine,automatic cone machines and ice cream cone production line.

We also have the wafer ice cream cone machines,such as for different popular shapes in china and all over the worlds.

Welcome to contact us with your cone pictures,design,size and capacity then we can talk more and suggest you the suitable ice cream cone machines.

Features of Automatic Ice Cream Sugar Cone Machine Pizza Waffle Cone Production Line

Automatic Ice Cream Sugar Cone Machine Pizza Waffle Cone Production Line is suitable for making flat mouth sugar cone length less than 120mm. Cone degree, weight, thickness and pattern spacing customized according to customer demand.

The machine is consist of baking plates, plates material is high-qualified ductile cast iron, each plates can make two cone sheets.

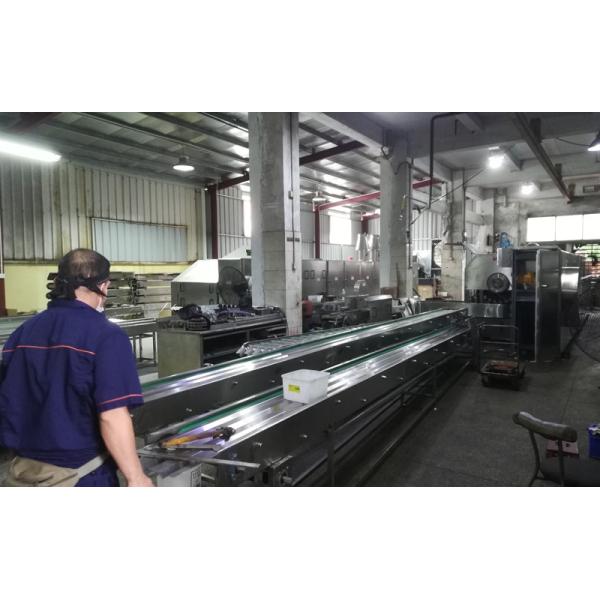

The machine is driven by the 3 phases power and backing oven is heating with gas (natural gas or liquid gas), electric ignition, oven temperature electronic display. The producing ability is very high and it is all automatic from spraying the batter, baking, forming, falling off from molds, conveying products, stacking and counting.

CBIV series and WBIV series
(Baking Plares Size:260mm*240mm;suitable for cones length between 100mm to 120mm and waffle basket)

CBIV-45A*/CBIV-45X2A* CBIV-63A*/CBIV-63X2A* CBIV-101A*/CBIV-101X2A NEW*
Number of baking plates 45 63 101
Standard Cones/hour** 4000 6000 9500-10500
Gas Consumption(kg)/hour 5-6 9-10 11-12
Machine Dimension(mm) 6800L*2400W*1800H 9000L*2400W*1800H 14000L*2300W*2000H
Machine Weight(kg) 4500 6500 10000
Main Motor specification 1.5hp;1.1kw 2.0hp;1.5kw 2.0hp;1.5kw

Ice Cream Pizza Waffle Cone Production Line CE Approved Baking Plares 260mm*240mm

Ice Cream Pizza Waffle Cone Production Line CE Approved Baking Plares 260mm*240mm

Ice Cream Pizza Waffle Cone Production Line CE Approved Baking Plares 260mm*240mmIce Cream Pizza Waffle Cone Production Line CE Approved Baking Plares 260mm*240mm

Ice Cream Pizza Waffle Cone Production Line CE Approved Baking Plares 260mm*240mmIce Cream Pizza Waffle Cone Production Line CE Approved Baking Plares 260mm*240mm
