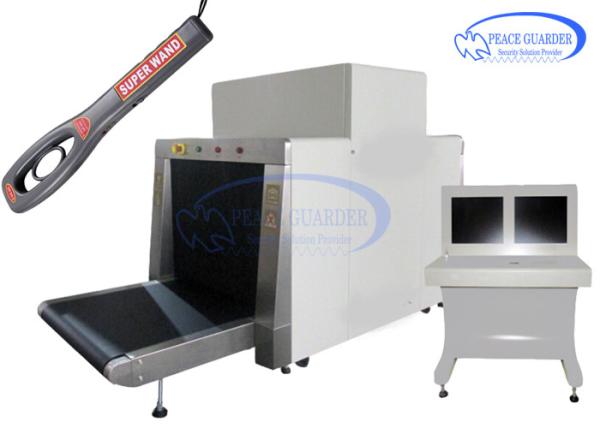

100*80 cm L-shape Xray generator X Ray Luggage Scanner with 0.22m / s conveyor speed

Competitive Advantage:

Feature

X-ray penetrate inspection, the object can be found within the metal structure, can display the naked eye
can not see where the liquid is also very obvious object display.Used in the factory testing of security
products and business units such as: electronic factories, shoe factories, toy factories, courts, railway
stations, and event bag, line security management package.

PeaceGuarder offers a modern technology to secure entry checkpoints for important locations like airports, transport terminals, buildings, schools, police stations ,and so on. Our X ray systems for baggage and parcel, to detect contraband, weapons, dangerous and illegal items. our middle size PG8065 easily accommodates the inspection of small baggage and parcels. Our X RAY SYSTEM is based on user-friendly design with ergonomic operator control panel and adjustable control panel stand. It is easy to installation and maintenance. Over 100 machines per month installed in china and abroad.

Model: PG10080

X-RAY GENERATOR

Orientation: Downward

Tube Current:0.4~1.2mA(adjustable)

Anode Voltage:100~160KV(adjustable)

Angle: 80°

Generator cooling/working periods: Sealed oil bath with forced air/100％

OPERATING ENVIRONMENT

Storage Temperature: -20oC to 60oC

Operating Temperature: 0oC to 45oC

Relative Humidity: 20 to 95% non-condensing

System Power: 220 VAC (±10%) 50±3HZ

Power wastage: 1.0 KW (Max)

Noise<58DB

X-RAY Sensor:

L-shaped array detector 24bit

Image Performance System:

Display: High-resolution 19 inch color LCD display

Color quality: 24-Bit real colors based on materials

Edge enhancement: Object contour edge is more distinct

Super image enhancement: Image detail is more distinct

High penetration display: Increase the contrast of bright area in image to make the area that is easy to penetrate appear more clearly

Low penetration display: Increase the contrast of dark area in image to make the area that is difficult to penetrate appear more clearly.

Magnifier: Partial magnifying function

Brightening/dimming: Increase/Decrease brightness of image

Image recurrence: Display the previous twenty images and process any one of them

Image restoration: Restore image to initial status

Image storage: Real-time store any image and process it in operation status

Multi-energy: High/low energy: Switch from high energy to low energy

Color material identification: Organic objects in orange, inorganic objects in blue, mixture in green Assist to detect drug and explosive powder

Special features:

Network interface: Capable of connecting to LAN, and support multi-terminal check for baggage at same time

Safety ray: Ray is transmitted under automatic control, avoiding the error

One-key shutdown control: Just rotate the key to shut down the machine; it is safety, easy and convenient

Eagle eye: Capable of expediently observing the magnifying area

Self-diagnosis function: Give message automatically if malfunction for prompt maintenance

Image Performance System:
Display: High-resolution 19 inch color LCD display
Color quality: 24-Bit real colors based on materials
Edge enhancement: Object contour edge is more distinct
Super image enhancement: Image detail is more distinct
High penetration display: Increase the contrast of bright area in image to make the area that is easy to penetrate appear more clearly
Low penetration display: Increase the contrast of dark area in image to make the area that is difficult to penetrate appear more clearly.
Magnifier: Partial magnifying function
Brightening/dimming: Increase/Decrease brightness of image
Image recurrence: Display the previous twenty images and process any one of them
Image restoration: Restore image to initial status
Image storage: Real-time store any image and process it in operation status
Multi-energy: High/low energy: Switch from high energy to low energy
Color material identification: Organic objects in orange, inorganic objects in blue,mixture in green Assist to detect drug and explosive powder
Special features:
Network interface: Capable of connecting to LAN, and support multi-terminal check for baggage at same time
Safety ray: Ray is transmitted under automatic control, avoiding the error
One-key shutdown control: Just rotate the key to shut down the machine; it is safety, easy and convenient
Eagle eye: Capable of expediently observing the magnifying area
Self-diagnosis function: Give message automatically if malfunction for prompt maintenance

Applications:

• Airports
• Transport terminals
• Buildings
• Factories (to find needle in clothing, shoes, bags)
• Courthouses
• Embassies
• Military installations
• Prisons
• Hotels
• Schools
• Convention centers
• Security checkpoints
• Special events location

Competitive Advantage:
Integrated, cost Effective, Turn-Key Security
Fit for small Baggage and Parcel Security Inspection.
Increased detection capability
Friendly interface for ease-of-use
Reliable performance and uncompromising value
