Introduction of x ray television systems :
X-ray television installations (introscopes) are designed for non-contact inspection of baggage and carry-on baggage, detection of attempts to carry prohibited and undeclared items to the facility, as well as protection against theft of inventory items. X-ray television equipment is one of the most demanded technical means of inspection of baggage and hand luggage, mail, containers and vehicles.
This equipment is used:
at transport infrastructure facilities (railway stations, airports, sea and river terminals, bus stations, metro);
during cultural, sports and other public events;
at customs and checkpoints;
at cargo terminals and logistics centers ;
at large industrial enterprises ;
at strategic and critical sites;
at the entrance groups of office centers .
We offer a wide range of models and functionality of SECURINA Detection inspection equipment meets any customer needs and the highest detection standards.

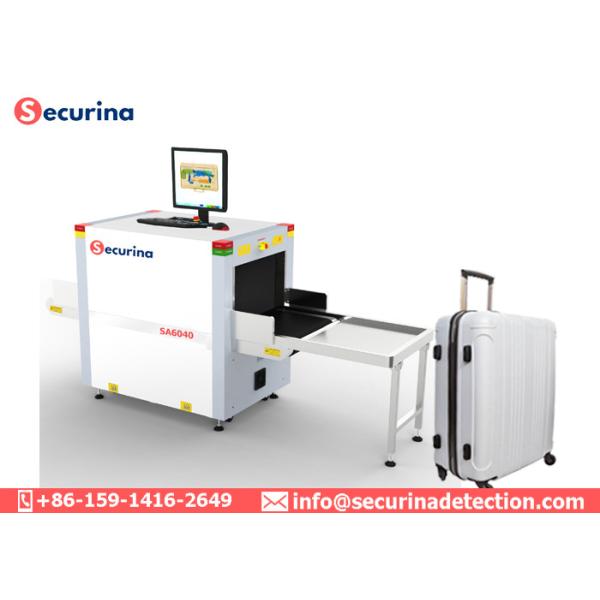

SA6040 x ray television systems specifications:
Tunnel Size | 600(W)*400(H)mm |
Conveyor Speed | 0.22m/s |
Conveyor Max Load | 170kg |
Dose per Inspection | <2.9μ Gy/h |
Resolution | <0.101mm Metal Wire |
Spatial resolution | Level: Dia1.0mm, Vertical: Dia1.3mm |
Penetrate resolution | Dia 0.511mm |
Penetration | 30-32mm steel |
Film Safety | Guarantee ISO1600 Film |
X-ray Leakage | <0.5 μ Gy/h (at a distance of 5cm From external housing) |
Image System : | |
Technical Principle | Dual-energy X-ray Imaging; L Shaped Array |
X-ray Sensor | L-Shaped Photodiode Array (multi-energetic) |
Monitor | High Resolution Color, LCD Accord, 17inch |
Image Display | High resolution of 1024 * 1280 pixel; Image Grey Level: 65536 |
Image Enhancement | 1-64times enlargement continuity, Color/BW, negative, high/low penetration, organic /inorganic Stripping, general enhancement, and pseudo color, etc. |
Image Recall: | All preceding images recallable, retrieval. |
Explosives & Narcotics Detection | Explosives & narcotics alarm and highlight according to atomic number signature |
High Density Region Alarm | Impenetrable region alarm and highlight, for possible concealing of threats and contrabands |
Image Archive | Up to 100,000 images stored automatically, enable transferring to USB disk, and converting to JPG, BMP and other general formats |
Miscellaneous Functions | Time/date display, counters, user management, system-on/X-ray-on timers, power on self test, built-in diagnostic facilities, dual-direction scanning, system log, system standby and stimulant training,etc |
Network Applications | Multiple remote applications available based on Ethernet LAN and windows platform, such as image centralized storage and identify, recheck workstation, and network TIP, etc ( Optional) . |
Images process | 24bit real time processing ,4colors analysis, Images displayed marked date and ID NO ,Count the number of bags ,Memory gray level:65536 |
Operating Environment: | |
Operation temperature/Humidity | 0ºC-40ºC/10%-95%(non-condensing) |
Storage Temperature/Humidity | -20ºCto 60ºC/ 5%-95%(non-condensing) |
Operation Power | 220VAC(±10%)50±3Hz (Optional: 100VAC,110VAC,120VAC,200VAC) |
Power Consumption | 1.0KW (max), 0.7KW(working) |
Noise | <58db |
Scanner Dimensions (L×W×H) | 2007.5mm x868mm x1314 mm |
Gross Weight | 600kgs |
Packing Volume | 3.5 CBM |
X-ray Generator: | |
Anode Voltage | 140kv |
Anode Power | 0.35 MA |
Generate angle | 80 degree upward |
Brand | Chinese Brand |
Generate direct | from bottom to top |
Cooling / Duty Cycle | Oil Cooling /100 |
FAQ
How many days we can get the machine after payment?
Normally, the equipment in stock only needs 3-5 days. If there is no inventory, it will take 10-15 days to produce. We will provide sea transportation, air transportation and other modes of transportation according to your needs
Securina professional in manufacturing:
1. Airport security screening equpiments, like x-ray baggage scanner, walk through metal detectors, handheld metal detector, under vehicle surveillance system, search camera, search mirror, liquid scanner, explosive detector, bomb blanket, bomb container, explosion suppression device, etc.
2. Industrial metal detector, conveyor metal detetor, food metal detector, nail detector, needle detector for quality control in factory.
