5030A Pseudo Color Image X-ray Security Screening Systems Baggage Scanners with 80KV X-ray Generator

X-ray Security Screening Systems Introduction:

Securina x-ray security screening systems use low dose penetrating radiation to detect metallic and non-metallic objects hidden under clothing or body cavities. The way to judge the capability of an x-ray scanner or x-ray baggage scanner is to look for what it can offer your staff and facility.An X-Ray machine offers a simple solution for security personnel to scan the interior of bags and other items.

X-ray Security Screening Systems Operating Environment​:

Operating temperature: 0℃-40℃

Operating Humidity: 10%-95% (non-condensing)

Storage Temperature: -20℃to 60℃

Storage Humidity: 5%-95% (non-condensing)

Operation Power: 220VAC (±15%) 50±3Hz (Optional: 100VAC,110VAC,120VAC,200VAC)

Power Consumption: 1.0KW (max), 0.7KW (working)

X-ray Security Screening Systems Technical Parameter:

X-ray Security Screening Systems other Specifications:

X ray Dose per inspection: <0.1.25μSv

Wire Resolution: 38 AWG typical

Spatial resolution Level: dia1.3mm,Vertical: dia1.6mm

Penetration: 8-10mm steel

Penetration Resolution: Guarantee 32AWG

Film Safety: Guarantee ASA/ISO1600 Film

X-ray Leakage: <2.0 μSv/h (at a distance of 5cm From external housing)

Cooling / Duty Cycle: Oil Cooling /100%

Detect PCB board: UK brand Sensortech

Extension Rollers: customize size length

UPS: 15mins, 30mins, 60mins etc, optional

X-ray Security Screening Systems Generator:

Anode Voltage: 80kv

Anode power: 0.35mA

Generate angle: 80 degree upward

Brand: Made in China

Generate direct: from bottom to top

About Securina:

Securina is professional manufacturer, factory, exportor, Chinese supplier for metal detectors and security scanner equipments.

The complete range of security inspection system are walk through metal detector, x-ray baggage scanner, handheld metal detector, UVSS, Under Vehicle Inspection Camera and Mirror, Food conveyor metal detector and tyre killer, road blocker, hydraulic bollards.etc

Securina system already supplied to South Africa, Zimbabwe, Nigeria, Cameroon, Sierra Leone, Liberia, Ghana, Malawi, Seychelles, Gambia, Kenya, Ethiopia, Eritrea, Somalia, Lesotho, Swaziland, Sudan, Uganda, Tanzania, Zambia, Namibia, Botswana, St. Helkina.etc African markets.

Also cooperated with customer from Russia, Ukraine, Belarus, Estonia, Latvia, Lithuania, Moldavia, Georgia, Armenia, Azerbaijan, Kazakhstan, Uzbekistan, Kyrgyzstan, Turkmenistan, Tajikistan.etc

Exporting to Albania, Andorra, Austria, Belarus, Belgium, Bosnia & Herzegovina, Bulgaria, Croatia, Cyprus, Czech Rep., Denmark, Estonia, Iceland, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Latvia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Malta, Moldova, Monaco, The Netherlands, Norway, Poland, Portugal, Romania, Russia, San Marino, Serbia & Montenegro, Slovakia, Slovenia, Spain, Sweden, Switzerland.etc

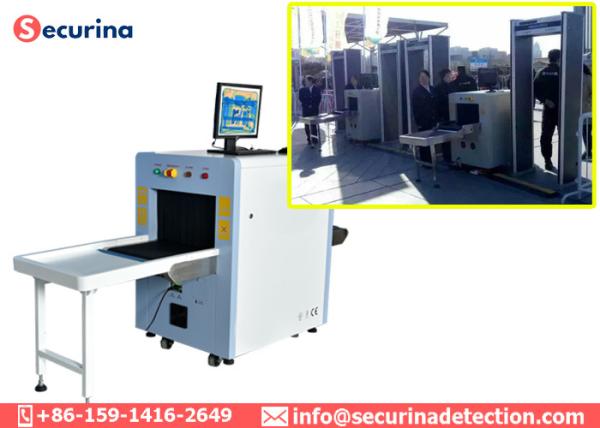

X-ray Security Screening Systems SA5030A Pictures:
