SA5030A Single-energy Parcel and Baggage Inspection X Ray Security Scanner for Hotels and Church

X Ray Baggage Scanner Technical Parameter:

X Ray Security Scanner other Specifications:

X ray Dose per inspection: <0.1.25μSv

Wire Resolution: 38 AWG typical

Spatial resolution Level: dia1.3mm,Vertical: dia1.6mm

Penetration: 6-8mm steel

Penetration Resolution: Guarantee 32AWG

Film Safety: Guarantee ASA/ISO1600 Film

X-ray Leakage: <2.0 μSv/h (at a distance of 5cm From external housing)

Cooling / Duty Cycle: Oil Cooling /100%

Detect PCB board: UK brand Sensortech

Extension Rollers: customize size length

UPS: 15mins, 30mins, 60mins etc, optional

X-ray Generator:

Anode Voltage: 80kv

Anode power: 0.35mA

Generate angle: 80 degree upward

Brand: Made in China

Generate direct: from bottom to top

X Ray Baggage Scanner Operating Environment​:

Operating temperature: 0℃-40℃

Operating Humidity: 10%-95% (non-condensing)

Storage Temperature: -20℃to 60℃

Storage Humidity: 5%-95% (non-condensing)

Operation Power: 220VAC (±15%) 50±3Hz (Optional: 100VAC,110VAC,120VAC,200VAC)

Power Consumption: 1.0KW (max), 0.7KW (working)

X Ray Security Scanner Markets:

Our security screening systems have been exported to overseas for more than 10 years.

The products have been exported to Europe, South America, Africa, Middle East, Asia,

and in Spain, Turkey, Saudi Arabia, United Arab Emirates, Colombia, Peru, Nigeria, Kenya, Russia,

Kazakhstan, Pakistan, Philippines, Malaysia have established joint after-sales service centers.

Securina is equipped with sufficient inventory and fast delivery time in 5-7 working days.

X Ray Security Scanner Image Process :

1. Image Enhancement: 1-32times enlargement continuity, negative,general enhancement,etc

2. Image Recall: All preceding images recallable, retrieva

3. High Density Region Alarm: Impenetrable region alarm and highlight,

for possible concealing of threats and contrabands

4. Threat Image Projection: Inserting fictional, but realistic images of threat items into

baggage during screening operation, for maintenance of vigilance, as well as training and

assessment of image identification capability

5. Image Archive: Up to 100,000 images stored automatically, enable transferring to USB disk, and

converting to JPG

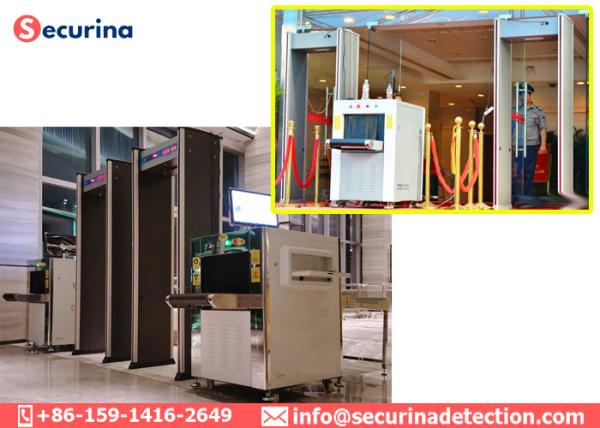

X Ray Security Scanner Product Pictures:
