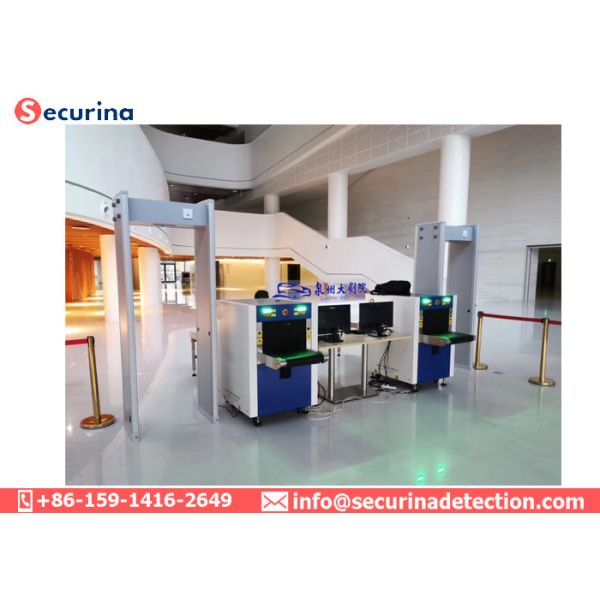

668mm Height 80kv X Ray Baggage Scanner Introscope For Security
668mm Height 80kv X Ray Baggage Scanner Introscope For Security
668mm Height 80kv X Ray Baggage Scanner Introscope For Security
668mm Height 80kv X Ray Baggage Scanner Introscope For Security
Specifications
Brand Name :
Securina
Model Number :
SA5030
Certification :
FCC-SDoC, CE
Place of Origin :
Guangdong, China
MOQ :
1 set
Price :
$4999 - $29999/set
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
5000 sets/month
Delivery Time :
5-10 working days after payment confirmation
Packaging Details :
Carton or wooden case
X-ray generator :
80KV voltage
Tunnel Size :
500mm×300mm
Conveyor Speed :
0.22m/s
Conveyor height :
668mm
Conveyor Max Load :
60kg
OEM/ ODM :
Accepted
Description

80-140kv Voltage Generator X-Ray Introscope Television Inspection System For Security


The security screening unit(X-ray television installation Inspector) is used at airports, train stations, and other places with a large crowd of people, where there may be a danger of a terrorist attack. Modern X-ray inspection equipment displays a double image, which allows you to get a more accurate picture of the contents of the scanned item. In this case, it does not matter in what position the object under investigation is located, since the inspection X-ray installation scans it from all sides at once.

When using stationary screening X-ray systems, it is not necessary to change the position of the object, therefore the check does not take much time, and the throughput during the screening increases.

The X-ray inspection complex is equipped with a movable console and a remote control panel. All information about the check is displayed on the monitor, which is always in front of the operator's eyes. The structure can be moved from place to place, and it can be folded to pass through narrow openings.

X-Ray Introscope Television Inspection System Specifications:

General Specification
Tunnel Size 500(W)*300(H)mm
Conveyor Speed 0.22m/s
Conveyor Max Load 150kg
Dose per Inspection <1.4Gy/h
Resolution 34AWG to 40AWG
Spatial resolution Level dia1.0mm
Vertical dia1.0mm
Penetrate resolution 24WG to 34AWG
Penetration 30mm to 40mm Steel
Film Safety Guarantee ISO1600 Film
X-ray Leakage <0.1 μGy/h (at a distance of 5cm From external housing)
X-ray Generator
Generate direct Upward
Generate anger 80 degree
Anode Voltage 80Kv
Anode power 0.4 to 1.2mA
Cooling / Duty Cycle Oil Cooling /100%

668mm Height 80kv X Ray Baggage Scanner Introscope For Security
