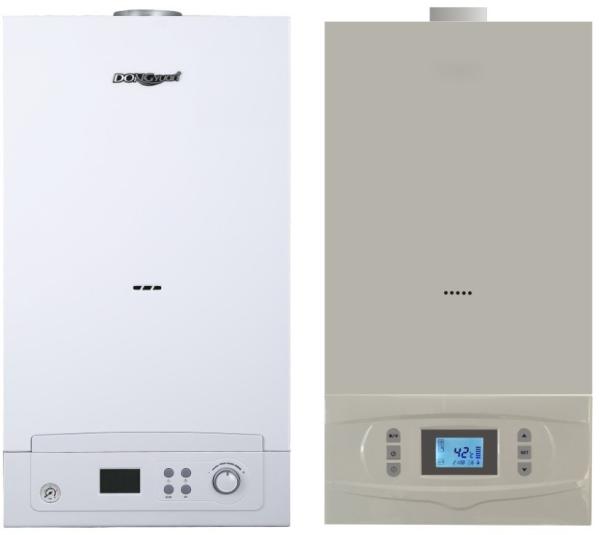

Environmental Protection Wall Hung Gas Boiler , Gas Type NG / LPG
Environmental Protection Wall Hung Gas Boiler , Gas Type NG / LPG
Environmental Protection Wall Hung Gas Boiler , Gas Type NG / LPG
Environmental Protection Wall Hung Gas Boiler , Gas Type NG / LPG
Specifications
Brand Name :
Dongyuan
Model Number :
L1PB18-HI
Certification :
ISO14001,ISO9001,OHSAS18001
Place of Origin :
China,Shunde
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, D/A
Supply Ability :
10000pcs per month
Delivery Time :
30days after receiving the deposit
Packaging Details :
Each product in plastic bag which comes with the product instructions and foam packaging, then carton packaging outside with another thicker plastic bag.Each product in plastic bag which comes with the product instructions and foam packaging, then carton p
Gas type :
NG or LPG
Structure :
Water Tube
Burning Style :
Radiator
Function :
Hot Water Boiler
Usage :
Home
Description

Gas Central heating Environmental Protection For Heating And Domestic Hot Water Gas Boiler
Technical data
Electric Power(W) 110 110 110 110
Gas Type NG/LPG
Rated Gas Pressure(Pa) 2000/2800
Power Supply 20-50HZ
Model Number L1PB18 LIPB20 L1PB24 L1PB28
Rated Gas Input(kw) 18 20 24 28
Rated Gas Output(kw) 15.9 17.6 21.1 24.7
Heating Area(㎡) 70-140 80-160 100-200 160-260
Lift Of pump(m) 5 5 5 6
Expansion Tank Capacity(L) 6 6 6 8
Application Water Pressure(Mpa) 0.1-0.3
Efficiency Under Rated Heat Input(%) Above 88%
Temp.Range Of Heating Water(℃) Radiator:30-80 Floor Heating:30-60
Preset Pressure Of Expansion Vessel(Mpa) 0.1
Water Circulation Type Airtight Forced Circulation
Applicative Water Pressure(mpa) 0.03-0.8
△T=25℃ Hot Water Supply(kg/min) 9 10 12 14
△T=30℃ Hot Water Supply(kg/min) 7.5 8.3 10 11.7
The Minimum Closed Flow(L/min) 1.6
Connections(mm) For Gas&Heating Water Pipes:G3/4 For DHW Pipes:G1/2
The Minimum Starting Flow (L/min) 2
Temp.Range Of DHW Supply(℃) 30-60
Air Input/Exhaust Duct(mm) φ60/φ100
Sparated Input/Exhaust Duct(optional) φ80/φ100
The length Of Flue Dust(m) 1
Noise On Working(DB) ＜42
Exhaust Type Forced Exhaust
Ignition Type Integrated Automatic Ignition
Temperature Control Gas Proportional Adjustment
