Black LPG Wall Hung Gas Boiler With Temperature Control
Black LPG Wall Hung Gas Boiler With Temperature Control
Specifications
Brand Name :
Dongyuan
Model Number :
L1PB24-NS03
Certification :
ISO14001,ISO9001,OHSAS18001
Place of Origin :
China,Shunde
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000pcs per month
Delivery Time :
30days after receiving the deposit
Packaging Details :
ach product in plastic bag which comes with the product instructions and foam packaging, then carton packaging outside with another thicker plastic bag.
Installation :
Wall Mounted
Housing material :
Stainless Steel
Power (w) :
24000
Gas type :
LPG / NG
Usage :
Bath & Heating,Water Heating,Gas Home Appliance
Color :
White or Grey
Use :
Bathroom,Outdoor or kitchen
Function :
Remote Controlled
Display :
LED Displayer Optional
Gas heater type :
gas boiler
Advantage :
Energy Save
Description

Black LPG Wall Hung Gas Boiler With Temperature control

PRODUCT DESCRIPTION

- Gas flow proportional control,provide sable heating temperature.
- Multiple automatic protections.
- With selecable device of indoor thermostat, the indoor temperature would be set freely and 20% energy saving.
- Water flow and temperature double control, provides stable domestic hot water temperature.
- LCD display showing the actual working condition.
- Fashionable flat panel design, easy to operate.
- Solid chamber structure design reduces combustion noise.
- With selectable device of huge volume water tank to safety variety of requests for hot water.
- Proportional controlling of gas flow, and heating with frequency conversion.
- Micro-computer control and self-inspection system.

PRODUCT DISPLAY

Black LPG Wall Hung Gas Boiler With Temperature Control

TECHNICAL DATA

Model Number L1PB20 L1PB24
Gas Type NG/LPG
Rated Gas Pressure(Pa) 2000/2800
Rated Gas Input(kw) 20 24
Rated Gas Output(kw) 17.6 21.1
Efficiency Under Rated Heat Input(%) Above88%
Power Supply 20-50HZ
Electric Power(W) 110 110
Temp.Range Of Heating Water(℃) Radiator:30-80 Floor Heating:30-60
Heating Area(㎡) 80-160 100-200
Lift Of pump(m) 5 5
Application Water Pressure(Mpa) 0.1-0.3
Expansion Tank Capacity(L) 6 6
Preset Pressure Of Expansion Vessel(Mpa) 0.1
Water Circulation Type Airtight Forced Circulation
△T=25℃ Hot Water Supply(kg/min) 10 12
△T=30℃ Hot Water Supply(kg/min) 8.3 10
Temp.Range Of DHW Supply(℃) 30-60
Applicative Water Pressure(mpa) 0.03-0.8
The Minimum Starting Flow (L/min) 2
The Minimum Closed Flow(L/min) 1.6
Connections(mm) For Gas&Heating Water Pipes:G3/4 For DHW Pipes:G1/2
Air Input/Exhaust Duct(mm) φ60/φ100
The length Of Flue Dust(m) 1
Exhaust Type Forced Exhaust
Ignition Type Integrated Automatic Ignition
Temperature Control Gas Proportional Adjustment

MAIN COMPONENTS

Black LPG Wall Hung Gas Boiler With Temperature Control

COMPANY PROFILE

Black LPG Wall Hung Gas Boiler With Temperature Control

ABOUT US

In order to meet the demand of heating market, Foshan Shunde Dongyuan gas appliances Ind. Co.,Ltd as a professional wall hung gas boiler , gas water heater manufacturer was established in 2007 and start to develop the overseas market from 2010 , and recognized as “ China High-tech enterprise” in 2017. We move to the new factory in 2018, and named Foshan Dongyuan Thermal Technology Co., Ltd.

With an area of 14,000 square meters, Foshan Dongyuan Thermal Technology Co., Ltd. have five fully automatic production lines with an annual capacity of 500,000 pieces ,have 8 engineers with 26 years R&D experiences . With the powerful and skillful work team, rigid production and quality control ,DONGYUAN success to obtain the ISO9001, ISO14001 certificate, our boilers and water heater hot sale well all over the world, especially in Russia, Iran, Azerbaijan, Uzbekistan, Israel and other European,Southest Asia and South America, etc.

From mold design and material development to precision machining and products finishing, DONGYUAN exercises strict quality control on each production stage, not only produce traditional wall-mounted gas boiler, flue type and force type gas water heater , but also develop condensing gas boiler with thermal efficiency up to 105% , and the balanced type gas water heater .

DONGYUAN will continue its effort to create high quality product and serve the customers from all over the world, to earn co-prosperity and mutual interest.

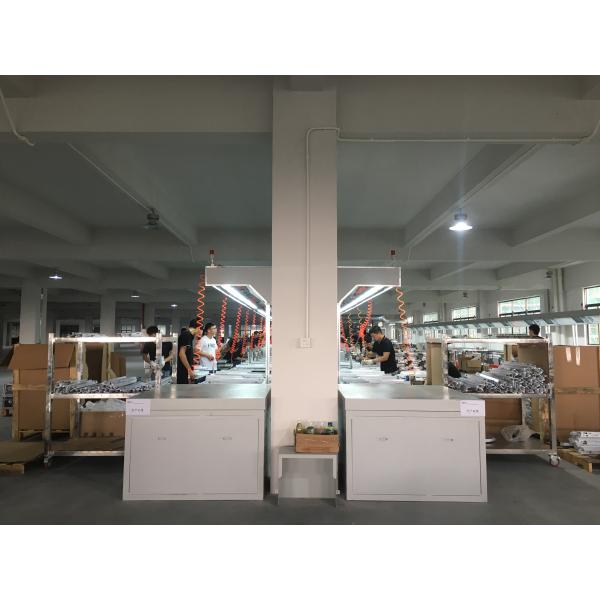

ASSEMBLU LINE

Black LPG Wall Hung Gas Boiler With Temperature Control

Black LPG Wall Hung Gas Boiler With Temperature Control

Black LPG Wall Hung Gas Boiler With Temperature Control
