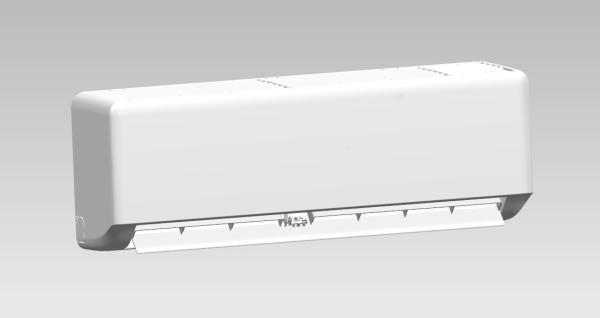

VA Panel 24000BTU Air Conditioner Wall Mounted Split Type 60hz 220V R410a
VA Panel 24000BTU Air Conditioner Wall Mounted Split Type 60hz 220V R410a
Specifications
Brand Name :
Yuetu or OEM
Model Number :
24000Btu
Certification :
CE/CB
Place of Origin :
CHINA
MOQ :
100
Price :
$100
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000pcs/month
Packaging Details :
Factory Standard
Conncet Pipe :
100% Copper Pipe
Compressor :
GMCC/Gree/Highly
Fan Motor :
Welling
Indoor Dimension :
1080mm
Outdoor Dimension :
900mm
Name :
Air Conditioner Wall Mounted
Description

VA Panel 24000BTU Air Conditioner Wall Mounted Split Type 60hz 220V R410a

VA Panel 60hz 220V R410a On-Off 24000BTU Heating& Cooling High Quality Wifi Control Aircon Board Mounted Split Type AC

Wall-mounted air conditioner location: usually called split air conditioner, it is not restricted by the installation location, and it is easier to match with the interior decoration.

Function: less noise, some split air conditioners have multiple purification functions, which can purify indoor air, and split air conditioners with ventilation function to maintain health

Product 24000 BTU
Cool/Heat Cooling & Heating
Type ON/OFF
Capacity Cooling (W) 6800
Heating (W) 7000
EER W/W 2.8
COP W/W 3.0
Noise Level IDU db(A) 46
ODU db(A) 55
Net Dimension IDU (mm) 1080*327*227
ODU (mm) 820*300*600
Packing Dimension IDU (mm) 1135*390*293
ODU (mm) 910*395*635
Gross Weight IDU (kg) 16.5
ODU (kg 46
Pipe Size Liquid φmm (inch) φ6 (1/4)
Gas φmm (inch) φ12 (1/2)
Loading Quantity Set/40Hq 181

Generally, it includes cold source/heat source equipment, cold and hot medium transmission and distribution system, terminal equipment and other auxiliary equipment. It mainly includes refrigeration host, water pump, fan and piping system. The terminal device is responsible for using the cold and heat from the transmission and distribution to specifically process the air condition so that the air parameters of the target environment meet certain requirements.

Wall-mounted air conditioners are widely welcomed by everyone, and the technology is constantly innovating. You should pay attention to comparing the functional differences of each brand.
