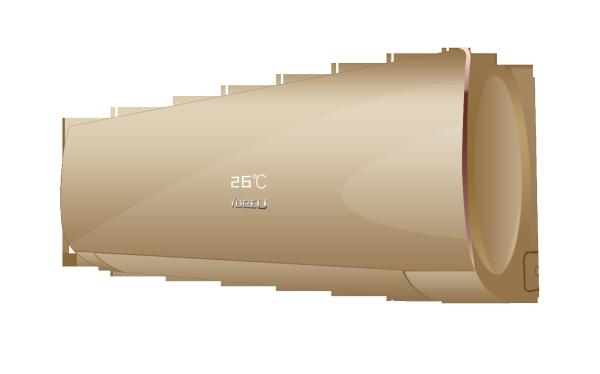

Oem 18000btu Wall Type Inverter Aircon Wall Hanging Ac Units Gmcc
Oem 18000btu Wall Type Inverter Aircon Wall Hanging Ac Units Gmcc
Oem 18000btu Wall Type Inverter Aircon Wall Hanging Ac Units Gmcc
Oem 18000btu Wall Type Inverter Aircon Wall Hanging Ac Units Gmcc
Specifications
Brand Name :
Yuetu or OEM
Model Number :
18000Btu
Certification :
Yes
Place of Origin :
CHINA
MOQ :
100
Price :
$100
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000pcs/month
Packaging Details :
Factory Standard
Conncet Pipe :
100% Copper Pipe
Compressor :
GMCC/Gree
Fan Motor :
Welling
Brand :
OEM/Yuetu
Name :
wall type inverter aircon
Description

OEM 18000BTU Wall Type Inverter Aircon Wall Hanging Ac Units GMCC

UA Panel Inverter 220V R410a/R32 18000BTU Cooling Only High Quality Wifi Control PCB 3 Year Warranty Split AC GMCC/GREE

Wall Type Inverter Aircon includes cold source/heat source equipment, cold and hot medium transmission and distribution system, terminal equipment and other auxiliary equipment. It mainly includes refrigeration host, water pump, fan and piping system. The terminal device is responsible for using the cold and heat from the transmission and distribution to specifically process the air condition so that the air parameters of the target environment meet certain requirements.

Specifications
INVTER 18K
825X(φ7×1)+700φ7×1)
Type Cooling only
Control type remote
Rated cooling capacity Btu/h 8871
W 2600
Rated heating capacity Btu/h /
W /
EER for cooling W/W 3.2
COP for heating W/W /
Moisture removal Liters/h 1
Pressure High(DP) MPa 4.5
Low(SP) MPa 1.9
Indoor noise level at cooling SUPER dB(A) /
High dB(A) 41
Med dB(A) 39
Low dB(A) 37
MUTE dB(A) /
Outdoor noise level dB(A) 51
Electrical Data
Power supply 220-240V/60Hz
Voltage Range V 187~264
Rated current Cooling A 5.3
Heating A /
Rated input Cooling W 1175
Heating W /
Max Current Cooling A 13
Heating A /
Max Power input Cooling W 2750
Heating W /
Refrigerating System
Refrigerant/Charge Gram R410A/420g
Compressor Model KSK103D53UFZ
MFG GMCC
Type Rotary
Connections
Connecting Pipe Gas Inches Φ9.52(3/8'')
Liquid Inches Φ6(1/4'')
Connecting Wiring Size x Core number 1.5*5
Drainage Pipe O.D 16mm
Others
Suitable area m2
Net dimensions (W x H x D) Indoor mm 825*290*195
Outdoor mm 700*540*255
Net weight Indoor kg 9
Outdoor kg 31
Packing dimensions (W x H x D) Indoor mm 885×359×276
Outdoor mm 815×350×600
Gross weight) Indoor kg 8.5
Outdoor kg 27

Maintenance

Maintenance before starting up

Generally, household air conditioners are turned off in September and then turned on from May to June of the following year. They will not be used for more than half a year. Therefore, a comprehensive "diagnosis" must be done before the air conditioner is turned on to check whether the air conditioner is "faulty". According to the results of the inventory, under the guidance of professional and technical personnel, do a good job of maintenance and cleaning. This time, the maintenance and cleaning should be more in place. Including the casing, body, and filter of the outdoor unit and the indoor unit, and then start trial operation to observe the cooling speed and effect.

cleaning method

The cleaning of the air conditioner should include three parts:

First, the casing and exposed parts of the air conditioner body, which are easily contaminated parts;

Second, filter cleaning is the most important part of the core;

Third, the condenser and evaporator part
