Specifications
Brand Name :
Yuetu or OEM
Model Number :
36000Btu
Certification :
CE/CB
Place of Origin :
CHINA
MOQ :
100
Price :
$100
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000pcs/month
Packaging Details :
Factory Standard
Conncet Pipe :
100% Copper Pipe
Compressor :
GMCC/Gree
Fan Motor :
Welling
Name :
Air Conditioner Outdoor Unit
Panel :
BC Panel
Volt :
220V
Description

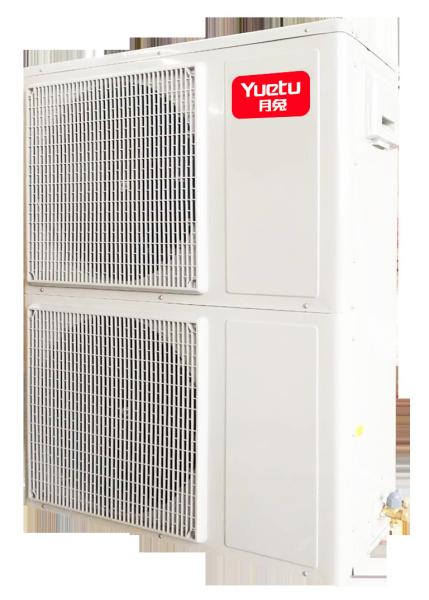

BC Panel Inverter 30000BTU Air Conditioner Outdoor Unit Low Noise 220V R410a

BC Panel Inverter 220V R410a 30000BTU Cooling Heating High Quality Wifi Control PCB 3 Year Warranty Stand AC GMCC/GREE

- The outdoor unit must be installed firmly to reduce vibration and noise. There must be enough space in front of the suction and exhaust vents of the condenser for ventilation. If the wind is blocked, the condensation pressure will increase and it will cause shutdown;

- There should be no obstacles in front of the indoor unit, otherwise the wind will be affected;

When the air conditioner is running for rapid cooling, the selector switch can be adjusted to the high gear, and after the temperature drops, it can be adjusted to the medium-speed low gear;

- The ventilation switch can be used for the ventilation of the window air conditioner, but the ventilation time should not exceed 15 minutes;

- The outdoor unit of split type air conditioner cannot be inserted with sticks, otherwise the fan will be stuck or damaged

- After the air conditioner is stopped, it must be restarted after three minutes to protect the compressor;

12000BTU
Model No. TAC-12CS/Z
KF-35GW
indoor 820(Φ7×2)+outdoor 780(Φ7.94×1)
Type cooling only
Control type
Rated cooling capacity Btu/h;W 11535;3381
Rated heating capacity Btu/h;W N.A
EER for cooling Btu/h.w; W/W 2.7
COP for heating W/W N.A
Moisture removal Liters/h 1.3
Pressure High(DP) MPa 2.6
Low(SP) MPa 1
Indoor noise level at cooling High dB(A) 41
Med. dB(A) 37
Low dB(A) 24
Outdoor noise level dB(A) 52
Power supply
Voltage Range V 198~242
Rated current Cooling A 5.8
Heating A N.A
Rated input Cooling W 1253
Heating W N.A
Annual energy consumption kwh (cooling)
Max Current Cooling A 9.8
Heating A N.A
Max Power input Cooling W 1790
Heating W N.A
Refrigerant/Charge Gram R22
Compressor Type Rotary
Model C-RV212H92CB/QX-B217E030A
LRA A /
MFG SANYO/GREE
Indoor air circulation(Cooling/Heating) m3/h 530
Indoor fan type Cross Flow
Indoor fan speed H/M/L Cooling rpm 1290/1150/900
Heating rpm N.A
Dry rpm 900
Sleep rpm 900
Indoor fan motor output W 13
Outdoor fan type Propeller
Outdoor fan speed rpm 850
Outdoor fan motor output W 30
Connecting Pipe Gas mm Φ12
Liquid mm Φ6
Connecting Wiring Size x Core number 1.0*3
Drainage Pipe
Suitable area m2 12~23
Net dimensions (W x H x D) Indoor mm 820x250x205
Outdoor mm 780x540x255
Net weight Indoor kg 10
Outdoor kg 31
Packing dimensions (W x H x D) Indoor mm 880*315*269
Outdoor mm 870*340*590
Gross weight Indoor kg 11
Outdoor kg 33
