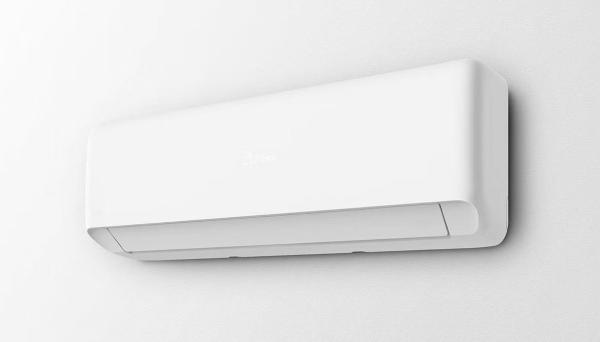

R22 50hz 220V Cooling Air Conditioner Wall Mount 12000 BTU OEM
R22 50hz 220V Cooling Air Conditioner Wall Mount 12000 BTU OEM
R22 50hz 220V Cooling Air Conditioner Wall Mount 12000 BTU OEM
R22 50hz 220V Cooling Air Conditioner Wall Mount 12000 BTU OEM
Specifications
Brand Name :
Yuetu or OEM
Model Number :
12000Btu
Certification :
CE/CB
Place of Origin :
CHINA
MOQ :
100
Price :
$100
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000pcs/month
Packaging Details :
Factory Standard
Conncet Pipe :
100% Copper Pipe
Compressor :
GMCC/Gree
Fan Motor :
Welling
Manual :
Standard English Version
Body Color :
White/Black/Golden
Name :
Cooling Air Conditioner Wall Mount
Description

R22 50hz 220V Cooling Air Conditioner Wall Mount 12000 BTU OEM

VA Panel 50hz 220V R22 On-Off 12000BTU Only Coooling High Quality AC Units Mounted Cabinet Air Cooling

Maintenance

Maintenance before starting up

Generally, household air conditioners are turned off in September and then turned on from May to June of the following year. They will not be used for more than half a year. Therefore, a comprehensive "diagnosis" must be done before the air conditioner is turned on to check whether the air conditioner is "faulty". According to the results of the inventory, under the guidance of professional and technical personnel, do a good job of maintenance and cleaning. This time, the maintenance and cleaning should be more in place. Including the casing, body, and filter of the outdoor unit and the indoor unit, and then start trial operation to observe the cooling speed and effect.

Item Product 9K
Cool/Hea Heat Pump
Climat T1
Powe 220-240V/50HZ/1P
Type On/Off
General Cooling
 Rated Capacity Btu/h / W 2350
Power Input W 959
Rated Current A 4.36
Rated EER W/W 2.45
Heating
 Rated Capacity Btu/h / W 2150
Power Input W 843
Rated Current A 3.83
Rated EER W/W 2.55
Rated Engery Star Rating / /
Moisture removal L/h 0.4
Max Input Consumption W 1155
Max current A 6.14
Refrigerant Type/ Charge g R410A/*
Air Flow Volume (Hi/Mi/Lo) m3/h 600
Indoor Noise level (Hi/Mi/Lo) dB(A) 22-24-39dB(A)
Outdoor Noise level dB(A) 49dB(A)
Indoor system Indoor fan motor
 Model RPG10C
Input W 10W
Capacitor uF 1.2uf
Speed(Hi/Mi/Lo) r/min PG
Indoor coil
 a.Number of rows 1
b.Tube pitch(a)x row pitch(b) mm 25x18.19
c.Fin spacing mm 1.35
d.Fin type (code)
e.Tube outside dia.and type mm Φ7.94,
Outdoor system Outdoor fan motor
 Model YDK24-6N3/YDK30-6Q6
Input W 30
Capacitor uF 2.5uf
Speed(Hi/Mi/Lo) r/min 850
Outdoor coil
 a.Number of rows 1
b.Tube pitch(a)x row pitch(b) mm 25*14
c.Fin spacing mm 1.35
d.Fin type (code)
e.Tube outside dia.and type mm Φ7.94,
Function Compressor
 Model QXA-B098C130A
Type R410A
Brand
Refrigerant piping Size
 Material Type
Liquid Pipe φmm (inch) φ6
Gas Pipe φmm (inch) φ9
Max. refrigerant pipe length m 15
Max. difference in height m 5
Power Cord length 1.7m
Plug type
Thermostat type Remote
Operation temperature ℃ 16～31
Room temperature
 Indoor(cooling/ heating) ℃ -5～45/----
Outdoor(cooling/heating) ℃ 16～31/----
Application area (Cooling Standard) m2 8-12
Features Display on Front Panel
LCD Wireless Remote Controller Yes
Removable and washable Panel Yes
Healthy Filter
-PHOTOCATALYTIC FILTER
-ACTIVE CARBON FILTER
-SILVER ION FILTER
-CATECHIN FILTER		 /
24 Hours Timer 24 Yes
3 Speed and Auto Indoor Fan Control Yes
Vertical Auto Swing Louver Yes
Horizontal Auto Swing Louver NO
Sleep Operation Yes
Super Function NO
Compressor Indicator NO
Auto Restart Yes
Golden Fins NO
Others Unit Dimensions WxHxD Indoor Unit mm 880*299*202
Outdoor Unit mm 600*240*435
Packing Dimensions WxHxD Indoor Unit
mm 710*340*500
Net Weight Indoor Unit kg 7.5
Outdoor Unit kg 23
Gross Weight Indoor Unit kg 9.5
Outdoor Unit kg 26
Container QTY 20’ /40'HQ 128/320
Approval

cleaning method

The cleaning of the air conditioner should include three parts:

First, the casing and exposed parts of the air conditioner body, which are easily contaminated parts;

Second, filter cleaning is the most important part of the core;

Third, the condenser and evaporator part

Precautions

- The indoor temperature cannot be adjusted too low, otherwise it is harmful to the human body, so the set temperature should be adjusted appropriately.

- If you feel the room temperature is too high, you can appropriately lower the set temperature.

Effective use of timers can achieve both energy-saving and comfortable effects.

- There should not be too many people or overcrowding in the air-conditioned room, otherwise the cooling capacity will be insufficient and the temperature will not drop;
