55 Inch Outdoor Digital Signage Displays Advertising Machine 1500-2500 Nits
55 Inch Outdoor Digital Signage Displays Advertising Machine 1500-2500 Nits
55 Inch Outdoor Digital Signage Displays Advertising Machine 1500-2500 Nits
55 Inch Outdoor Digital Signage Displays Advertising Machine 1500-2500 Nits
55 Inch Outdoor Digital Signage Displays Advertising Machine 1500-2500 Nits
55 Inch Outdoor Digital Signage Displays Advertising Machine 1500-2500 Nits
Specifications
Brand Name :
Doxi
Model Number :
DWDSVW-22
Certification :
CE/Rohs
Place of Origin :
China
MOQ :
1 pc
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
1200 pcs per month
Delivery Time :
10-15 working days after receipt of payment
Packaging Details :
Reinforced wooden export case
MTBF :
>60000Hours
Operating Temperature :
-20~55°C(Fan-Cooling); -40~55°C (Air Condition Built-In)
View Angels :
89/89/89/89
Brightness :
1500-2500Nits
Touch Options :
IR, PCAP, Touch Foil
IP Rating :
IP65/IP66
Description

To Customize 55 Inch Floor Waterproof LCD Scenic Spot HD Vertical Outdoor Advertising Machine

Specifications:

Outdoor Wall-Mounted Digital Signage LCD Display
Model Name DWDSVW-22
IP Rating IP65

Single Media Player Option

1 ×USB 2.0, 1×CF Card Slot, 1×SD Card Slot

Video Formats Supported: MP4, AVI, DAT, MPG, RM, RMVB, AVC, FLV

Audio Formats Supported: MP3, WMA, OGG, AAC, AC, DTS, FLAC, APE

Picture Formats Supported: JPEG, BMP, GIF, PNG

File Formats Supported: FAT, FAT32, NTFS

PC Systems Options
ARM Android Based RK3288(RK3368 optional) X86 Windows Based X86 Windows Based
CPU: Quad-Core Cortex-A17 1.8GHz CPU: Intel® Celeron J1900 CPU: Intel Core i3/i5/i7
Chipset: N/A Chipset: Intel® NM10 Express Chipset: Intel® HD Graphics, Support 1080p
Memory: 1G/2G Memory: 2GB(Max. 8GB) Memory: 2GB(Max. 8GB)
HDD/SSD: 8G HDD/SSD:500G/64G HDD/SSD:500G/64G
1×HDMI 1×VGA, 1×HDMI 1×VGA, 1×HDMI
1×USB 2.0 2×USB 2.0, 2×USB3.0 2×USB 2.0, 2×USB3.0
1×mini-SD slot 1×COM(RS232/422/485) 1×COM(RS232/422/485)
1×LAN 1×LAN 1×LAN
1×Audio Out 1×Audio Out, 1×MIC In 1×Audio Out, 1×MIC In
Expansion: SSD Expansion: USB, COM, Mini-PCIe Expansion: USB, COM, Mini-PCIe

LCD Panel
Screen Diagonal (Inch/cm) 55”
Display Active Screen Size (cm) 1209.6(H)×680.4(V)
Aspect Ratio 16:9
Physical Resolution 1920×1080
Maximum Resolution Supported 1920×1080
Colors 16.7M
Brightness (cd/m²) 1500 cd/m²
Contrast Ratio 3000:1
View Angels 89/89/89/89
Backlight/Backlight Lifetime LED Backlight with 50000Hours'Lifetime

Touch Panel Available for Network Version
Touch Options IR, PCAP, Touch Foil
Touch Drivers Windows, Linux, Android, Mac, Raspberry Pi

Operation
Operating Temperature Range -20~55°C(Fan-Cooling); -40~55°C (Air Condition Built-in)
Humidity Range (RH) 10-90%
24/7/365 Use Supported

Power /Speakers
Power Indicator Green LED
Power Input Internal Power Supply, AC 100V~240V

Power Consumption

Speakers

290W

2×5W


BENEFITES

  • Exceptional quality and commercial-grade outdoor reliability and performance
  • Eco-friendly, Energy-Efficient LED Backlight Technology
  • Designed with robust, corrosion protected casing to protect against the elements and the public
  • IP65 rated protecting from any wet weather conditions and waterproof over-molded connectors
  • High brightness from 1500nits to 2500nits allowing effortless legibility in direct sunlight
  • AR/AG Tempered glass fitted on front for vandal proof and optimum clarity
  • Ultra wide operation temperature range -25℃~55℃ or -45℃~55℃ supported
  • Equipped with internal air-conditioning or fan-cooling system ensuring a long and reliable lifespan
  • Landscape and Portrait mode wall-mounted flexibility
  • Pre-installed CMS management system for network version
  • Long lasting product cycle for continuity thru all phases of project

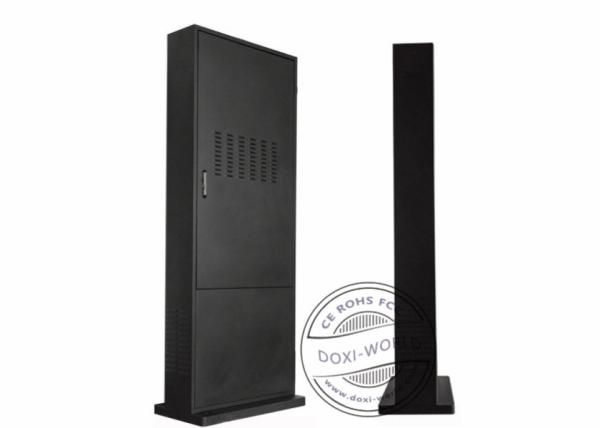

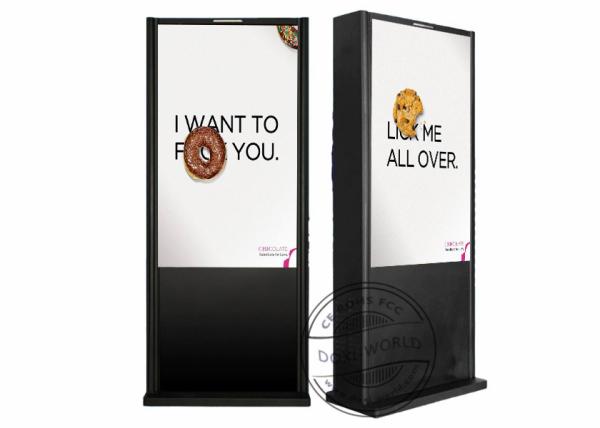

Product Display:

55 Inch Outdoor Digital Signage Displays Advertising Machine 1500-2500 Nits
