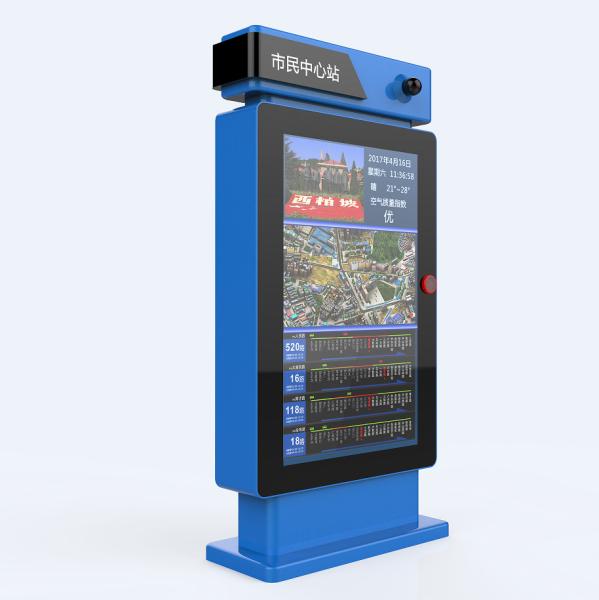

Vertical outdoor LCD video wall, ultra-thin design of commercial video wall
Vertical outdoor LCD video wall, ultra-thin design of commercial video wall
Vertical outdoor LCD video wall, ultra-thin design of commercial video wall
Vertical outdoor LCD video wall, ultra-thin design of commercial video wall
Vertical outdoor LCD video wall, ultra-thin design of commercial video wall
Vertical outdoor LCD video wall, ultra-thin design of commercial video wall
Vertical outdoor LCD video wall, ultra-thin design of commercial video wall
Vertical outdoor LCD video wall, ultra-thin design of commercial video wall
Specifications
Brand Name :
Doxi
Model Number :
DWDSVW-1
Certification :
CE/Rohs
Place of Origin :
China
MOQ :
1 pc
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
1200 pcs per month
Delivery Time :
10-15 working days after receipt of payment
Packaging Details :
Reinforced wooden export case
Keyword :
digital signage stand
Material :
Metal Case + Toughened Glass Panel
Cooling System: :
Super silence, dual fan, temperature control function
Resolution :
1920*1080
Installation :
Wall Mounted
Aspect Ratio :
16:9
Mat'l :
Aluminiun edge+Cold rolled steel with powder coating+ toughened glass surface
Application :
Supermarket, Airport, Metro, Elevator, Goods Presentation
Description

Digital Signage Video Wall lcd Display kiosk CHARGE STATION Advertising Screen

Description of LCD Video Wall

LCD glass screen is latest and marvelous of optoelectronic screen. This screen based on glass, on the premise of ensure see-through transparency, implemented super array full color image.No need additional structure, only need installed on the glass wall directly.

1. It is transparent, unlike traditional screen has a shady area.

52%-78% of transparency ratio, to ensures natural light in the building.

2. On the premise of ensure transparency, it is compatible with high-end decoration and better advertising effect. To reveal your unique and charm image!

3. Llight weight and fast assembly.

4. Be easier for installation structure and lower cost for installation. No need additional steel structure, only install on building of the existing wall directly.

5. Indoor maintenance, fast and safe. No need outdoor maintenance, to save more cost.

6. Ultra slim design.

7. High brightness.

Resolution 1920*1080/60Hz
screen lift-span 60,000 hours
Aspect Ratio 16:09
Display Colors 16.7 Mil (8bit)
Brightness 500cd/m²
Contrast Ratio 4500:01:00
Response Time 6ms
Viewing Angle 178°(H)/178°(V)
Lifetime 60,000 hours
Input Interface Support D-15 RGB VGA Input (1) & DVI Input (1) & HDMI Input (1)
Power Consumption ≤180W
Working temperature -20--60℃
Video Support format Composite video 2(BNC*2) Input & Output (AVI)
Signal Control format RS232 (RJ45-8 interface) Input & Output
Case/Trestle Customized
Installing accessories Customized
Language support Enghlish, Chinese,Spanish, Russian etc.
color system PAL/NTSC/SECAM
Operating system Android OS 4.4 or windows 7
Installation With wall bracket for each single unit lcd
Body size(mm) 1022.8*557*101.53mm
Frame Color Black
Body material Metal steel plate ,aluminum side(silver, black, golden etc.)
Package Carton, bubble, wooden boxes, Fengwo Carton
Sets Base,screws,pull the explosion screws,keys,power cord,

Application Area

1. Public Places.

2. Entertainment Places.

3. Financial Institution.

4. Business Organizations.

5. Public Service.

6. Real Estate&Property.

Advantage


● Sun Readable
● Waterproof
Unique patented sealing technology.
● Extreme Temperature
Intelligent air conditioner cooling system integrated cooling and heating.
● Vandal Proof

Strong steel housing protects inner system from vandalism.

Main Function:

1. Play mp4 movie, mp3 music and digital photos; Built-in 65 inch TFT LED screen, with tempered glass protection; easy-to-install on supermarket shelves.
2. Built-in pc
3. Upgrade contents of Built-in memory by remote internet PC control
4. Timer function: the player powers on / off automatically everyday at the time pre-set; It can also automatically play and non-stop replay within the pre-set time frame
5. No DVD style mechanical movement, hence more durable and suitable for long-hour advertising playing
6. IR (infrared) motion sensor: player starts automatically when the sensor detects an approaching viewer
7. Audio output: 2 built-in high quality stereo speakers
8. With professional easy-to-use stand set;
9. LED ratio adjustable: 16 : 9

About us

Doxi World Technology established in 2011. We adheres to the vision of high quality, concentrates on the supply of indoor and outdoor digital signages. Values: Customer success, Pursuit of excellence, Pragmatic and Trustworthy. Our goal is to provide competitive solutions and services of digital signages to create the maximum value for the advertising integrators and industry clients.

FAQ:
Q: How long is the warranty time for your products?
A: Our officially promised warranty time is one year limited after delivery date.
Q: When will you make the delivery?
A: We can make the delivery within 10-15 working days or depend on the size and quantities of your order.
Q: what brand of screen are you using?
A: we are using Samsung,LG and AUO screen.
Q: Do you have your own enclosure factory?
A: Yes we do have our own enclosure factory,and we have the best structural Engineer,we hope to provide you with best screen and shape,so OEM is also welcome.
Q: What payment methods your company accept?
A: We accept T/T, WesternUnion,Paypal.
