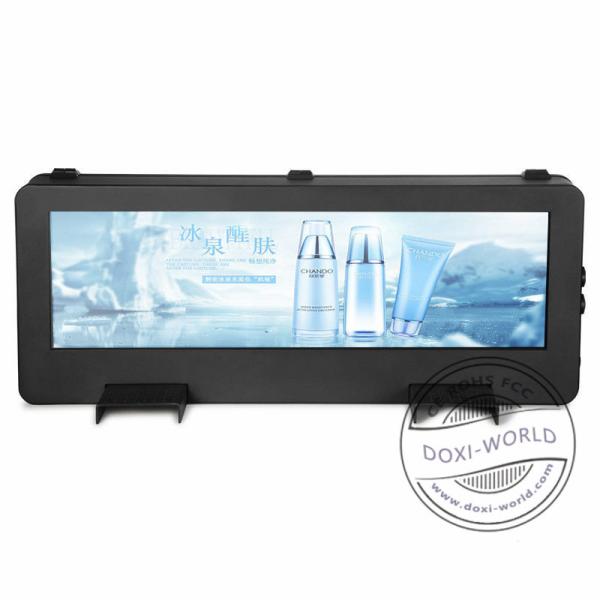

product name:43.8-inch double-sided car outdoor advertising machine | |||
project name | Quantity | Remarks | |
project name | Specification | ||
Show part | 43.8-inch display | 1 | Industrial Samsung display resolution3840*1080. |
Backlight/2000cd/㎡ | 1 | Direct use of LED backlight. | |
Anti-glare AR glass | 1 | Using imported original film, AR antireflection T = 6.8MM, light transmittance 97%, reflectance less than 3%, with laminated plastic. | |
Backlight control | 1 | With automatic automatic adjustment of brightness, environmental protection and energy saving features | |
Motherboard | RK3399 | 1 | RK3399+4GB+16GB+GPS+4G+keyboard and mouse USB interface+automatic dimming function+access control sensor+information publishing system and background management |
Electronic part | power | 1 | Industrial-grade car power supply, 9-36V input, automatically adjust the brightness, reduce power consumption. |
Wire | 1 | ||
Electronic part | Leakage protection switch | 1 | With leakage protection, lightning protection, can be more time control. |
Lightning protection device | 1 | ||
Time control switch | 1 | ||
Cooling part | Smart fan cooling | 1 | Patented intelligent cooling system with to meet the LCD screen in the external environment -40 to 85 degrees under normal work. |
Sheet metal part | chassis | 1 | Made of stainless steel + aluminum chassis, |
Special outdoor powder coating | 1 | ||
Waterproof tape | 1 | ||
Assembly costs | Machine assembly | 1 | Machine assembly testing |
Test section | IP55 waterproof test | 1 | To ensure the normal operation of the product after shipment, complete machine test before shipment. |
High and low temperature test | 1 | ||
Simulated solar radiation test | 1 | ||
package | Wooden box plus pearl cotton care foot | 1 | Wooden packing |
FAQ:
Q: How long is the warranty time for your products?
A: Our officially promised warranty time is one year limited after delivery date.
Q: When will you make the delivery?
A: We can make the delivery within 10-15 working days or depend on the size and quantities of your order.
Q: what brand of screen are you using?
A: we are using Samsung,LG and AUO screen.
Q: Do you have your own enclosure factory?
A: Yes we do have our own enclosure factory,and we have the best structural Engineer,we hope to provide you with best screen and shape,so OEM is also welcome.
Q: What payment methods your company accept?
A: We accept T/T, WesternUnion,Paypal.
