FCC UL UKCA SAA CCC 120W Lead Acid Battery Charger For LFP NMC AGM
FCC UL UKCA SAA CCC 120W Lead Acid Battery Charger For LFP NMC AGM
FCC UL UKCA SAA CCC 120W Lead Acid Battery Charger For LFP NMC AGM
FCC UL UKCA SAA CCC 120W Lead Acid Battery Charger For LFP NMC AGM
FCC UL UKCA SAA CCC 120W Lead Acid Battery Charger For LFP NMC AGM
FCC UL UKCA SAA CCC 120W Lead Acid Battery Charger For LFP NMC AGM
Specifications
Brand Name :
Fullpower
Model Number :
17110
Certification :
FCC,UL,CE,UKCA,SAA,KC,PSE,CCC,ETLetc
Place of Origin :
China
MOQ :
500PCS
Payment Terms :
T/T, Western Union
Supply Ability :
100000PCS/Day
Delivery Time :
30 working days
Packaging Details :
Individul Pe Bag Packing or others
Item :

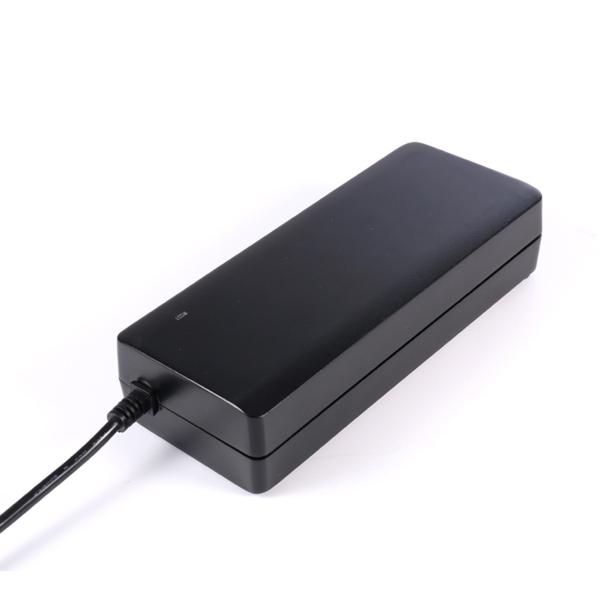

120W Wall-mount Power Adapter
Input :
100-240V 50/60HZ
Output :
DC 120W Max
AC Socket :
C6 C8 C14
DC connector :
Custom make
Material :
ABS+PC
Color :
Black, White Or Others
Protection :
OCP, OLP, OVP And Others
Logo :
Fullpower Or Custom Make
Warranty :
3 Years
Description

FCC UL UKCA SAA CCC 120W Lead Acid Battery Charger For LFP NMC AGM

120W battery charger for LFP NMC AGM Lead Acid battery ul ce ukca gs fcc etl certification

Data-sheet

FEATURES SAFETIES APPROVALS PRODUCTS PICTURE

v EFFICIENCY VI

v 100-120W OUTPUT POWER

v OVERCURRENT PROTECTION

v SHORT CIRCUIT PROTECTION

v INPUT PROTECTION

v ROHS COMPLIANT

Desktop Type

v UL, FCC

v CB, CE, UKCA

v CCC, KC, PSE

v SAA

v REACH, ROHS

 FCC UL UKCA SAA CCC 120W Lead Acid Battery Charger For LFP NMC AGM
TYPICAL MODEL LIST
I/P Voltage Typical model Output Voltage Output Current Ripple & noise Efficiency Level

90 - 264V

47 - 63HZ

 CGSW120D-120-10000 12V 10000mA 30mV 6 Level VI
CGSW120D-150-8000 15V 8000mA 40mV 6 Level VI
CGSW120D-180-6666 18V 6666mA 50mV 6 Level VI
CGSW120D-200-6000 20V 6000mA 70mV 6 Level VI
CGSW120D-360-3333 36V 3333mA 50mV 6 Level VI
CGSW120D-480-2500 48V 2500mA 50mV 6 Level VI
INPUT SPECIFICATIONS GENERAL SPECIFICATIONS
Input Voltage 90〜264VAC Primary to Secondary 50MΩ MIN
Input Frequency 47〜63Hz Efficiency VI
Input Current 1.5A Max Standby Power 0.5W MAX
Inrush Current 40A Max Leakage Current 0.25mA MAX
OUTPUT SPECIFICATIONS ENVIRONMENTAL SPECIFICATIONS
Output Voltage Range 12.00V-48.00V Operating Temperature 10°C~40°C
Output Current Range 100mA-10000mA Cooling Convection
Output Power Range 120W Max Temperature Coefficient 0.05%/°C
Short Circuit Protection Automatic Recovery Humidity 5~95%RH(non-condensing)
Over-Current Protection Automatic Recovery Storage Temperature -20°C~+80%°C
Ripple and Noise 100mVp-p max PHYSICAL SPECIFICATIONS
Turn On Time 20-30mS normal Physical Specifications 172.4mm *72.4mm *33.4mm
Line Regulation 1% max SAFETIES STANDARD
Output Regulation ±5% Safeties Standard 62368 / 60950 / 60335 / 61558 / 60065 / UL1310

Product Pictures

FCC UL UKCA SAA CCC 120W Lead Acid Battery Charger For LFP NMC AGM

FCC UL UKCA SAA CCC 120W Lead Acid Battery Charger For LFP NMC AGM

FCC UL UKCA SAA CCC 120W Lead Acid Battery Charger For LFP NMC AGM

ABOUT Yingyuan:

Shenzhen Yingyuan Electronics Co., Ltd., established in 2008, is a medium-sized comprehensive enterprise

integrating product development, production and sales.The company is located in Guangming New District, Shenzhen.

It has a professional R&D team, a scientific management team and more than 800 employees who have undergone

rigorous skills training. Our company mainly provides ac dc power supply, switching power supply, battery chargers,

USB charger, pd charger, qc3.0 charger, for domestic and foreign customers. We always adhere to the corporate tenet

of "survive by quality and develop by reputation". We rely on reliable quality, Satisfactory service and preferential

prices are well received by agents and customers. The products are certified, UL,FCC,UKCA, CE, etc., based on the

business philosophy of "quality, service, innovation", and relying on the unremitting efforts of all Kaimeiwei people

to make Kaimeiwei products change with each passing day. We are willing to cooperate sincerely with friends all

over the world to seek common development and create brilliance together.

FQA

Q1. Do you provide OEM/ODM services?
A: yes,Our factory and engineer team have extensive experience in providing OEM/ODM services.

Q2.Why can we choose you?
1) Reliable-we are a real company and we are committed to a win-win situation.
2) Professional-we provide the products you want.
3) Factory-We have factories, so the price is reasonable

Q3.Can you accept sample orders?
We can. Before bulk ordering, we can provide samples for testing.

Q4.What is your delivery time?
1) Sample orders will be shipped from our factory within 3 working days.
2) General orders will be shipped from our factory within 15 working days.
3) Large orders will be delivered from our factory within 30 working days at most.

Q5.What is your shipment?
1) by EMS, DHL, FedEx, TNT, UPS or other express methods.
2) Through our freight forwarder (air or sea).
3) By your own freight forwarder.
4) Domestic freight forwarder to any city in China.
