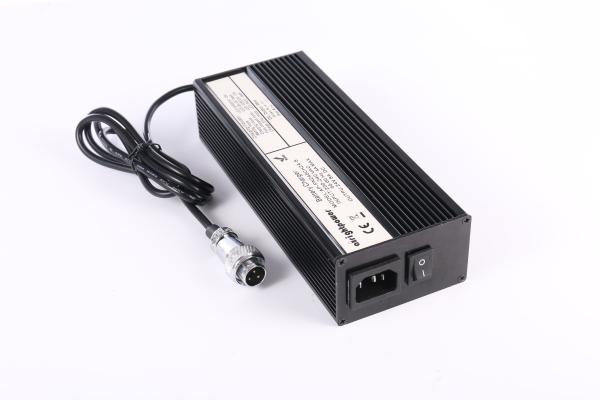

240W EV Battery Charger For LFP NMC AGM Ebike Scooter Eletric Cart
240W EV Battery Charger For LFP NMC AGM Ebike Scooter Eletric Cart
240W EV Battery Charger For LFP NMC AGM Ebike Scooter Eletric Cart
240W EV Battery Charger For LFP NMC AGM Ebike Scooter Eletric Cart
240W EV Battery Charger For LFP NMC AGM Ebike Scooter Eletric Cart
240W EV Battery Charger For LFP NMC AGM Ebike Scooter Eletric Cart
Specifications
Brand Name :
Alrightpower
Model Number :
AP-PN240
Certification :
UL,FCC,CB,CE,UKCA,CCC,PSE,KC,RCM etc
Place of Origin :
China
MOQ :
500PCS
Payment Terms :
T/T, Western Union
Supply Ability :
50000PCS/Day
Delivery Time :
30 working days
Packaging Details :
Individul Pe Bag Packing or others
Input :
100-240V 50/60HZ
Output :
DC 240W Max
Material :
ABS+PC
Color :
Black, White Or Others
Protection :
OCP, OLP, OVP And Others
Logo :
Fullpower Or Custom Made
Description

240W EV Battery Charger For LFP NMC AGM Ebike Scooter Eletric Cart

240W Chargr For LFP, NMC, AGM, And Lead Acid Battery Charger For Ebike Scooter Eletric Cart

240W EV Battery Charger For LFP NMC AGM Ebike Scooter Eletric Cart深圳市盈源电子有限公司

Shenzhen YingYuan Electronics Co., Ltd

Address:The 4-7th Floor, Building 8, HongYe Industrial Park,

XiXiang Town, BaoAn District, ShenZhen, China
Specifications PRODUCTS PICTURE

240W BATTERY CHAEGER

l AC Input Voltage Range: AC100V～AC240V

l AC Input Frequency: 45～65HZ

l AC Power Factor Correction: ≥0.98

l Output Voltage:12V～60V

l Output Current:16A(Max)

l Full Load Efficiency: ≥90%

l Shock & Vibration: 10～50HZ 2G 10 minutes,X,Y,Z /60 minutes

l Operating Temperature: -20ºC～+45ºC(-20ºF～+113ºF)

l Storage Temperature: -40ºC～+85ºC(-40ºF～+185ºF)

l Dimensions (mm):(L)203х(W)81х(H)47.5

l Net Weight: 1.2kg

 240W EV Battery Charger For LFP NMC AGM Ebike Scooter Eletric Cart
TYPICAL MODEL LIST
Charger Model Rated Input Voltage Battery Standard Voltage Maximum charging Current Maximum charging Current
AP-PN240CH01460160 100-240 12 14.6 16
AP-PN240CH02920080 100-240 24 29.2 8
AP-PN240CH04200060 100-240 36 42 6
AP-PN240CH05460040 100-240 48 54.6 4
AP-PN240CH01200160 100-240 12 14.7 16
AP-PN240CH02400080 100-240 24 29.4 8
AP-PN240CH03600060 100-240 36 44.1 6
AP-PN240CH04800040 100-240 48 58.8 4
SPECIFICATIONS
AC Input Voltage Range: AC100V～AC240V Shock & Vibration: 10～50HZ 2G 10 minutes,X,Y,Z /60 minutes
AC Input Frequency: 45～65HZ Operating Temperature: -20ºC～45ºC(-20ºF～+113ºF)
AC Power Factor Correction: ≥0.98 Storage Temperature: -40ºC～+85ºC(-40ºF～185ºF)
Output Voltage: 12V～60V Dimensions (mm): (L)203х(W)81х(H)47.5
Output Current: 16A(Max) Net Weigh: 1.2kg
Full Load Efficiency: ≥90% Certifications UL CE FCC RoHs
Protections

Thermal Self-Protection

Charger will be stopped automatically when reaches to Maximum temperature , LED light will be red to warn it

Short- circuit Protection

When Short Circuit happened ,charger will turn off

Reverse Connection Protection

When the battery is polarity reversed ,the charger will cut off the connection between the circuit and the battery

Battery Broken protection

When some battery broke ,battery can not reach 100% full-charged ,charger will be shut down automatically
Application Electric Bicycles/Tricycles/Scooters /Power tools and other electric-related equipment
MECHANICAL SPECIFICATION PACKING DETAILS

240W EV Battery Charger For LFP NMC AGM Ebike Scooter Eletric Cart

1pcs/Carton

1.2kg/Carton

Carton size: 203*81*47.5mm

Product Pictures

240W EV Battery Charger For LFP NMC AGM Ebike Scooter Eletric Cart

240W EV Battery Charger For LFP NMC AGM Ebike Scooter Eletric Cart

240W EV Battery Charger For LFP NMC AGM Ebike Scooter Eletric Cart

Application
240W EV Battery Charger For LFP NMC AGM Ebike Scooter Eletric Cart

About us.

shenzhen Yingyuan electronics Co.,Ltd , focusing on the research and development, production,salesand service of high-power chargers. The company which was rated as a national high-tech enterprise in 2019.our company has a professional hardware and software development team, advancedproduction,testing, inspection and experimental equipment. We take "safety and efficiency, integrity andwin-win" as our core value, and always stick to the "customer first and quality first" management policy, sothat we can provide accompanying service to all our customers and become the long-term strategicpartner of numbers of domestic and foreign well-known enterprises.
