1800w 2000w 2200w 2400w EV Battery Charger And Black Power Supply
1800w 2000w 2200w 2400w EV Battery Charger And Black Power Supply
1800w 2000w 2200w 2400w EV Battery Charger And Black Power Supply
1800w 2000w 2200w 2400w EV Battery Charger And Black Power Supply
1800w 2000w 2200w 2400w EV Battery Charger And Black Power Supply
1800w 2000w 2200w 2400w EV Battery Charger And Black Power Supply
Specifications
Brand Name :
Alrightpower
Model Number :
AP-PN1800-2400
Certification :
UL,FCC,CB,CE,UKCA,CCC,PSE,KC,RCM etc
Place of Origin :
China
MOQ :
50PCS
Payment Terms :
T/T, Western Union
Supply Ability :
10000PCS/Day
Delivery Time :
30 working days
Packaging Details :
Individul Pe Bag Packing or others
Input :
100-240V 50/60HZ
Output :
2400W Max
Material :
ABS+PC
Color :
Black, White Or Others
Protection :
OCP, OLP, OVP And Others
Logo :
Fullpower Or Custom Made
Description

1800w 2000w 2200w 2400w EV Battery Charger And Black Power Supply

1800w 2000w 2200w 2400w Battery Charger And Power Supply With Etl Fcc Ul Ce Certificates

1800w 2000w 2200w 2400w EV Battery Charger And Black Power Supply深圳市盈源电子有限公司

Shenzhen YingYuan Electronics Co., Ltd

Address:The 4-7th Floor, Building 8, HongYe Industrial Park,

XiXiang Town, BaoAn District, ShenZhen, China
Specifications PRODUCTS PICTURE

1800W--2400W BATTERY CHAEGER

l AC Input Voltage Range :AC100V-AC240V

l AC Input Frequency: 45～65HZ

l AC Power Factor Correction: ≥0.98

l Output Voltage:24V～90V

l Output Current:60A(Max)

l Full Load Efficiency: ≥90%

l Shock & Vibration: 10～50HZ 2G 10 minutes,X,Y,Z /60 minutes

l Operating Temperature: -20ºC～+45ºC(-20ºF～+113ºF)

l Storage Temperature: -40ºC～+85ºC(-40ºF～+185ºF)

l Dimensions (mm): L)300х(W)140х(H)90

l Net Weight: 4.5kg
TYPICAL MODEL LIST
Charger Model Rated Input Voltage Battery Standard Voltage Maximum charging Current Maximum charging Current
AP-PF1800CH02920450 100-240 24 29.2 45
AP-PF1800CH04200300 100-240 36 42 30
AP-PF1800CH05460240 100-240 48 54.6 24
AP-PF1800CH07140180 100-240 60 71.4 18
AP-PF1800CH08400150 100-240 72 84 15
AP-PF1800CH02400450 100-240 24 29.4 45
AP-PF1800CH03600300 100-240 36 44.1 30
AP-PF1800CH04800220 100-240 48 58.8 22
AP-PF1800CH06000180 100-240 60 73.5 18
AP-PF1800CH07200150 100-240 72 88.2 15
AP-PF2400CH02920600 220V 24 29.2 60
AP-PF2400CH04200500 220V 36 42 50
AP-PF2400CH05460400 220V 48 54.6 40
AP-PF2400CH07140300 220V 60 71.4 30
AP-PF2400CH08400250 220V 72 84 25
AP-PF2400CH02400600 220V 24 29.2 45
AP-PF2400CH03600500 220V 36 44.1- 30
AP-PF2400CH04800380 220V 48 58.8 24
AP-PF2400CH06000300 220V 60 73.5 30
AP-PF2400CH07200250 220V 72 88.2 25
SPECIFICATIONS
AC Input Voltage Range: AC100V-AC 240V Shock & Vibration: 10～50HZ 2G 10 minutes,X,Y,Z /60 minutes
AC Input Frequency: 45～65HZ Operating Temperature: -20ºC～45ºC(-20ºF～+113ºF)
AC Power Factor Correction: ≥0.98 Storage Temperature: -40ºC～+85ºC(-40ºF～185ºF)
Output Voltage: 24V～90V Dimensions (mm): (L)300х(W)140х(H)90
Output Current: 60A(Max) Net Weigh: 4.5kg
Full Load Efficiency: ≥90% certifications UL CE FCC RoHs
Protections

Thermal Self-Protection

Charger will be stopped automatically when reaches to Maximum temperature , LED light will be red to warn it

Short- circuit Protection

When Short Circuit happened ,charger will turn off

Reverse Connection Protection

When the battery is polarity reversed ,the charger will cut off the connection between the circuit and the battery

Battery Broken protection

When some battery broke ,battery can not reach 100% full-charged ,charger will be shut down automatically
Application Electric motorcycle/Golf cart/Sightseeing car/Cleaning car/Low speed car and so on

Application
1800w 2000w 2200w 2400w EV Battery Charger And Black Power Supply

MECHANICAL SPECIFICATION
1800w 2000w 2200w 2400w EV Battery Charger And Black Power Supply

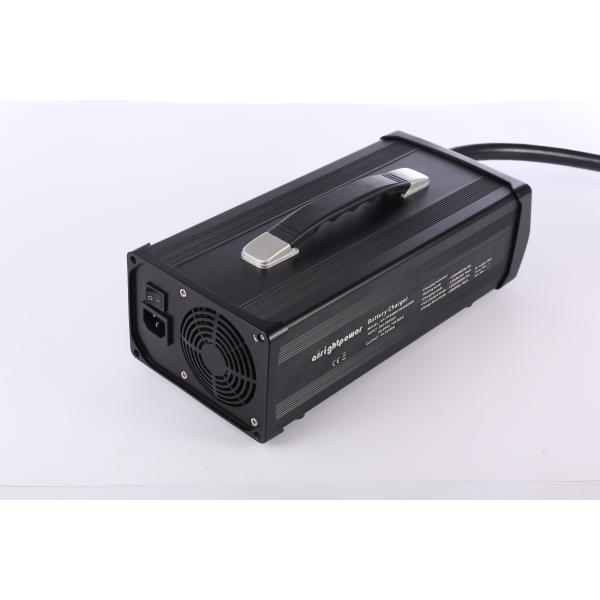

Product Picture

1800w 2000w 2200w 2400w EV Battery Charger And Black Power Supply

1800w 2000w 2200w 2400w EV Battery Charger And Black Power Supply

1800w 2000w 2200w 2400w EV Battery Charger And Black Power Supply

Certification
1800w 2000w 2200w 2400w EV Battery Charger And Black Power Supply

Shipping
1800w 2000w 2200w 2400w EV Battery Charger And Black Power Supply
