DC 240W EV Battery Charger For Golf Carts Ebike Electric Motorcycle
DC 240W EV Battery Charger For Golf Carts Ebike Electric Motorcycle
DC 240W EV Battery Charger For Golf Carts Ebike Electric Motorcycle
DC 240W EV Battery Charger For Golf Carts Ebike Electric Motorcycle
DC 240W EV Battery Charger For Golf Carts Ebike Electric Motorcycle
DC 240W EV Battery Charger For Golf Carts Ebike Electric Motorcycle
DC 240W EV Battery Charger For Golf Carts Ebike Electric Motorcycle
DC 240W EV Battery Charger For Golf Carts Ebike Electric Motorcycle
Specifications
Brand Name :
Alrightpower
Model Number :
AP-PN240
Certification :
UL,FCC,CB,CE,UKCA,CCC,PSE,KC,RCM etc
Place of Origin :
China
MOQ :
500PCS
Payment Terms :
T/T, Western Union
Supply Ability :
50000PCS/Day
Delivery Time :
30 working days
Packaging Details :
Individul Pe Bag Packing or others
Input :
100-240V 50/60HZ
Output :
DC 240W Max
Material :
ABS+PC
Color :
Black, White Or Others
Protection :
OCP, OLP, OVP And Others
Logo :
Fullpower Or Custom Made
Description

DC 240W EV Battery Charger For Golf Carts Ebike Electric Motorcycle

240W Battery Charger For Forklift Storage Battery Golf Carts Ebike Electric Motorcycle

DC 240W EV Battery Charger For Golf Carts Ebike Electric Motorcycle深圳市盈源电子有限公司

Shenzhen YingYuan Electronics Co., Ltd

Address:The 4-7th Floor, Building 8, HongYe Industrial Park,

XiXiang Town, BaoAn District, ShenZhen, China
Specifications PRODUCTS PICTURE

240W BATTERY CHAEGER

l AC Input Voltage Range: AC100V～AC240V

l AC Input Frequency: 45～65HZ

l AC Power Factor Correction: ≥0.98

l Output Voltage:12V～60V

l Output Current:16A(Max)

l Full Load Efficiency: ≥90%

l Shock & Vibration: 10～50HZ 2G 10 minutes,X,Y,Z /60 minutes

l Operating Temperature: -20ºC～+45ºC(-20ºF～+113ºF)

l Storage Temperature: -40ºC～+85ºC(-40ºF～+185ºF)

l Dimensions (mm):(L)203х(W)81х(H)47.5

l Net Weight: 1.2kg

 DC 240W EV Battery Charger For Golf Carts Ebike Electric Motorcycle
TYPICAL MODEL LIST
Charger Model Rated Input Voltage Battery Standard Voltage Maximum charging Current Maximum charging Current
AP-PN240CH01460160 100-240 12 14.6 16
AP-PN240CH02920080 100-240 24 29.2 8
AP-PN240CH04200060 100-240 36 42 6
AP-PN240CH05460040 100-240 48 54.6 4
AP-PN240CH01200160 100-240 12 14.7 16
AP-PN240CH02400080 100-240 24 29.4 8
AP-PN240CH03600060 100-240 36 44.1 6
AP-PN240CH04800040 100-240 48 58.8 4
SPECIFICATIONS
AC Input Voltage Range: AC100V～AC240V Shock & Vibration: 10～50HZ 2G 10 minutes,X,Y,Z /60 minutes
AC Input Frequency: 45～65HZ Operating Temperature: -20ºC～45ºC(-20ºF～+113ºF)
AC Power Factor Correction: ≥0.98 Storage Temperature: -40ºC～+85ºC(-40ºF～185ºF)
Output Voltage: 12V～60V Dimensions (mm): (L)203х(W)81х(H)47.5
Output Current: 16A(Max) Net Weigh: 1.2kg
Full Load Efficiency: ≥90% Certifications UL CE FCC RoHs
Protections

Thermal Self-Protection

Charger will be stopped automatically when reaches to Maximum temperature , LED light will be red to warn it

Short- circuit Protection

When Short Circuit happened ,charger will turn off

Reverse Connection Protection

When the battery is polarity reversed ,the charger will cut off the connection between the circuit and the battery

Battery Broken protection

When some battery broke ,battery can not reach 100% full-charged ,charger will be shut down automatically
Application Electric Bicycles/Tricycles/Scooters /Power tools and other electric-related equipment
MECHANICAL SPECIFICATION PACKING DETAILS

DC 240W EV Battery Charger For Golf Carts Ebike Electric Motorcycle

1pcs/Carton

1.2kg/Carton

Carton size: 203*81*47.5mm

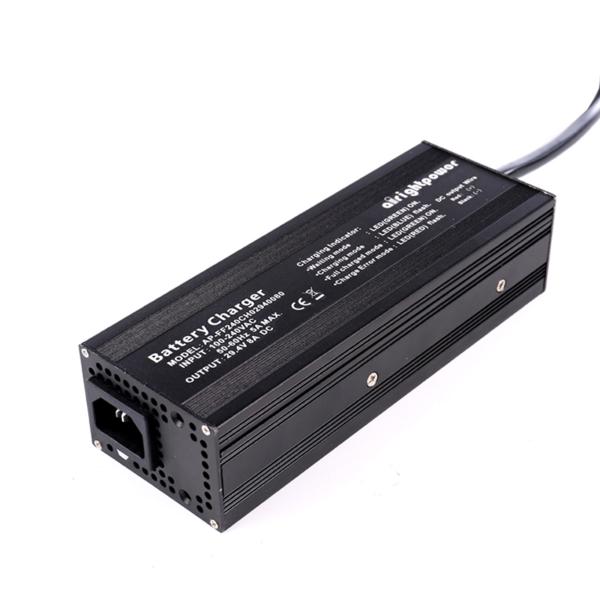

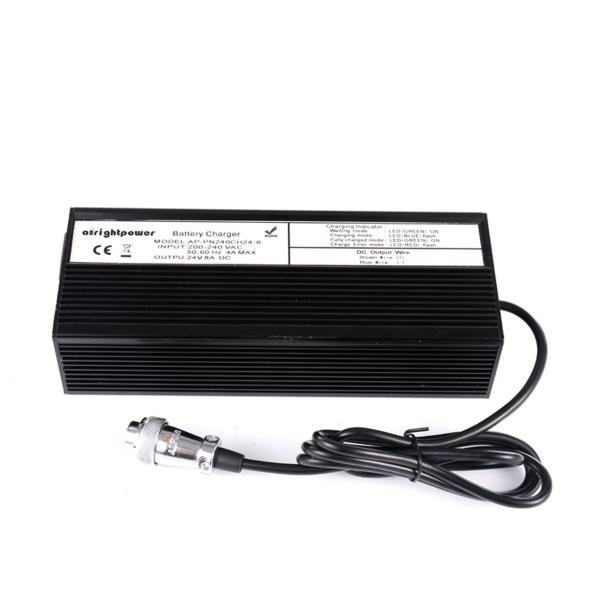

Product Pictures

DC 240W EV Battery Charger For Golf Carts Ebike Electric Motorcycle

DC 240W EV Battery Charger For Golf Carts Ebike Electric Motorcycle

DC 240W EV Battery Charger For Golf Carts Ebike Electric Motorcycle

Application
DC 240W EV Battery Charger For Golf Carts Ebike Electric Motorcycle

Note: Before you place an order, please confirm the following questions to us:

1. What kind of battery do you need to charge ?

Li-ion battery or LiFePO4 battery or Lead Acid battery ?
2. What is the max charging voltage of the battery ?
3. What is the number of cells in series ?
4. What is the capacity(AH) of battery pack ?

5. What input plug and out plug do you need? For Example: B & 1

About us.

Q1:Why our power supply Is Right For You ?
A1:Our power supply and adapter products are practical and durable,multifunctions,most popular designs, simple operations and installations,exclusive special effects,OEM available,provide specific functions such as Environmentally, Anti-Aging, Anti-Mildew,Anti-Collision,Anti-High Temperature,Fireproof,Abrasion Resistance and package protection.

These properties are often combined to create power supply products suited for specific jobs,while achieving a good balance between product use-life and cost. They can mimic the appearance,attractive.In combination with other products they provide a spectrum of products with diverse properties, and are widely used in all kinds of occasions for innumerable applications.

Q2:How to Contact us ?

A2: Email: sales09@szyingyuan.com, or send inquiry below to us directly!
