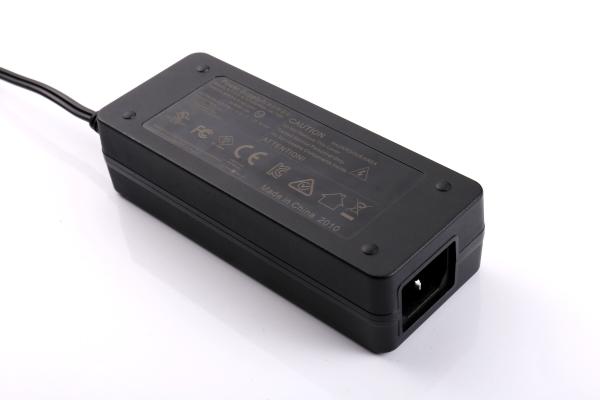

90W Desktop Switching Power Supply 15V 6A 12V 7.5A 24V 3.75A 24V 4A
90W Desktop Switching Power Supply 15V 6A 12V 7.5A 24V 3.75A 24V 4A
90W Desktop Switching Power Supply 15V 6A 12V 7.5A 24V 3.75A 24V 4A
90W Desktop Switching Power Supply 15V 6A 12V 7.5A 24V 3.75A 24V 4A
Specifications
Brand Name :
Fullpower
Model Number :
19280
Certification :
FCC,UL,CE,UKCA,SAA,KC,PSE,CCC,etc
Place of Origin :
China
MOQ :
1000PCS
Payment Terms :
T/T, Western Union
Supply Ability :
100000PCS/Day
Delivery Time :
30 working days
Packaging Details :
Individul Pe Bag Packing or others
Item :
90W 12V7.5A 15V6A 24V3.75A 24V4A Desktop
Input :
100-240V 50/60HZ
Output :
DC 96W Max
Material :
ABS+PC
Color :
Black, White Or Others
Protection :
OCP, OLP, OVP And Others
Logo :
Fullpower Or Custom Make
Warranty :
3 Years
Description

90W 12V7.5A 15V6A 24V3.75A 24V4A Desktop Switching Power Supply

About us:

All the products we sell have received CE marking. This means that through a process of rigorous testing they have all met EU consumer safety,

health and environmental requirements.


The China Compulsory Certificate mark, commonly known as CCC Mark, is a compulsory safety mark for many products imported sold or used
in the Chinese market.

Our company has passed ISO9001 quality management system certification. Our products are certified by CAS (China Association for Standardization).
All of our products strictly comply with CE, FCC and RoHS standards.

Data-sheet

FEATURES SAFETIES APPROVALS PRODUCTS PICTURE

v EFFICIENCY VI

v 90W WATT OUTPUT POWER

v OVERCURRENT PROTECTION

v SHORT CIRCUIT PROTECTION

v INPUT PROTECTION

v ROHS COMPLIANT

v UL

v FCC

v ROHS

v REACH

 90W Desktop Switching Power Supply 15V 6A 12V 7.5A 24V 3.75A 24V 4A
TYPICAL MODEL LIST
I/P Voltage Typical model Output Voltage Output Current Ripple & noise Efficiency Level

90 - 264V

47 - 63HZ

 CGSW90C-120-7500 12V 7500mA 30mV VI ****** LV
CGSW90C-150-6000 15V 6000mA 40mV VI ****** LV
CGSW90C-240-3750 24V 3750mA 50mV VI ****** LV
CGSW90C-240-4000 24V 4000mA 70mV VI ****** LV
CGSW90C-480-2000 48V 2000mA 50mV VI ****** LV
CGSW90C-480-1500 48V 1500mA 50mV VI ****** LV
INPUT SPECIFICATIONS GENERAL SPECIFICATIONS
Input Voltage 90〜264VAC Primary to Secondary 50MΩ MIN
Input Frequency 47〜63Hz Efficiency VI
Input Current 1.5A Max Standby Power 0.5W MAX
Inrush Current 40A Max Leakage Current 0.25mA MAX
OUTPUT SPECIFICATIONS ENVIRONMENTAL SPECIFICATIONS
Output Voltage Range 12.00V-48.00V Operating Temperature 10°C~40°C
Output Current Range 100mA-7500mA Cooling Convection
Output Power Range 96.0W Max Temperature Coefficient 0.05%/°C
Short Circuit Protection Automatic Recovery Humidity 5~95%RH(non-condensing)
Over-Current Protection Automatic Recovery Storage Temperature -20°C~+80%°C
Ripple and Noise 100mVp-p max PHYSICAL SPECIFICATIONS
Turn On Time 20-30mS normal Physical Specifications 150.2mm *50.2mm *25.2mm
Line Regulation 1% max SAFETIES STANDARD
Output Regulation ±5% Safeties Standard 62368 / 60950 / 60335 / 61558 / 60065 / UL1310
Certification
90W Desktop Switching Power Supply 15V 6A 12V 7.5A 24V 3.75A 24V 4A

Shipping
90W Desktop Switching Power Supply 15V 6A 12V 7.5A 24V 3.75A 24V 4A
