30W 5V 3A 12V 2.5A 12V 2A 24V 1Amp Power Supply OCP OLP OVP Protection
30W 5V 3A 12V 2.5A 12V 2A 24V 1Amp Power Supply OCP OLP OVP Protection
30W 5V 3A 12V 2.5A 12V 2A 24V 1Amp Power Supply OCP OLP OVP Protection
30W 5V 3A 12V 2.5A 12V 2A 24V 1Amp Power Supply OCP OLP OVP Protection
Specifications
Brand Name :
Fullpower
Model Number :
20180
Certification :
FCC,UL,CE,UKCA,SAA,KC,PSE,CCC,etc
Place of Origin :
China
MOQ :
1000PCS
Payment Terms :
T/T, Western Union
Supply Ability :
100000PCS/Day
Delivery Time :
30 working days
Packaging Details :
Individul Pe Bag Packing or others
Item :
30W Switching Power Supply
Input :
100-240V 50/60HZ
Output :
DC 30W Max
Material :
ABS+PC
Color :
Black, White Or Others
Protection :
OCP, OLP, OVP And Others
Logo :
Fullpower Or Custom Make
Warranty :
3 Years
Description

30W Series Switching Power Supply

Data-sheet

FEATURES SAFETIES APPROVALS PRODUCTS PICTURE

v EFFICIENCY VI

v 12-30 WATT OUTPUT POWER

v OVERCURRENT PROTECTION

v SHORT CIRCUIT PROTECTION

v INPUT PROTECTION

v ROHS COMPLIANT

US Type

v UL

v CB

v FCC

v ROHS

v REACH

 30W 5V 3A 12V 2.5A 12V 2A 24V 1Amp Power Supply OCP OLP OVP Protection
TYPICAL MODEL LIST
I/P Voltage Typical model Output Voltage Output Current Ripple & noise Efficiency

90 - 264V

47 - 63HZ

 SAW30F1-090-2000 9V 2000mA 90mV 6
SAW30F1-090-3000 9V 3000mA 90mV 6
SAW30F1-120-2000 12V 2000mA 120mV 6
SAW30F1-120-2500 12V 2500mA 120mV 6
SAW30F1-180-1000 18V 1000mA 150mV 6
SAW30F1-240-1000 24V 1000mA 150mV 6
INPUT SPECIFICATIONS GENERAL SPECIFICATIONS
Input Voltage 90〜264VAC Primary to Secondary 50MΩ MIN
Input Frequency 47〜63Hz Efficiency VI
Input Current 0.8A Max Standby Power 0.3W MAX
Inrush Current 40A Max Leakage Current 0.25mA MAX
OUTPUT SPECIFICATIONS ENVIRONMENTAL SPECIFICATIONS
Output Voltage Range 9V-36V Operating Temperature 10°C~40°C
Output Current Range 100mA-3000mA Cooling Convection
Output Power Range 30W Max Temperature Coefficient 0.05%/°C
Short Circuit Protection Automatic Recovery Humidity 5~95%RH(non-condensing)
Over-Current Protection Automatic Recovery Storage Temperature -20°C~+80%°C
Ripple and Noise 100mVp-p max PHYSICAL SPECIFICATIONS
Turn On Time 20-30mS normal Physical Specifications 71.1mm *43.1mm *29.1mm
Line Regulation 1% max SAFETIES STANDARD
Output Regulation ±5% Safeties Standard 62368 / 60950/ 60335/ 61558/ 60065

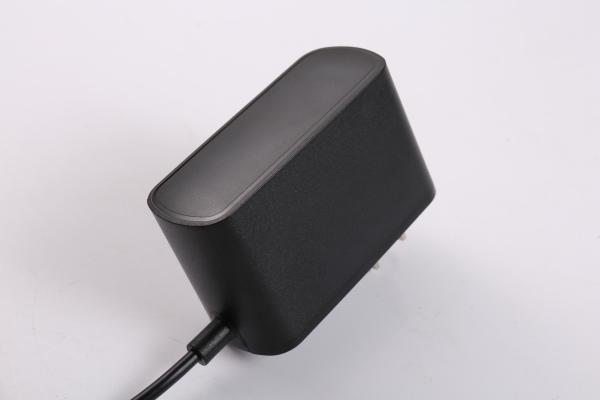

Photo pictures product

30W 5V 3A 12V 2.5A 12V 2A 24V 1Amp Power Supply OCP OLP OVP Protection

30W 5V 3A 12V 2.5A 12V 2A 24V 1Amp Power Supply OCP OLP OVP Protection

30W 5V 3A 12V 2.5A 12V 2A 24V 1Amp Power Supply OCP OLP OVP Protection


About Yingyuan:

ShenZhen Yingyuan Electronics Co., Ltd. was established in 2006. we are a professional power supply manufacturer, dedicated to
design, research and development, produce, sales and service. Our main product lines including power adapter, switching power
supply, industrial power supply, mobile phone charger, multi-function charger, cables and other IT accessories. Our products have
passed CE, FCC, CB, GS, BIS, PSE, UKCA, KCC, SAA, CCC, ROHS, WEEE, ERP, UL, TUV and other certifications. The company had pass and
strictly following ISO9001 system. With strong R&D capabilities, and strict quality control procedure, we have achieved a high
reputation at domestic and abroad market. We are OEM, ODM partner of many high-end brands like HuaWei and XiaoMi. We have
developed a variety of models for customers to choose private mode, guaranteed to give you a unique, high-end experience. We take
the " the credit first , customer first " for the principle, we offer our customer competitive price, reliable quality and A-Z
comprehensive service. We look forward to start a long term business relationship with you~
