5V 5Amp 9V 3A Power Switch Supply 12V 3A 18V 2A 24V 1.5A UKCA SAA CCC KC PSE
5V 5Amp 9V 3A Power Switch Supply 12V 3A 18V 2A 24V 1.5A UKCA SAA CCC KC PSE
5V 5Amp 9V 3A Power Switch Supply 12V 3A 18V 2A 24V 1.5A UKCA SAA CCC KC PSE
5V 5Amp 9V 3A Power Switch Supply 12V 3A 18V 2A 24V 1.5A UKCA SAA CCC KC PSE
Specifications
Brand Name :
Fullpower
Model Number :
16170
Certification :
FCC,UL,CE,UKCA,SAA,KC,PSE,CCC,etc
Place of Origin :
China
MOQ :
1000PCS
Payment Terms :
T/T, Western Union
Supply Ability :
100000PCS/Day
Delivery Time :
30 working days
Packaging Details :
Individul Pe Bag Packing or others
Item :
36W Series Switching Power Supply
Input :
100-240V 50/60HZ
Output :
DC 36W Max
Material :
ABS+PC
Color :
Black, White Or Others
Protection :
OCP, OLP, OVP And Others
Logo :
Fullpower Or Custom Make
Warranty :
3 Years
Description

36W Series Switching Power Supply

Data-sheet

FEATURES SAFETIES APPROVALS PRODUCTS PICTURE

v EFFICIENCY VI

v 30-36 WATT OUTPUT POWER

v OVERCURRENT PROTECTION

v SHORT CIRCUIT PROTECTION

v INPUT PROTECTION

v ROHS COMPLIANT

US Type

v UL

v CB

v FCC

v ROHS

v REACH

 5V 5Amp 9V 3A Power Switch Supply 12V 3A 18V 2A 24V 1.5A UKCA SAA CCC KC PSE
TYPICAL MODEL LIST
I/P Voltage Typical model Output Voltage Output Current Ripple & noise Efficiency Level

90 - 264V

47 - 63HZ

 SAW36C-050-5000 5V 5000mA 90mV L 6 VI
SAW36C-090-3000 9V 3000mA 90mV L 6 VI
SAW36C-120-3000 12V 3000mA 120mV L 6 VI
SAW36C-150-2400 15V 2400mA 120mV L 6 VI
SAW36C-180-2000 18V 2000mA 150mV L 6 VI
SAW36C-240-1500 24V 1500mA 150mV L 6 VI
INPUT SPECIFICATIONS GENERAL SPECIFICATIONS
Input Voltage 90〜264VAC Primary to Secondary 50MΩ MIN
Input Frequency 47〜63Hz Efficiency VI
Input Current 1.20A Max Standby Power 0.3W MAX
Inrush Current 40A Max Leakage Current 0.25mA MAX
OUTPUT SPECIFICATIONS ENVIRONMENTAL SPECIFICATIONS
Output Voltage Range 5V-36V Operating Temperature 10°C~40°C
Output Current Range 100mA-5000mA Cooling Convection
Output Power Range 36.0W Max Temperature Coefficient 0.05%/°C
Short Circuit Protection Automatic Recovery Humidity 5~95%RH(non-condensing)
Over-Current Protection Automatic Recovery Storage Temperature -20°C~+80%°C
Ripple and Noise 100mVp-p max PHYSICAL SPECIFICATIONS
Turn On Time 20-30mS normal Physical Specifications 97.4mm *45.4mm *32.4mm
Line Regulation 1% max SAFETIES STANDARD
Output Regulation ±5% Safeties Standard 62368 / 60950/ 60335/ 61558/ 60065

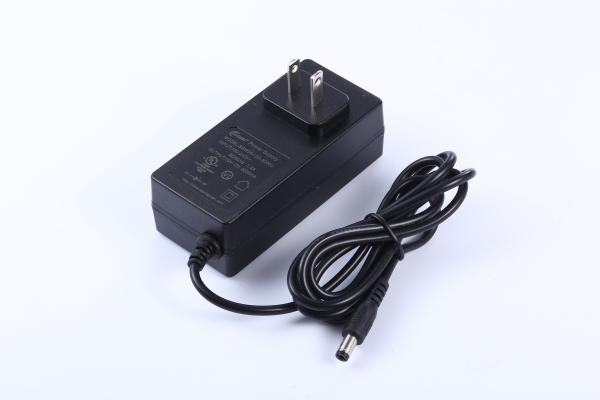

Picture Photo

5V 5Amp 9V 3A Power Switch Supply 12V 3A 18V 2A 24V 1.5A UKCA SAA CCC KC PSE

5V 5Amp 9V 3A Power Switch Supply 12V 3A 18V 2A 24V 1.5A UKCA SAA CCC KC PSE

5V 5Amp 9V 3A Power Switch Supply 12V 3A 18V 2A 24V 1.5A UKCA SAA CCC KC PSE

About Yingyuan:

Founded in 2006, Yingyuan is one of the top manufacturer of car chargers in China, with more than 12000 square meters workshop, including

PCB automatic wave soldering, assembly line, laser marking ect. It is a national high-tech enterprise engaged in the research, development,

production and sales of car chargers. We have 18 production lines including welding, assembly, automatic testing and aging. Meanwhile,

it introduces various advanced production equipment and precise testing instruments to ensure the monthly high quality production capacity

of more than 2 million sets.. and has won unanimous praise from domestic and foreign customers. We implement strict inspection to minimize

risks, delays and costs. IQC for incoming raw materials, IPQC in the process and OQC, finished product 2 hours aging test before packing.

To further ensure that your quality standards are met,we have QC team overseeing all operations.We are so confident of our products that,

most of our products pass the CE,ROHS,FCC Certification.Besides, replying on the stable supply and good service for customers, we win the

good reputation from all the market in European, South America, North America and Australia...ect. Hanchang Xin"s growth relies on a

greater part to the customers"s support. we only focus on car chargers,We sincely look forward to your attention. Hope you will give us

chance to provide you our professional and excellent service.
