12V 0.5A 24V 0.25A 6W AC DC Power Supply IEC62368 IEC60335 IEC61558 UL1310
12V 0.5A 24V 0.25A 6W AC DC Power Supply IEC62368 IEC60335 IEC61558 UL1310
12V 0.5A 24V 0.25A 6W AC DC Power Supply IEC62368 IEC60335 IEC61558 UL1310
12V 0.5A 24V 0.25A 6W AC DC Power Supply IEC62368 IEC60335 IEC61558 UL1310
Specifications
Brand Name :
Fullpower
Model Number :
16320
Certification :
FCC,UL,CE,UKCA,SAA,KC,PSE,CCC,etc
Place of Origin :
China
MOQ :
1000PCS
Payment Terms :
T/T, Western Union
Supply Ability :
100000PCS/Day
Delivery Time :
30 working days
Packaging Details :
Individul Pe Bag Packing or others
Item :
6W AC DC Power Supply
Input :
100-240V 50/60HZ
Output :
DC 6W Max
Material :
ABS+PC
Color :
Black, White Or Others
Protection :
OCP, OLP, OVP And Others
Logo :
Fullpower Or Custom Make
Warranty :
3 Years
Description

6W 5V0.5A 5V1A 5V1.2A 12V0.5A 24V0.25A AC DC Power Supply

Data-sheet

FEATURES SAFETIES APPROVALS PRODUCTS PICTURE

v EFFICIENCY VI

v 1-6 WATT OUTPUT POWER

v OVERCURRENT PROTECTION

v SHORT CIRCUIT PROTECTION

v INPUT PROTECTION

v ROHS COMPLIANT

US Type

v UL

v FCC

v ROHS

v REACH

 12V 0.5A 24V 0.25A 6W AC DC Power Supply IEC62368 IEC60335 IEC61558 UL1310
TYPICAL MODEL LIST
I/P Voltage Typical model Output Voltage Output Current Ripple & noise Efficiency Level

90 - 264V

47 - 63HZ

 SAW06A5-050-0500 5V 500mA 30mV Level 6 VI
SAW06A5-050-1000 5V 1000mA 40mV Level 6 VI
SAW06A5-050-1200 5V 1200mA 50mV Level 6 VI
SAW06A5-090-0500 9V 670mA 70mV Level 6 VI
SAW06A5-120-0500 12V 500mA 50mV Level 6 VI
SAW06A5-240-0250 24V 250mA 50mV Level 6 VI
INPUT SPECIFICATIONS GENERAL SPECIFICATIONS
Input Voltage 90〜264VAC Primary to Secondary 50MΩ MIN
Input Frequency 47〜63Hz Efficiency VI
Input Current 0.3A Max Standby Power 0.1W MAX
Inrush Current 40A Max Leakage Current 0.25mA MAX
OUTPUT SPECIFICATIONS ENVIRONMENTAL SPECIFICATIONS
Output Voltage Range 5V-24.0V Operating Temperature 10°C~40°C
Output Current Range 100mA-1200mA Cooling Convection
Output Power Range 6.00W Max Temperature Coefficient 0.05%/°C
Short Circuit Protection Automatic Recovery Humidity 5~95%RH(non-condensing)
Over-Current Protection Automatic Recovery Storage Temperature -20°C~+80%°C
Ripple and Noise 100mVp-p max PHYSICAL SPECIFICATIONS
Turn On Time 20-30mS normal Physical Specifications 43.6mm *40.6mm *22.6mm
Line Regulation 1% max SAFETIES STANDARD
Output Regulation ±5% Safeties Standard 62368 / 60950/ 60335/ 61558/ 60065

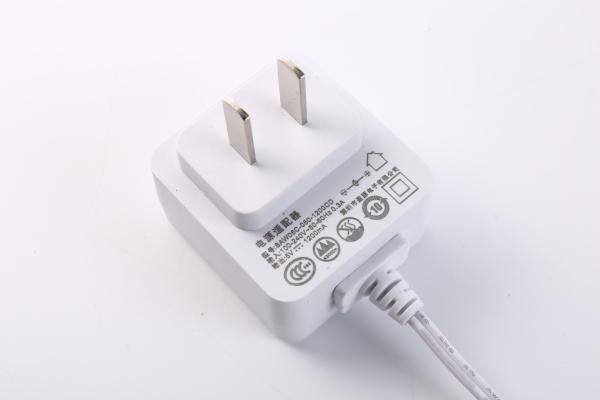

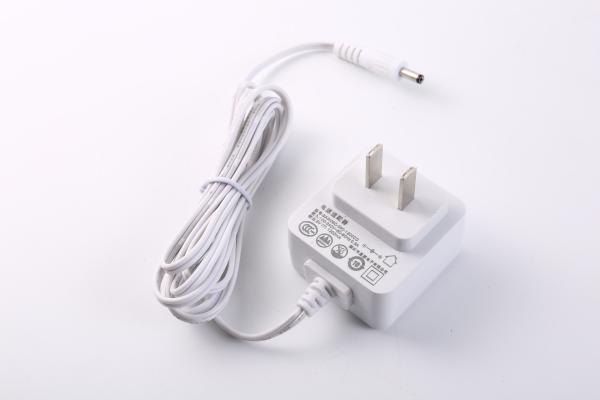

Product photo

12V 0.5A 24V 0.25A 6W AC DC Power Supply IEC62368 IEC60335 IEC61558 UL1310

12V 0.5A 24V 0.25A 6W AC DC Power Supply IEC62368 IEC60335 IEC61558 UL1310

12V 0.5A 24V 0.25A 6W AC DC Power Supply IEC62368 IEC60335 IEC61558 UL1310

DC Connector
12V 0.5A 24V 0.25A 6W AC DC Power Supply IEC62368 IEC60335 IEC61558 UL1310

Packing
12V 0.5A 24V 0.25A 6W AC DC Power Supply IEC62368 IEC60335 IEC61558 UL1310

Advantage:

1> Stable raw material supplier & worker managementsystems to control the price
2> Worldside certificates of FCC CE ROHS TUV BS ERP SAA C-TICK KC PSE CB etc
3> 100000pc/day with a complete set of production lineand testing equipments 50 professional technicians

4> Over 16 years and strict QA/QC systems
5> Free Samples
6> 3 Years WarrantySupport OEM & ODM
