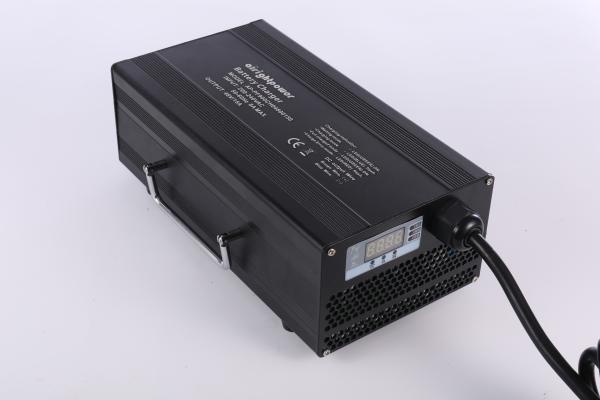

1000W 1200W 1500W AC DC Converter Power Supply Black Color Automatic Shutdown
1000W 1200W 1500W AC DC Converter Power Supply Black Color Automatic Shutdown
1000W 1200W 1500W AC DC Converter Power Supply Black Color Automatic Shutdown
1000W 1200W 1500W AC DC Converter Power Supply Black Color Automatic Shutdown
Specifications
Brand Name :
Alrightpower
Model Number :
AP-PN900-1500
Certification :
UL,FCC,CB,CE,UKCA,CCC,PSE,KC,RCM etc
Place of Origin :
China
MOQ :
50PCS
Payment Terms :
T/T, Western Union
Supply Ability :
50000PCS/Day
Delivery Time :
30 working days
Packaging Details :
Individul Pe Bag Packing or others
Input :
100-240V 50/60HZ
Output :
1500W Max
Material :
ABS+PC
Color :
Black, White Or Others
Protection :
OCP, OLP, OVP And Others
Logo :
Fullpower Or Custom Made
Description

1000W 1200W1500W High Power Dc Power Supply Ac Dc Converter Power Supply

Features Technology:

Input low-voltage&over-voltage protection
Overheat protection
Output empty-load protection
Output short&reverse protection
Output over-current&over-voltage protection
Automatic shutdown when fully charged

Specifications PRODUCTS PICTURE

900W-1500W BATTERY CHAEGER

l AC Input Voltage Range:AC100V-AC 240V

l AC Input Frequency: 45～65HZ

l AC Power Factor Correction: ≥0.98

l Output Voltage:12V～90V

l Output Current:60A(Max)

l Full Load Efficiency: ≥90%

l Shock & Vibration: 10～50HZ 2G 10 minutes,X,Y,Z /60 minutes

l Operating Temperature: -20ºC～+45ºC(-20ºF～+113ºF)

l Storage Temperature: -40ºC～+85ºC(-40ºF～+185ºF)

l Dimensions (mm):(L)266х(W)142х(H)91

l Net Weight: 3kg

 1000W 1200W 1500W AC DC Converter Power Supply Black Color Automatic Shutdown
TYPICAL MODEL LIST
Charger Model Rated Input Voltage Battery Standard Voltage Maximum charging Current Maximum charging Current
AP-PF900CH01460600 100-240 12 14.6 60
AP-PF900CH02920300 100-240 24 29.2 30
AP-PF900CH04200200 100-240 36 42 20
AP-PF900CH05460150 100-240 48 54.6 15
AP-PF900CH07140120 100-240 60 71.4 12
AP-PF900CH0840100 100-240 72 84 10
AP-PF900CH01200600 100-240 12 14.7 60
AP-PF900CH02400300 100-240 24 29.4 30
AP-PF900CH03600200 100-240 36 44.1 20
AP-PF900CH04800150 100-240 48 58.8 15
AP-PF900CH06000120 100-240 60 73.5 12
AP-PF900CH07200100 100-240 72 88.2 10
SPECIFICATIONS
AC Input Voltage Range: AC100V-AC 240V Shock & Vibration: 10～50HZ 2G 10 minutes,X,Y,Z /60 minutes
AC Input Frequency: 45～65HZ Operating Temperature: -20ºC～45ºC(-20ºF～+113ºF)
AC Power Factor Correction: ≥0.98 Storage Temperature: -40ºC～+85ºC(-40ºF～185ºF)
Output Voltage: 12V～90V Dimensions (mm): (L)266х(W)142х(H)91
Output Current: 60A(Max) Net Weigh: 3kg
Full Load Efficiency: ≥90% certifications UL CE FCC RoHs
Protections

Thermal Self-Protection

Charger will be stopped automatically when reaches to Maximum temperature , LED light will be red to warn it

Short- circuit Protection

When Short Circuit happened ,charger will turn off

Reverse Connection Protection

When the battery is polarity reversed ,the charger will cut off the connection between the circuit and the battery

Battery Broken protection

When some battery broke ,battery can not reach 100% full-charged ,charger will be shut down automatically

MECHANICAL SPECIFICATION
1000W 1200W 1500W AC DC Converter Power Supply Black Color Automatic Shutdown

Application
1000W 1200W 1500W AC DC Converter Power Supply Black Color Automatic Shutdown

FAQ

1. MOQ:
For common products, we don't have MOQ limit, you can order any quantity you want if we have stocks.
If you need scooters with your specification, logo, packing, etc, please negotiate with us.

2. Delivery date:
25days after order confirmed.(maybe it's slower than other sellers, it's because we need time to make sure and test the material quality. quality is our priority!)

3. OEM Service:
We can produce scooters with your logo, brand, packing. MOQ is 100pcs/model.
If your trail order is less than 100pcs, please pay us 100USD for OEM.
We will refund you once your order is over 100pcs.

4. Warranty:
All our scooters are with 3 months warranty.
During the warranty time, if any scales is out of service because of quality problem,
we will send you spare parts and teach you how to repair until problem solved.
and we will afford all the freight cost for warranty.

5. Payment Method:
L/C at sight, T/T, Western Union and Paypal are all available.

6. Visit our factory:
Welcome visit our factory at any time, and we will pick up you.
