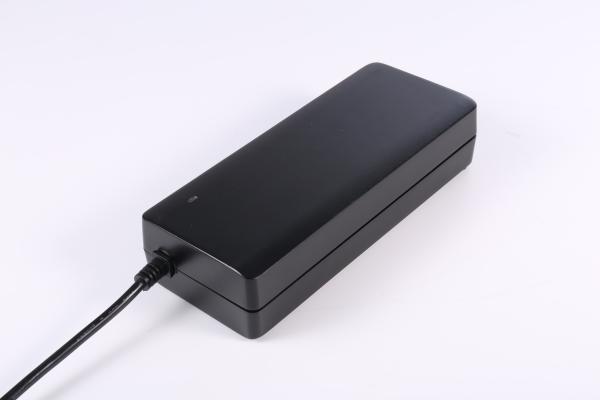

E Bike Scooter EV Battery Charger 90W 100W Intelligent Household Rechargeable
E Bike Scooter EV Battery Charger 90W 100W Intelligent Household Rechargeable
E Bike Scooter EV Battery Charger 90W 100W Intelligent Household Rechargeable
E Bike Scooter EV Battery Charger 90W 100W Intelligent Household Rechargeable
Specifications
Brand Name :
Alrightpower
Model Number :
AP-PN100
Certification :
UL,FCC,CB,CE,UKCA,CCC,PSE,KC,RCM etc
Place of Origin :
China
MOQ :
500PCS
Payment Terms :
T/T, Western Union
Supply Ability :
50000PCS/Day
Delivery Time :
30 working days
Packaging Details :
Individul Pe Bag Packing or others
Input :
100-240V 50/60HZ
Output :
DC 100W Max
Material :
ABS+PC
Color :
Black, White Or Others
Protection :
OCP, OLP, OVP And Others
Logo :
Fullpower Or Custom Made
Description

90W 100W intelligent household battery charger for rechargeable batteries E-bike Scooters

• Max Output Power: 100W

• Typical output: 12V14.7A, 24V3.5A, 36V2.5A, 48V1.8A etc

• ETL, FCC, CE, CB, UKCA etc certifications for different countries

• Meet the US DoE level VI, EU CoC Tier 2 efficiency standards

• Certificate standard contain IEC61558, IEC62368, IEC60335 etc

E Bike Scooter EV Battery Charger 90W 100W Intelligent Household Rechargeable深圳市盈源电子有限公司

Shenzhen YingYuan Electronics Co., Ltd

Address:The 4-7th Floor, Building 8, HongYe Industrial Park,

XiXiang Town, BaoAn District, ShenZhen, China
Specifications PRODUCTS PICTURE

100W BATTERY CHAEGER

l AC Input Voltage Range:AC100V～AC240V

l AC Input Frequency: 45～65HZ

l AC Power Factor Correction: ≥0.98

l Output Voltage:12V～60V

l Output Current:7A(Max)

l Full Load Efficiency: ≥90%

l Shock & Vibration: 10～50HZ 2G 10 minutes,X,Y,Z /60 minutes

l Operating Temperature: -20ºC～+45ºC(-20ºF～+113ºF)

l Storage Temperature: -40ºC～+85ºC(-40ºF～+185ºF)

l Dimensions (mm):(L)141х(W)60х(H)32

l Net Weight: 0.35kg

 E Bike Scooter EV Battery Charger 90W 100W Intelligent Household Rechargeable
TYPICAL MODEL LIST
Charger Model Rated Input Voltage Barrery Standard Voltage Maximum charging Current Maximum charging Current
AP-PN100CH01460070 100-240 12 14.6 7
AP-PN100CH02920035 100-240 24 29.2 3.5
AP-PN100CH04200025 100-240 36 42 2.5
AP-PN100CH05460020 100-240 48 54.6 2
AP-PN100CH01200070 100-240 12 14.7 7
AP-PN100CH02400035 100-240 24 29.4 3.5
AP-PN100CH03600025 100-240 36 42 2.5
AP-PN100CH04800018 100-240 48 58.8 1.8
SPECIFICATIONS
AC Input Voltage Range: AC100V～AC240V Shock & Vibration: 10～50HZ 2G 10 minutes,X,Y,Z /60 minutes
AC Input Frequency: 45～65HZ Operating Temperature: -20ºC～45ºC(-20ºF～+113ºF)
AC Power Factor Correction: ≥0.98 Storage Temperature: -40ºC～+85ºC(-40ºF～185ºF)
Output Voltage: 12V～60V Dimensions (mm): (L)141х(W)60х(H)32
Output Current: 7A(Max) Net Weigh: 0.35kg
Full Load Efficiency: ≥90% certifications UL CE FCC RoHs
Protections

Thermal Self-Protection

Charger will be stopped automatically when reaches to Maximum temperature , LED light will be red to warn it

Short- circuit Protection

When Short Circuit happened ,charger will turn off

Reverse Connection Protection

When the battery is polarity reversed ,the charger will cut off the connection between the circuit and the battery

Battery Broken protection

When some battery broke ,battery can not reach 100% full-charged ,charger will be shut down automatically
Application

Electric Bicycles/Tricycles/Scooters /Power tools and other electric-related equipment

MECHANICAL SPECIFICATION
E Bike Scooter EV Battery Charger 90W 100W Intelligent Household Rechargeable
