5W Universal Ac Dc Power Adapter 3a Power Adapter 2a Power Adapter Computer Power Supply Adapter

About Yingyuan

Shenzhen Yingyuan electronics Co.LTD is a high-techenterprise intergrating researcher and development,production,sales and service

.It was founded on 2006. Our products mainly involve power adapter,power cord,charger,LED drive power supply,mobile power supply,

switching power supply,lightingappliances,LCD display and so on.Enterprise in product technology hasquite mature aspects:independent original

factory production ,and perfected the quality first,customers and suppliers as the center ofmanagement thoughts-integrating internal sales,technology,

service,after-sales servies resources,so as to establish a unified customer response,sevice center technical support , truly achieve trade,productionof

"one-stop"service system.

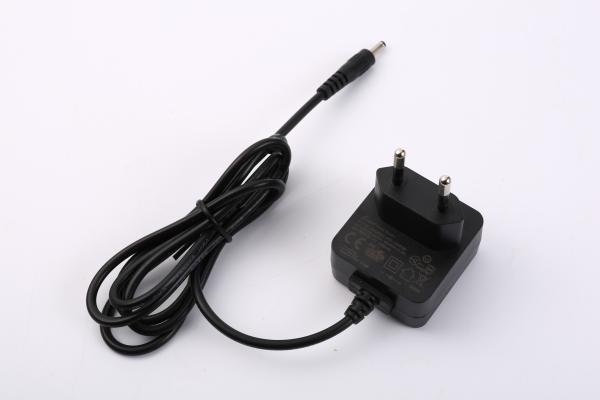

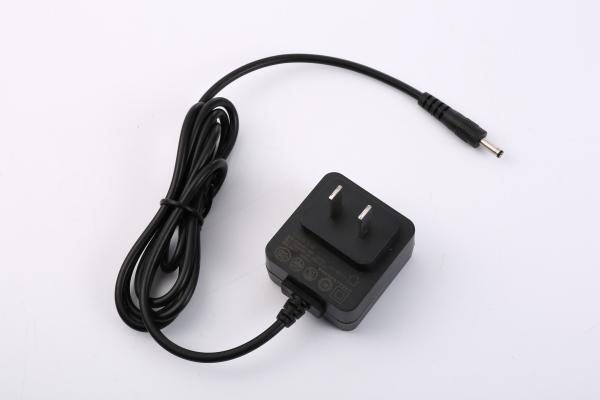

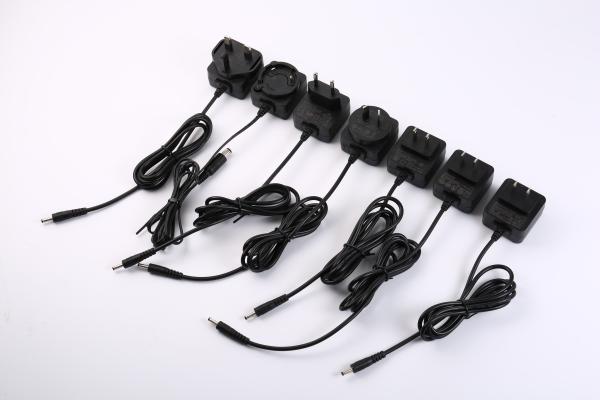

FEATURES			SAFETIES APPROVALS		PRODUCTS PICTURE
v EFFICIENCY VI v 0-6 WATT OUTPUT POWER v OVERCURRENT PROTECTION v SHORT CIRCUIT PROTECTION v INPUT PROTECTION v ROHS COMPLIANT			Multi-Blade Type v UL,FCC v CB,CE,UKCA v SAA,PSE,CCC,KC,BIS,BSMI v REACH, ROHS
TYPICAL MODEL LIST
I/P Voltage	Typical model		Output Voltage	Output Current	Ripple & noise		Efficiency
90 - 264V 47 - 63HZ	ICP06-050-0500		5V	500mA	30mV		Doe 6V
	ICP06-050-1000		5V	1000mA	40mV		Doe 6V
	ICP06-050-1200		5V	1200mA	50mV		Doe 6V
	ICP06-090-0500		9V	670mA	70mV		Doe 6V
	ICP06-120-0500		12V	500mA	50mV		Doe 6V
	ICP06-240-0250		24V	250mA	50mV		Doe 6V
INPUT SPECIFICATIONS				GENERAL SPECIFICATIONS
Input Voltage		90〜264VAC		Primary to Secondary		50MΩ MIN
Input Frequency		47〜63Hz		Efficiency		VI
Input Current		0.3 Max		Standby Power		0.1W MAX
Inrush Current		40A Max		Leakage Current		0.25mA MAX
OUTPUT SPECIFICATIONS				ENVIRONMENTAL SPECIFICATIONS
Output Voltage Range		5.0V-24.0V		Operating Temperature		10°C~40°C
Output Current Range		100mA-1200mA		Cooling		Convection
Output Power Range		6.0W Max		Temperature Coefficient		0.05%/°C
Short Circuit Protection		Automatic Recovery		Humidity		5~95%RH(non-condensing)
Over-Current Protection		Automatic Recovery		Storage Temperature		-20°C~+80%°C
Ripple and Noise		100mVp-p max		PHYSICAL SPECIFICATIONS
Turn On Time		20-30mS normal		Physical Specifications		43.1mm *40.2mm *22.3mm
Line Regulation		1% max		SAFETIES STANDARD
Output Regulation		±5%		Safeties Standard		62368 / 60950/ 60335/ 61558/ 60065 /UL1310

Certification

Delivery

FAQ:

Q: Are you the manufacturer?
A: Yes, we are a professional power adapter manufacturer

Q: How many employees do you have?

A: About 800 employees, professional production staff, QC department, experienced R&D engineers and enthusiastic sales staff.

Q: How do you usually ship the goods?
A: For small order,by express. For large order,If you need urgently,by air and also can by
sea,but take much time. But we promise to find the most economic and safe way to
delivery the goods for you.

Q: How to choose suitable power adapter ?
A: (a) Please kindly tell us what's the power adapter will be use for?
The EN60601 is for medical equipments, EN60950 is for consumer electronics' devices,
home appliance is EN61558 standard.
(b) If your product working current is 1A, we suggest you to use 12v 1. 5A model, so the
adapter's temperature is low ,and have a long working life, usually it's double times.

Q: How does your factory do related quality control?
A: Quality is top priority. Firstly, we will control the raw material; secondly, every worker
does his job on the production line to ensure the professional; lastly, all products will be
full tested well before packing.

Q: Can I get samples to test quality before place order ?
A: Yes, free samples can be offered to you but need you bear the shipping cost.

Q: How long is your lead time?
A: Sample lead time is 3 -5days.
Mass production lead time is 7-15 days depending on the quantity.

Q: How do you make our business long-term and good relationship?
A: (a) We keep good quality and competitive price to ensure our customers benefit ;
(b) We respect every customer as our friend and we sincerely do business and make
friends with them, no matter where they come from.
