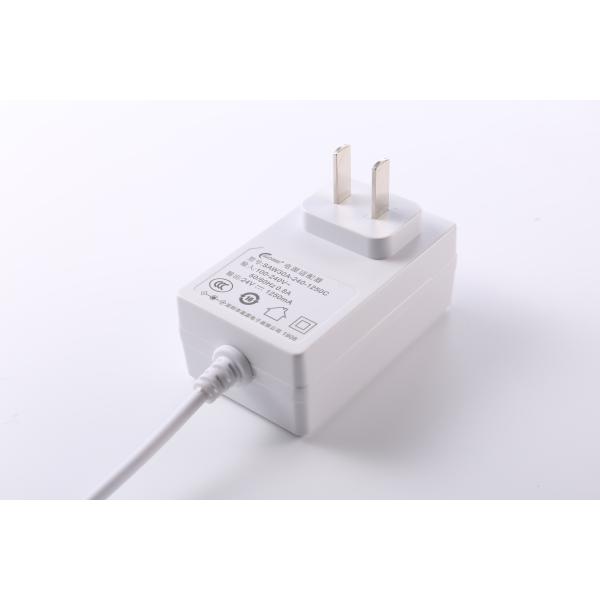

30W AU US EU UK Interchangeable Plug Power Adapter 5V 3A 12V 2.5A 12V 2A 24V 1A
30W AU US EU UK Interchangeable Plug Power Adapter 5V 3A 12V 2.5A 12V 2A 24V 1A
30W AU US EU UK Interchangeable Plug Power Adapter 5V 3A 12V 2.5A 12V 2A 24V 1A
30W AU US EU UK Interchangeable Plug Power Adapter 5V 3A 12V 2.5A 12V 2A 24V 1A
30W AU US EU UK Interchangeable Plug Power Adapter 5V 3A 12V 2.5A 12V 2A 24V 1A
30W AU US EU UK Interchangeable Plug Power Adapter 5V 3A 12V 2.5A 12V 2A 24V 1A
Specifications
Brand Name :
Fullpower
Model Number :
19020
Certification :
FCC,UL,CE,UKCA,SAA,KC,PSE,CCC,etc
Place of Origin :
China
MOQ :
1000PCS
Payment Terms :
T/T, Western Union
Supply Ability :
100000PCS/Day
Delivery Time :
30 working days
Packaging Details :
Individul Pe Bag Packing or others
Item :
30W Interchangeable Plug Power Adapter
Input :
100-240V 50/60HZ
Output :
DC 30W Max
AC Plug :
AU EU UK US CN KR
DC Connector :
Custom make
Material :
ABS+PC
Color :
Black, White Or Others
Protection :
OCP, OLP, OVP And Others
Logo :
Fullpower Or Custom Make
Warranty :
3 Years
Description

30W 5V3A 12V2.5A 12V2A 24V1A Interchangeable Plug

Why choose us ?

1>Reasonable price ! High Quality! Kindly Service!

2>Flexible payment accept:T/T, Western uion , Paypal,Alibaba Assurance

3>Different kinds of shipping Mothod, by air , by boat!

Data-sheet

FEATURES SAFETIES APPROVALS PRODUCTS PICTURE

v EFFICIENCY VI

v 12-30 WATT OUTPUT POWER

v AU US UK EU CN JP KR Plugs

v OVERCURRENT PROTECTION

v SHORT CIRCUIT PROTECTION

v INPUT PROTECTION

v ROHS COMPLIANT

Multi-blade Type

v UL,FCC

v CB,CE,UKCA

v SAA,PSE,CCC,KC,BIS,BSMI

v REACH, ROHS

 30W AU US EU UK Interchangeable Plug Power Adapter 5V 3A 12V 2.5A 12V 2A 24V 1A
TYPICAL MODEL LIST
I/P Voltage Typical model Output Voltage Output Current Ripple & noise Efficiency

90 - 264V

47 - 63HZ

 ICP30-090-2000 9V 2000mA 90mV Level 6 VI
ICP30-090-3000 9V 3000mA 90mV Level 6 VI
ICP30-120-2000 12V 2000mA 120mV Level 6 VI
ICP30-120-2500 12V 2500mA 120mV Level 6 VI
ICP30-180-1000 18V 1000mA 150mV Level 6 VI
ICP30-240-1000 24V 1000mA 150mV Level 6 VI
INPUT SPECIFICATIONS GENERAL SPECIFICATIONS
Input Voltage 90〜264VAC Primary to Secondary 50MΩ MIN
Input Frequency 47〜63Hz Efficiency VI
Input Current 0.8A Max Standby Power 0.2W MAX
Inrush Current 40A Max Leakage Current 0.25mA MAX
OUTPUT SPECIFICATIONS ENVIRONMENTAL SPECIFICATIONS
Output Voltage Range 5.0V-48.0V Operating Temperature 10°C~40°C
Output Current Range 100mA-3500mA Cooling Convection
Output Power Range 30.0W Max Power Temperature Coefficient 0.05%/°C
Short Circuit Protection Automatic Recovery Humidity 5~95%RH(non-condensing)
Over-Current Protection Automatic Recovery Storage Temperature -20°C~+80%°C
Ripple and Noise 100mVp-p max PHYSICAL SPECIFICATIONS
Turn On Time 20-30mS normal Physical Specifications 71.4mm *43.4mm *29.4mm
Line Regulation 1% max SAFETIES STANDARD
Output Regulation ±5% Safeties Standard 62368 / 60950/ 60335/ 61558/ 60065 / UL1310


Product Pictures

30W AU US EU UK Interchangeable Plug Power Adapter 5V 3A 12V 2.5A 12V 2A 24V 1A

30W AU US EU UK Interchangeable Plug Power Adapter 5V 3A 12V 2.5A 12V 2A 24V 1A

30W AU US EU UK Interchangeable Plug Power Adapter 5V 3A 12V 2.5A 12V 2A 24V 1A
