12V 2.5A 30W 12V 2A AC DC Adapter 5V 3A 24V 1A 2.1*5.5 2.5*5.5 Connector
12V 2.5A 30W 12V 2A AC DC Adapter 5V 3A 24V 1A 2.1*5.5 2.5*5.5 Connector
12V 2.5A 30W 12V 2A AC DC Adapter 5V 3A 24V 1A 2.1*5.5 2.5*5.5 Connector
12V 2.5A 30W 12V 2A AC DC Adapter 5V 3A 24V 1A 2.1*5.5 2.5*5.5 Connector
12V 2.5A 30W 12V 2A AC DC Adapter 5V 3A 24V 1A 2.1*5.5 2.5*5.5 Connector
12V 2.5A 30W 12V 2A AC DC Adapter 5V 3A 24V 1A 2.1*5.5 2.5*5.5 Connector
12V 2.5A 30W 12V 2A AC DC Adapter 5V 3A 24V 1A 2.1*5.5 2.5*5.5 Connector
12V 2.5A 30W 12V 2A AC DC Adapter 5V 3A 24V 1A 2.1*5.5 2.5*5.5 Connector
Specifications
Brand Name :
Fullpower
Model Number :
19020
Certification :
FCC,UL,CE,UKCA,SAA,KC,PSE,CCC,etc
Place of Origin :
China
MOQ :
1000PCS
Payment Terms :
T/T, Western Union
Supply Ability :
100000PCS/Day
Delivery Time :
30 working days
Packaging Details :
Individul Pe Bag Packing or others
Item :
30W AC DC Power Adapter
Input :
100-240V 50/60HZ
Output :
DC 30W Max
Material :
ABS+PC
Color :
Black, White Or Others
Protection :
OCP, OLP, OVP And Others
Logo :
Fullpower Or Custom Make
Warranty :
3 Years
Description

30W AC DC Power Adapter

• Max Output Power: 30W

• Typical output: 5V3A 12V2.5A 12V2A 24V1A etc

• UL,FCC,CE,CB,UKCA,SAA,KC,PSE,CCC,EAC etc for different countries

Data-sheet

FEATURES SAFETIES APPROVALS PRODUCTS PICTURE

v EFFICIENCY VI

v 12-30 WATT OUTPUT POWER

v OVERCURRENT PROTECTION

v SHORT CIRCUIT PROTECTION

v INPUT PROTECTION

v ROHS COMPLIANT

v UL

v CB

v FCC

v ROHS

v REACH

 12V 2.5A 30W 12V 2A AC DC Adapter 5V 3A 24V 1A 2.1*5.5 2.5*5.5 Connector
TYPICAL MODEL LIST
I/P Voltage Typical model Output Voltage Output Current Ripple & noise Efficiency

90 - 264V

47 - 63HZ

 SAW30-090-2000 9V 2000mA 90mV VI
SAW30-090-3000 9V 3000mA 90mV VI
SAW30-120-2000 12V 2000mA 120mV VI
SAW30-120-2500 12V 2500mA 120mV VI
SAW30-180-1000 18V 1000mA 150mV VI
SAW30-240-1000 24V 1000mA 150mV VI
INPUT SPECIFICATIONS GENERAL SPECIFICATIONS
Input Voltage 90〜264VAC Primary to Secondary 50MΩ MIN
Input Frequency 47〜63Hz Efficiency VI
Input Current 1.2A Max Standby Power 0.1W MAX
Inrush Current 40A Max Leakage Current 0.25mA MAX
OUTPUT SPECIFICATIONS ENVIRONMENTAL SPECIFICATIONS
Output Voltage Range 5V-36V Operating Temperature 10°C~40°C
Output Current Range 100mA-3500mA Cooling Convection
Output Power Range 30W Max Temperature Coefficient 0.05%/°C
Short Circuit Protection Automatic Recovery Humidity 5~95%RH(non-condensing)
Over-Current Protection Automatic Recovery Storage Temperature -20°C~+80%°C
Ripple and Noise 100mVp-p max PHYSICAL SPECIFICATIONS
Turn On Time 20-30mS normal Physical Specifications 71mm *43mm *29mm
Line Regulation 1% max SAFETIES STANDARD
Output Regulation ±5% Safeties Standard 62368 / 60950/ 60335/ 61558/ 60065

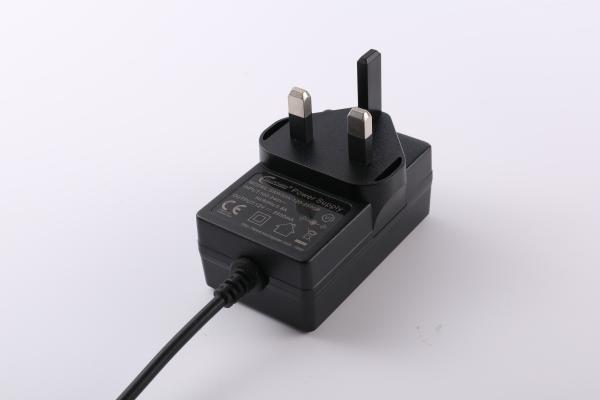

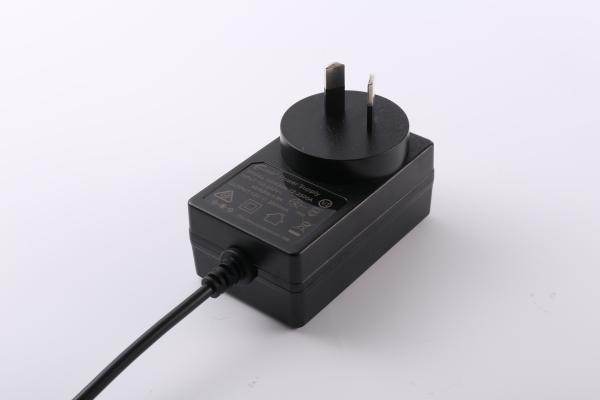

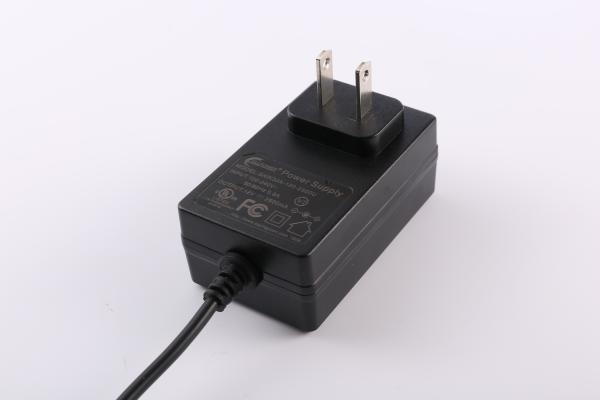

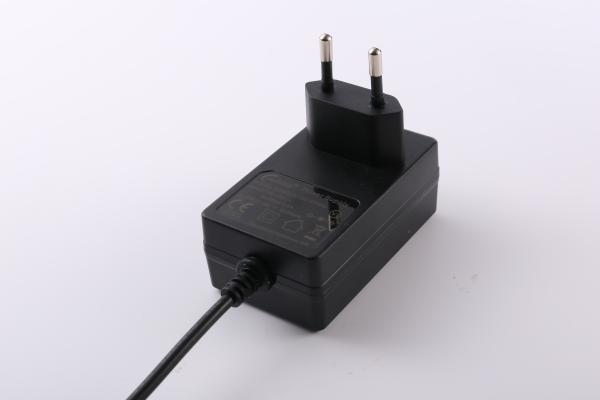

Pictures of product

12V 2.5A 30W 12V 2A AC DC Adapter 5V 3A 24V 1A 2.1*5.5 2.5*5.5 Connector

12V 2.5A 30W 12V 2A AC DC Adapter 5V 3A 24V 1A 2.1*5.5 2.5*5.5 Connector

12V 2.5A 30W 12V 2A AC DC Adapter 5V 3A 24V 1A 2.1*5.5 2.5*5.5 Connector

Q5: Can you provide OEM & ODM service?
A5: OEM & ODM are warmly welcome. We can provide custom service for products, labels, package as your demands.


Q6: What’s your payment terms?
A6: Standard terms: T/T in advance. Big order: L/C at sight. Sample fees: Paypal and Western Union.


Q7: What about delivery time?
A7: 1,000PCS can be sent in 24 hours. 1,000-5,000PCS can be sent in 72 hours . 5,000-20,000PCS can be sent in 5 days. 20,000PCS can be sent in 1 week.


Q8: How do you usually ship the goods?
A8: For small order, by express; For large order, by sea; If you need goods urgently, by air. And we promise to find the most economic and safe way to delivery the goods for you.
