5V 2A 5V 2.5A 15W 12V 1.25A Power Adapter UL CE UKCA SAA CCC KC PSE Approved
5V 2A 5V 2.5A 15W 12V 1.25A Power Adapter UL CE UKCA SAA CCC KC PSE Approved
5V 2A 5V 2.5A 15W 12V 1.25A Power Adapter UL CE UKCA SAA CCC KC PSE Approved
5V 2A 5V 2.5A 15W 12V 1.25A Power Adapter UL CE UKCA SAA CCC KC PSE Approved
5V 2A 5V 2.5A 15W 12V 1.25A Power Adapter UL CE UKCA SAA CCC KC PSE Approved
5V 2A 5V 2.5A 15W 12V 1.25A Power Adapter UL CE UKCA SAA CCC KC PSE Approved
5V 2A 5V 2.5A 15W 12V 1.25A Power Adapter UL CE UKCA SAA CCC KC PSE Approved
5V 2A 5V 2.5A 15W 12V 1.25A Power Adapter UL CE UKCA SAA CCC KC PSE Approved
Specifications
Brand Name :
Fullpower
Model Number :
20190
Certification :
FCC,UL,CE,UKCA,SAA,KC,PSE,CCC,etc
Place of Origin :
China
MOQ :
1000PCS
Payment Terms :
T/T, Western Union
Supply Ability :
100000PCS/Day
Delivery Time :
30 working days
Packaging Details :
Individul Pe Bag Packing or others
Item :
15W Series AC DC Power Adapter
Input :
100-240V 50/60HZ
Output :
DC 15W Max
Material :
ABS+PC
Color :
Black, White Or Others
Protection :
OCP, OLP, OVP And Others
Logo :
Fullpower Or Custom Make
Warranty :
3 Years
Description

15W Series AC DC Power Adapter

• Max Output Power: 15W

• Typical output: 5V2A 5V2.5A 12V1A 12V1.25A etc

Data-sheet

FEATURES SAFETIES APPROVALS PRODUCTS PICTURE

v EFFICIENCY VI

v 12-15 WATT OUTPUT POWER

v OVERCURRENT PROTECTION

v SHORT CIRCUIT PROTECTION

v INPUT PROTECTION

v ROHS COMPLIANT

US Type

v UL

v CB

v FCC

v ROHS

v REACH

 5V 2A 5V 2.5A 15W 12V 1.25A Power Adapter UL CE UKCA SAA CCC KC PSE Approved
TYPICAL MODEL LIST
I/P Voltage Typical model Output Voltage Output Current Ripple & noise Efficiency

90 - 264V

47 - 63HZ

 SAW15-050-2000 5V 2000mA 60mV VI
SAW15-050-2500 5V 2500mA 60mV VI
SAW15-120-1000 12V 1000mA 60mV VI
SAW15-120-1250 12V 1250mA 60mV VI
SAW15-150-1000 15V 1000mA 60mV VI
SAW15-240-1600 24V 1600mA 60mV VI
INPUT SPECIFICATIONS GENERAL SPECIFICATIONS
Input Voltage 90〜264VAC Primary to Secondary 50MΩ MIN
Input Frequency 47〜63Hz Efficiency VI
Input Current 1.2A Max Standby Power 0.1W MAX
Inrush Current 40A Max Leakage Current 0.25mA MAX
OUTPUT SPECIFICATIONS ENVIRONMENTAL SPECIFICATIONS
Output Voltage Range 3.60V-36.00V Operating Temperature 10°C~40°C
Output Current Range 100mA-2500mA Cooling Convection
Output Power Range 15W Max Temperature Coefficient 0.05%/°C
Short Circuit Protection Automatic Recovery Humidity 5~95%RH(non-condensing)
Over-Current Protection Automatic Recovery Storage Temperature -20°C~+80%°C
Ripple and Noise 100mVp-p max PHYSICAL SPECIFICATIONS
Turn On Time 20-30mS normal Physical Specifications ~mm *~mm *~mm
Line Regulation 1% max SAFETIES STANDARD
Output Regulation ±5% Safeties Standard 62368 / 60950/ 60335/ 61558/ 60065

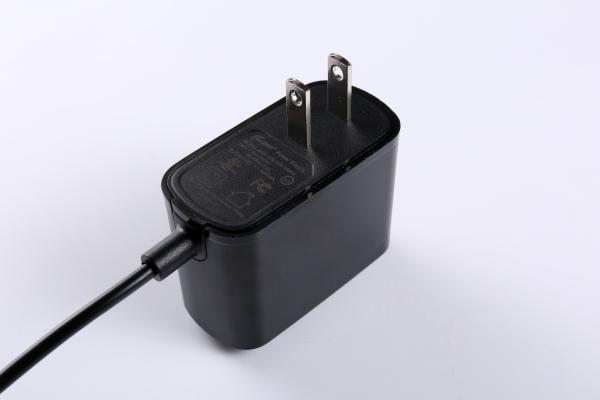

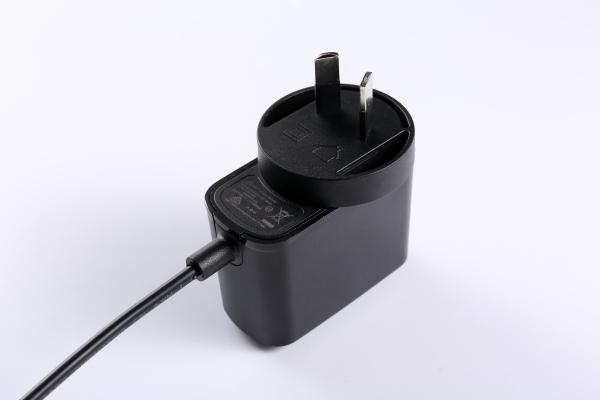

Product Pictures

5V 2A 5V 2.5A 15W 12V 1.25A Power Adapter UL CE UKCA SAA CCC KC PSE Approved

5V 2A 5V 2.5A 15W 12V 1.25A Power Adapter UL CE UKCA SAA CCC KC PSE Approved

5V 2A 5V 2.5A 15W 12V 1.25A Power Adapter UL CE UKCA SAA CCC KC PSE Approved
