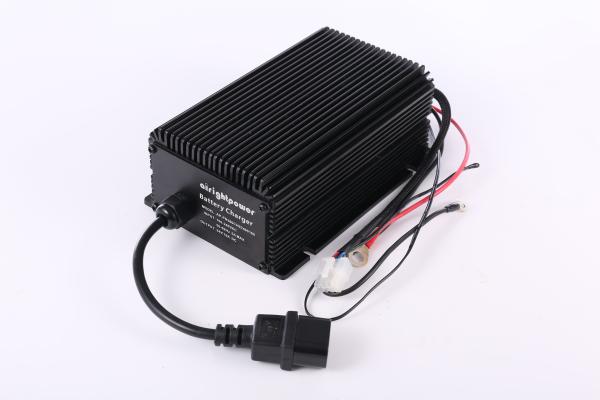

12V 15A 24V 10A 8 AA EV Battery Charger Lithium Ion 360W Rechargeable
12V 15A 24V 10A 8 AA EV Battery Charger Lithium Ion 360W Rechargeable
12V 15A 24V 10A 8 AA EV Battery Charger Lithium Ion 360W Rechargeable
12V 15A 24V 10A 8 AA EV Battery Charger Lithium Ion 360W Rechargeable
Specifications
Brand Name :
Alrightpower
Model Number :
AP-PN360
Certification :
UL,FCC,CB,CE,UKCA,CCC,PSE,KC,RCM etc
Place of Origin :
China
MOQ :
500PCS
Payment Terms :
T/T, Western Union
Supply Ability :
50000PCS/Day
Delivery Time :
30 working days
Packaging Details :
Individul Pe Bag Packing or others
Input :
100-240V 50/60HZ
Output :
360W Max
Material :
ABS+PC
Color :
Black, White Or Others
Protection :
OCP, OLP, OVP And Others
Logo :
Fullpower Or Custom Made
Description

360W Lithium Ion Battery Charger 8 AA Battery Charger Rechargeable Battery Charger

• Max Output Power: 360W

• Typical output: 12V15A, 24V10A, 36V7A,48V6A, etc

• UL,FCC,CE,CB, UKCA, KC, PSE, CCC, etc Certifications

• Meet very high efficiency standards

• Custome make DC connector

12V 15A 24V 10A 8 AA EV Battery Charger Lithium Ion 360W Rechargeable深圳市盈源电子有限公司

Shenzhen YingYuan Electronics Co., Ltd

Address:The 4-7th Floor, Building 8, HongYe Industrial Park,

XiXiang Town, BaoAn District, ShenZhen, China
Specifications PRODUCTS PICTURE

360W BATTERY CHAEGER

l AC Input Voltage Range:AC100V～AC240V

l AC Input Frequency: 45～65HZ

l AC Power Factor Correction: ≥0.98

l Output Voltage:12V～60V

l Output Current:15A(Max)

l Full Load Efficiency: ≥90%

l Shock & Vibration: 10～50HZ 2G 10 minutes,X,Y,Z /60 minutes

l Operating Temperature: -20ºC～+45ºC(-20ºF～+113ºF)

l Storage Temperature: -40ºC～+85ºC(-40ºF～+185ºF)

l Dimensions (mm):(L)183х(W)122.5х(H)69

l Net Weight: 2kg

 12V 15A 24V 10A 8 AA EV Battery Charger Lithium Ion 360W Rechargeable
TYPICAL MODEL LIST
Charger Model Rated Input Voltage Battery Standard Voltage Maximum charging Current Maximum charging Current
AP-PN360CH01460150 100-240 12 14.6 15
AP-PN360CH02920100 100-240 24 29.2 10
AP-PN360CH04200070 100-240 36 42 7
AP-PN360CH05460060 100-240 48 54.6 6
AP-PN360CH01200150 100-240 12 14.6 15
AP-PN360CH02400100 100-240 24 29.2 10
AP-PN360CH03600070 100-240 36 42 7
AP-PN360CH04800060 100-240 48 54.6 6
SPECIFICATIONS
AC Input Voltage Range: AC100V～AC240V Shock & Vibration: 10～50HZ 2G 10 minutes,X,Y,Z /60 minutes
AC Input Frequency: 45～65HZ Operating Temperature: -20ºC～45ºC(-20ºF～+113ºF)
AC Power Factor Correction: ≥0.98 Storage Temperature: -40ºC～+85ºC(-40ºF～185ºF)
Output Voltage: 12V～60V Dimensions (mm): (L)183х(W)122.5х(H)69
Output Current: 15A(Max) Net Weigh: 2kg
Full Load Efficiency: ≥90% Certifications UL CE FCC RoHs
Protections

Thermal Self-Protection

Charger will be stopped automatically when reaches to Maximum temperature , LED light will be red to warn it

Short- circuit Protection

When Short Circuit happened ,charger will turn off

Reverse Connection Protection

When the battery is polarity reversed ,the charger will cut off the connection between the circuit and the battery

Battery Broken protection

When some battery broke ,battery can not reach 100% full-charged ,charger will be shut down automatically
Application Forklift/ground washer/electric motorcycle and so on
MECHANICAL SPECIFICATION PACKING DETAILS
12V 15A 24V 10A 8 AA EV Battery Charger Lithium Ion 360W Rechargeable

2kg/pcs

12pcs/Carton

Carton size: 580*480*185mm

This product has different charging modes basic on different types battery and can trace the charging process correctly.

Main application of charger: e-bike, e-scooters, forklift, Delivery robot, ground washer, electric motorcycle, golf cart, low speed car and so on.
