5V 3A 12V 2.5A 12V 2A 24V 1A Power Supply UL FCC CE SAA KC PSE CCC UKCA
5V 3A 12V 2.5A 12V 2A 24V 1A Power Supply UL FCC CE SAA KC PSE CCC UKCA
5V 3A 12V 2.5A 12V 2A 24V 1A Power Supply UL FCC CE SAA KC PSE CCC UKCA
5V 3A 12V 2.5A 12V 2A 24V 1A Power Supply UL FCC CE SAA KC PSE CCC UKCA
Specifications
Brand Name :
Fullpower
Model Number :
20180
Certification :
FCC,UL,CE,UKCA,SAA,KC,PSE,CCC,etc
Place of Origin :
China
MOQ :
1000PCS
Payment Terms :
T/T, Western Union
Supply Ability :
100000PCS/Day
Delivery Time :
30 working days
Packaging Details :
Individul Pe Bag Packing or others
Item :
30W AC DC Power Supply
Input :
100-240V 50/60HZ
Output :
DC 30W Max
Material :
ABS+PC
Color :
Black, White Or Others
Protection :
OCP, OLP, OVP And Others
Logo :
Fullpower Or Custom Make
Warranty :
3 Years
Description

5V 3A 12V 2.5A 12V 2A 24V 1A AC DC Power Supply UL FCC CE SAA KC PSE CCC UKCA Certificates

About Yingyuan:

Shenzhen Yingyuan electronics Co.Ltd., was found in 2006 isdedicated to design manufacturing /OEM /ODM of various power supply circuit boards,

providing maturesolution,cost-efficient SKD&CKD of the whole set ofmaterials,Including Mobile phone charger,Car Chargerand Wall Socket charger .

We are dedicating to makesolution/product according to customer's requirement,fullyconsidering customer's need about marketing,quality,costand

strategy.

Data-sheet

FEATURES SAFETIES APPROVALS PRODUCTS PICTURE

v EFFICIENCY VI

v 12-30 WATT OUTPUT POWER

v OVERCURRENT PROTECTION

v SHORT CIRCUIT PROTECTION

v INPUT PROTECTION

v ROHS COMPLIANT

US Type

v UL

v CB

v FCC

v ROHS

v REACH

 5V 3A 12V 2.5A 12V 2A 24V 1A Power Supply UL FCC CE SAA KC PSE CCC UKCA
TYPICAL MODEL LIST
I/P Voltage Typical model Output Voltage Output Current Ripple & noise Efficiency Level

90 - 264V

47 - 63HZ

 SAW30G1-090-2000 9V 2000mA 90mV 6 L
SAW30G1-090-3000 9V 3000mA 90mV 6 L
SAW30G1-120-2000 12V 2000mA 120mV 6 L
SAW30G1-120-2500 12V 2500mA 120mV 6 L
SAW30G1-180-1000 18V 1000mA 150mV 6 L
SAW30G1-240-1000 24V 1000mA 150mV 6 L
INPUT SPECIFICATIONS GENERAL SPECIFICATIONS
Input Voltage 90〜264VAC Primary to Secondary 50MΩ MIN
Input Frequency 47〜63Hz Efficiency VI
Input Current 0.8A Max Standby Power 0.3W MAX
Inrush Current 40A Max Leakage Current 0.25mA MAX
OUTPUT SPECIFICATIONS ENVIRONMENTAL SPECIFICATIONS
Output Voltage Range 9.0V-36.0V Operating Temperature 10°C~40°C
Output Current Range 100mA-3000mA Cooling Convection
Output Power Range 30W Max Temperature Coefficient 0.05%/°C
Short Circuit Protection Automatic Recovery Humidity 5~95%RH(non-condensing)
Over-Current Protection Automatic Recovery Storage Temperature -20°C~+80%°C
Ripple and Noise 100mVp-p max PHYSICAL SPECIFICATIONS
Turn On Time 20-30mS normal Physical Specifications 71.2mm *43.0mm *29.2mm
Line Regulation 1% max SAFETIES STANDARD
Output Regulation ±5% Safeties Standard 62368 / 60950/ 60335/ 61558/ 60065

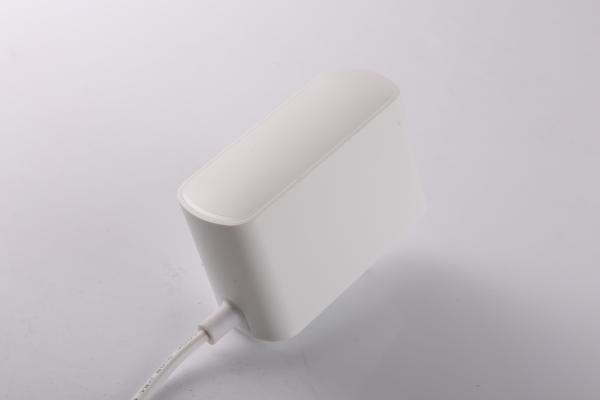

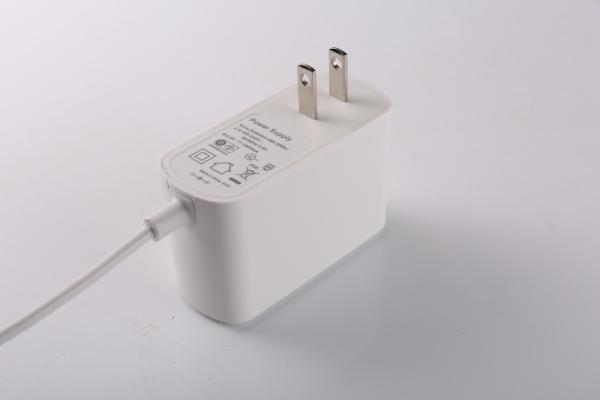

Product Picture

5V 3A 12V 2.5A 12V 2A 24V 1A Power Supply UL FCC CE SAA KC PSE CCC UKCA

5V 3A 12V 2.5A 12V 2A 24V 1A Power Supply UL FCC CE SAA KC PSE CCC UKCA

5V 3A 12V 2.5A 12V 2A 24V 1A Power Supply UL FCC CE SAA KC PSE CCC UKCA

Shipping
5V 3A 12V 2.5A 12V 2A 24V 1A Power Supply UL FCC CE SAA KC PSE CCC UKCA



FQA:

1, Who are We?
We are based in Guangdong ,China Start from 2006,Sell to SoutheastAsia(40.00%),South America(20.00%),Eastern Europe(20.00%),MidEast(20.00%).There are total about 50-100 People in our factory.
2, Why should we buy from you ?
1, We can make OEM&ODM customized products2,Fast Shipping from place order to get products3,Stock available
4, Drop Shipping
5, Quality Warranty and prompt After-sale service
3, What can you buy From us?
Phone&Car Charger |solution SKD&CKD|Data cables and other Mobile PhoneAccessories
4, How can we guarantee quality?
1. Always a pre-production sample before mass production2.Always final inspection before shipment
5, What is you price &payment Terms :
1. Normally price Terms: FOB(free on board),ClF(cost insurance andfreight),EX-work
2. Payment:TT,West Union ,Credit Card and ect
