US EU UK US Plug Rechargeable 9V Battery Charger 48W 2.1*5.5 Female Connector
US EU UK US Plug Rechargeable 9V Battery Charger 48W 2.1*5.5 Female Connector
US EU UK US Plug Rechargeable 9V Battery Charger 48W 2.1*5.5 Female Connector
US EU UK US Plug Rechargeable 9V Battery Charger 48W 2.1*5.5 Female Connector
Specifications
Brand Name :
Fullpower
Model Number :
16190
Certification :
FCC,UL,CE,UKCA,SAA,KC,PSE,CCC,etc
Place of Origin :
China
MOQ :
1000PCS
Payment Terms :
T/T, Western Union
Supply Ability :
100000PCS/Day
Delivery Time :
30 working days
Packaging Details :
Individul Pe Bag Packing or others
Item :
48W Wall-mount Power Adapter
Input :
100-240V 50/60HZ
Output :
DC 48W Max
Material :
ABS+PC
Color :
Black, White Or Others
Protection :
OCP, OLP, OVP And Others
Logo :
Fullpower Or Custom Make
Warranty :
3 Years
Description

48W 9v rechargeable battery and charger 2.1*5.5 female connector us eu uk us plug

Data-sheet

FEATURES SAFETIES APPROVALS PRODUCTS PICTURE

v EFFICIENCY VI

v 36-48 WATT OUTPUT POWER

v OVERCURRENT PROTECTION

v SHORT CIRCUIT PROTECTION

v INPUT PROTECTION

v ROHS COMPLIANT

v UL

v CB

v FCC

v ROHS

v REACH

 US EU UK US Plug Rechargeable 9V Battery Charger 48W 2.1*5.5 Female Connector
TYPICAL MODEL LIST
I/P Voltage Typical model Output Voltage Output Current Ripple & noise Efficiency Level

90 - 264V

47 - 63HZ

 SAW48E-090-5000 9V 5000mA 90mV SIX LEVEL
SAW48E-120-4000 12V 4000mA 90mV SIX LEVEL
SAW48E-150-3000 15V 3000mA 120mV SIX LEVEL
SAW48E-180-2666 18V 2666mA 120mV SIX LEVEL
SAW48E-240-2000 24V 2000mA 150mV SIX LEVEL
SAW48E-360-1333 36V 1333mA 150mV SIX LEVEL
INPUT SPECIFICATIONS GENERAL SPECIFICATIONS
Input Voltage 90〜264VAC Primary to Secondary 50MΩ MIN
Input Frequency 47〜63Hz Efficiency VI
Input Current 1.20A Max Standby Power 0.30W MAX
Inrush Current 40A Max Leakage Current 0.25mA MAX
OUTPUT SPECIFICATIONS ENVIRONMENTAL SPECIFICATIONS
Output Voltage Range 5.00V-36.00V Operating Temperature 10°C~40°C
Output Current Range 100mA-5000mA Cooling Convection
Output Power Range 48.00W Max Temperature Coefficient 0.05%/°C
Short Circuit Protection Automatic Recovery Humidity 5~95%RH(non-condensing)
Over-Current Protection Automatic Recovery Storage Temperature -20°C~+80%°C
Ripple and Noise 100mVp-p max PHYSICAL SPECIFICATIONS
Turn On Time 20-30mS normal Physical Specifications 97.4mm *45.4mm *32.4mm
Line Regulation 1% max SAFETIES STANDARD
Output Regulation ±5% Safeties Standard 62368 / 60950/ 60335/ 61558/ 60065

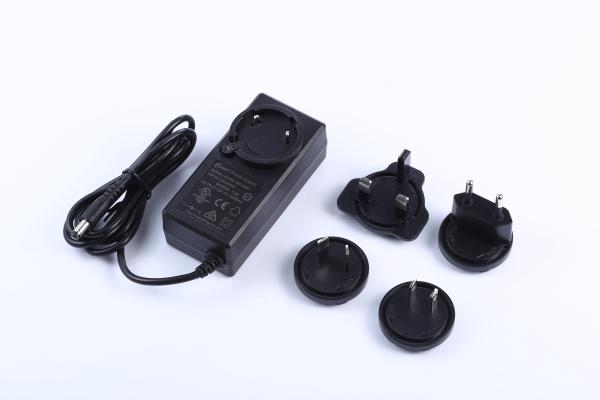

Product pictures

US EU UK US Plug Rechargeable 9V Battery Charger 48W 2.1*5.5 Female Connector

US EU UK US Plug Rechargeable 9V Battery Charger 48W 2.1*5.5 Female Connector

US EU UK US Plug Rechargeable 9V Battery Charger 48W 2.1*5.5 Female Connector

FQA

Q: What countries can our product use to?
A: Our product can be used in USA, Canada, Europe, Australian, New zealand, China, Japan, Korea...
Q: What about our price?
A : Our price is 20% cheaper than same level factory.
Q: How can we pay ?
A: 30% down payment and 70% balance payment before shipment, accept T/T, Paypal
Q : What is our lead time?
A : Samples are 3-5 days . Mass products Usurally 25-30 working days
Q: What is our warranty?
A: Three years warranty

Q: What about our sample service?

A: Samples 1-3 pcs, not high value is free, we can help customer find forwarder.
