ABS PC EV Battery Charger 4.2V 6V 8.4V 12.6V Lithium Lifepo4 Battery Charger
ABS PC EV Battery Charger 4.2V 6V 8.4V 12.6V Lithium Lifepo4 Battery Charger
ABS PC EV Battery Charger 4.2V 6V 8.4V 12.6V Lithium Lifepo4 Battery Charger
ABS PC EV Battery Charger 4.2V 6V 8.4V 12.6V Lithium Lifepo4 Battery Charger
Specifications
Brand Name :
Fullpower
Model Number :
20180
Certification :
FCC,UL,CE,UKCA,SAA,KC,PSE,CCC,etc
Place of Origin :
China
MOQ :
1000PCS
Payment Terms :
T/T, Western Union
Supply Ability :
100000PCS/Day
Delivery Time :
30 working days
Packaging Details :
Individul Pe Bag Packing or others
Item :

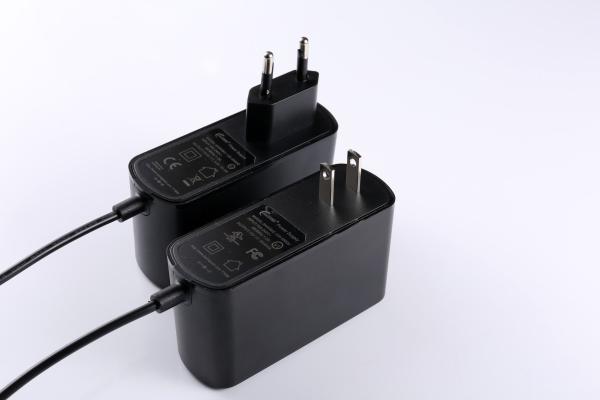

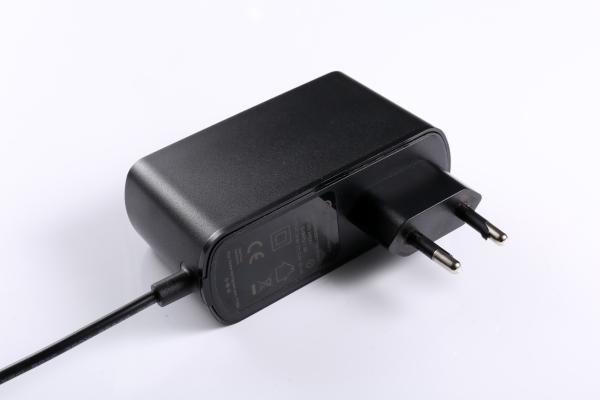

30W Wall-mount Power Adapter
Input :
100-240V 50/60HZ
Output :
DC 30W Max
Material :
ABS PC
Color :
Black, White Or Others
Protection :
OCP, OLP, OVP And Others
Logo :
Fullpower Or Custom Make
Warranty :
3 Years
Description

6 Volt Battery Charger Lifepo4 Battery Charger 4.2 Volt 8.4V 12.6V Charger For Lithium Batte

Data-sheet

FEATURES SAFETIES APPROVALS PRODUCTS PICTURE

v EFFICIENCY VI

v 12-30 WATT OUTPUT POWER

v OVERCURRENT PROTECTION

v SHORT CIRCUIT PROTECTION

v INPUT PROTECTION

v ROHS COMPLIANT

US Type

v UL

v CB

v FCC

v ROHS

v REACH

 ABS PC EV Battery Charger 4.2V 6V 8.4V 12.6V Lithium Lifepo4 Battery Charger
TYPICAL MODEL LIST
I/P Voltage Typical model Output Voltage Output Current Ripple & noise Efficiency

90 - 264V

47 - 63HZ

 SAW30F-090-2000 9V 2000mA 90mV VI
SAW30F-090-3000 9V 3000mA 90mV VI
SAW30F-120-2000 12V 2000mA 120mV VI
SAW30F-120-2500 12V 2500mA 120mV VI
SAW30F-180-1000 18V 1000mA 150mV VI
SAW30F-240-1000 24V 1000mA 150mV VI
INPUT SPECIFICATIONS GENERAL SPECIFICATIONS
Input Voltage 90〜264VAC Primary to Secondary 50MΩ MIN
Input Frequency 47〜63Hz Efficiency VI
Input Current 0.8A Max Standby Power 0.1W MAX
Inrush Current 40A Max Leakage Current 0.25mA MAX
OUTPUT SPECIFICATIONS ENVIRONMENTAL SPECIFICATIONS
Output Voltage Range 9V-36V Operating Temperature 10°C~40°C
Output Current Range 100mA-3000mA Cooling Convection
Output Power Range 30W Max Temperature Coefficient 0.05%/°C
Short Circuit Protection Automatic Recovery Humidity 5~95%RH(non-condensing)
Over-Current Protection Automatic Recovery Storage Temperature -20°C~+80%°C
Ripple and Noise 100mVp-p max PHYSICAL SPECIFICATIONS
Turn On Time 20-30mS normal Physical Specifications 71mm *43mm *29mm
Line Regulation 1% max SAFETIES STANDARD
Output Regulation ±5% Safeties Standard 62368 / 60950/ 60335/ 61558/ 60065

Factory Overview

Shen Zhen Shi Yingyuan Electronics Co.,Ltd wasestablished in 2006 and located in Shenzhen, China, We are a professional manufacturer dedicated at design, manufacture and distribution of a wide range of power supply and charger products.

Strong Facility Strength: Introduced automation transformer equipment,SMT,high speed AI machine,full automatic production line,advanced multi function testing and aging equipment,with the machine substitutions to promote the production capacity and quality leap. Currently.

We pay high attention to not only product quality but also environment protection, we are approved by the IS09001 quality management system and lS014001 environment management system.

ABS PC EV Battery Charger 4.2V 6V 8.4V 12.6V Lithium Lifepo4 Battery Charger
ABS PC EV Battery Charger 4.2V 6V 8.4V 12.6V Lithium Lifepo4 Battery Charger ABS PC EV Battery Charger 4.2V 6V 8.4V 12.6V Lithium Lifepo4 Battery Charger

With more than 30 professional technicians and engineers. our R&D have developed hundreds of products and obtained more than 30 patents.

Our ideas are Integrity Dedication, Practicability, innovation and to be one of the leaders in this industry.
We have all kinds of advanced producing and testing machines for different types of power supply units, and automatic aging system, independent reliable laboratory, EMC Test Machine. We offer not only top quality products, god-like service, but also competitive prices, and this is why we are trusted by all kinds of customers all over the world! We warmly welcome your visit to our company anytimes.
ABS PC EV Battery Charger 4.2V 6V 8.4V 12.6V Lithium Lifepo4 Battery Charger ABS PC EV Battery Charger 4.2V 6V 8.4V 12.6V Lithium Lifepo4 Battery Charger ABS PC EV Battery Charger 4.2V 6V 8.4V 12.6V Lithium Lifepo4 Battery Charger
ABS PC EV Battery Charger 4.2V 6V 8.4V 12.6V Lithium Lifepo4 Battery Charger

3,000,000 PCS

Monthly Production Capacity!

25 Days

Delivery Date!

3-5 Days

Sample Lead Time!

 ABS PC EV Battery Charger 4.2V 6V 8.4V 12.6V Lithium Lifepo4 Battery Charger
ABS PC EV Battery Charger 4.2V 6V 8.4V 12.6V Lithium Lifepo4 Battery Charger ABS PC EV Battery Charger 4.2V 6V 8.4V 12.6V Lithium Lifepo4 Battery Charger ABS PC EV Battery Charger 4.2V 6V 8.4V 12.6V Lithium Lifepo4 Battery Charger

Advantage

Professional

15 years experience of Power Adapters Production
Yingyuan is a professional factory specializing in R&D and production of power adapters only,which doesn’t supply any other hot
selling electronic products. That is why we can keep advanced skills and stable quality all the time.
Top Quality Management System
We have a complete quality assurance system and solutions for the products in questions to ensure products quality and our
outstanding after sale service.
SGS Certification and Assessed Supplier on Alibaba
We have already passed SGS third-party factory inspection and have been an Assessed Supplier on Alibaba
Comprehensive Explanation of AC DC Power Adapters
With so many years experience,it took many years for our team to creat a standard book which is used to help our clients to find
suitable adapters quickly. The particular specification of each model can help you fully understand what products you need.
