Imr 18650 22650 EV Battery Charger 60W 65W For Small Batteries
Imr 18650 22650 EV Battery Charger 60W 65W For Small Batteries
Imr 18650 22650 EV Battery Charger 60W 65W For Small Batteries
Imr 18650 22650 EV Battery Charger 60W 65W For Small Batteries
Imr 18650 22650 EV Battery Charger 60W 65W For Small Batteries
Imr 18650 22650 EV Battery Charger 60W 65W For Small Batteries
Specifications
Brand Name :
Fullpower
Model Number :
16210
Certification :
FCC,UL,CE,UKCA,SAA,KC,PSE,CCC,etc
Place of Origin :
China
MOQ :
1000PCS
Payment Terms :
T/T, Western Union
Supply Ability :
100000PCS/Day
Delivery Time :
30 working days
Packaging Details :
Individul Pe Bag Packing or others
Item :
65W Wall-mount Power Adapter
Input :
100-240V 50/60HZ
Output :
DC 65W Max
Material :
ABS+PC
Color :
Black, White Or Others
Protection :
OCP, OLP, OVP And Others
Logo :
Fullpower Or Custom Make
Warranty :
3 Years
Description

60W 65W Battery Charger For Small Batteries Imr 18650 Battery Charger 22650 Battery Charger

Certification
Factory IS09001, ISO14001, BSCI
EMS EN55022, EN55024, EN61000, EN55014
LVD EN62368, EN60950, EN61558,
UKCA EN62368, EN60950, EN61558
GS IEC62368, IEC61558
CB IEC62368, IEC61558
UL/cUL UL62368
FCC FCC Part 15
PSE J60335, J55014, J3000, J61558,
SAA AS/NZS 60950, AS/NZS 61558, AS/NZS 62368
IRAM IEC60950

Data-sheet

FEATURES SAFETIES APPROVALS PRODUCTS PICTURE

v EFFICIENCY VI

v 48-65W WATT OUTPUT POWER

v OVERCURRENT PROTECTION

v SHORT CIRCUIT PROTECTION

v INPUT PROTECTION

v ROHS COMPLIANT

US Type

v UL

v CB

v FCC

v ROHS

v REACH

 Imr 18650 22650 EV Battery Charger 60W 65W For Small Batteries
TYPICAL MODEL LIST
I/P Voltage Typical model Output Voltage Output Current Ripple & noise Efficiency

90 - 264V

47 - 63HZ

 SAW65D-050-7000 5V 7000mA 90mV VI 6.0
SAW65D-090-6000 9V 6000mA 90mV VI 6.0
SAW65D-120-5000 12V 5000mA 120mV VI 6.0
SAW65D-180-3300 18V 3300mA 120mV VI 6.0
SAW65D-240-2500 24V 2500mA 150mV VI 6.0
SAW65D-480-1250 48V 1250mA 150mV VI 6.0
INPUT SPECIFICATIONS GENERAL SPECIFICATIONS
Input Voltage 90〜264VAC Primary to Secondary 50MΩ MIN
Input Frequency 47〜63Hz Efficiency VI
Input Current 1.2A Max Standby Power 0.3W MAX
Inrush Current 40A Max Leakage Current 0.25mA MAX
OUTPUT SPECIFICATIONS ENVIRONMENTAL SPECIFICATIONS
Output Voltage Range 5.0V-48.0V Operating Temperature 10°C~40°C
Output Current Range 100mA-7000mA Cooling Convection
Output Power Range 65.0W Max Temperature Coefficient 0.05%/°C
Short Circuit Protection Automatic Recovery Humidity 5~95%RH(non-condensing)
Over-Current Protection Automatic Recovery Storage Temperature -20°C~+80%°C
Ripple and Noise 100mVp-p max PHYSICAL SPECIFICATIONS
Turn On Time 20-30mS normal Physical Specifications 117.3mm *50.3mm *33.3mm
Line Regulation 1% max SAFETIES STANDARD
Output Regulation ±5% Safeties Standard 62368 / 60950/ 60335/ 61558/ 60065

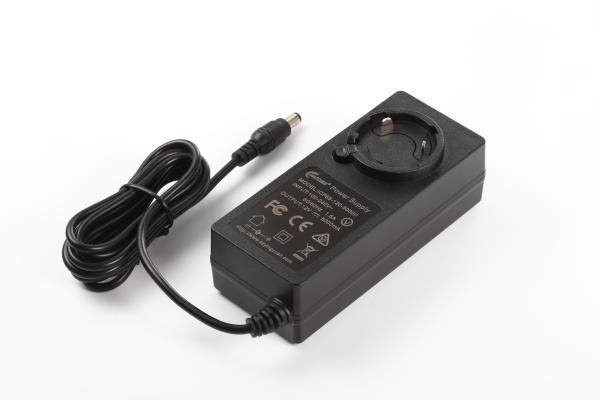

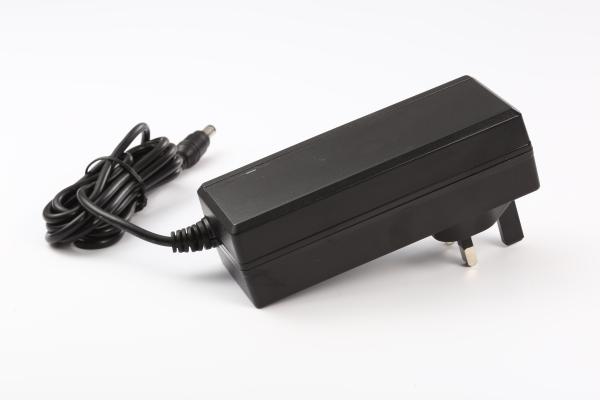

Product Pictures

Imr 18650 22650 EV Battery Charger 60W 65W For Small Batteries

Imr 18650 22650 EV Battery Charger 60W 65W For Small Batteries

Imr 18650 22650 EV Battery Charger 60W 65W For Small Batteries

Advantage

Professional

Focusing on AC adapter marketing and manufacturing, Yingyuan has scientific, intact and efficient quality management system, which extends from product designing, raw material control, on-spot production management to after-sale services with constant, stable and reliable quality assurance.

AQL Acceptance Standards

The final inspection shipments will be in strict accordance with the AQL acceptance standards.The power adapter shall be burnt for
4 hours under normal input and 80% rated load at 40°C +/- 5 °C
Top Quality Management System
ISO9001:2008 system is fully implemented in our management. Our products have passed most of safety approvals in the world, including UL, cUL, FCC, PSE, GS, CE, SAA, CCC, C-tick, CB, etc.
SGS Certification and Assessed Supplier on Alibaba
We have already passed SGS third-party factory inspection and have been an Assessed Supplier on Alibaba

Your smart choice

We believe that we can meet with success only if our clients did it. We sincerely hope that we can achieve a win-win situation
together.
