Gantry Type Laminated Glass Stove CNC Water Jet Cutter 2000*6000mm
Gantry Type Laminated Glass Stove CNC Water Jet Cutter 2000*6000mm
Specifications
Brand Name :
WAMIT
Model Number :
WMT2060-AL
Certification :
CE,ISO
Place of Origin :
CHINA
MOQ :
1 set
Payment Terms :
L/C, T/T
Supply Ability :
30 Set/Sets per Month
Delivery Time :
30 DAYS
Packaging Details :
soft packing in one 20'FCL or wooden case
processing size :
2000*6000mm
pump pressure :
60000psi
Cutting precision :
±0.1mm
loading Weight (KG) :
1200kg/m2
continuous working pressure :
300-380Mpa
brand :
WAMIT
cutting material :
various kinds of glass
Description

Gantry type 2000*6000mm laminated glass stove glass CNC Water Jet Cutter

can waterjet cut toughened glass?

no. Water jets can cut any kind of glass, but water jets cannot cut toughened glass. After the glass is tempered, it cannot be processed again, otherwise it will break.


how to cut glas by water jet cutting machine?

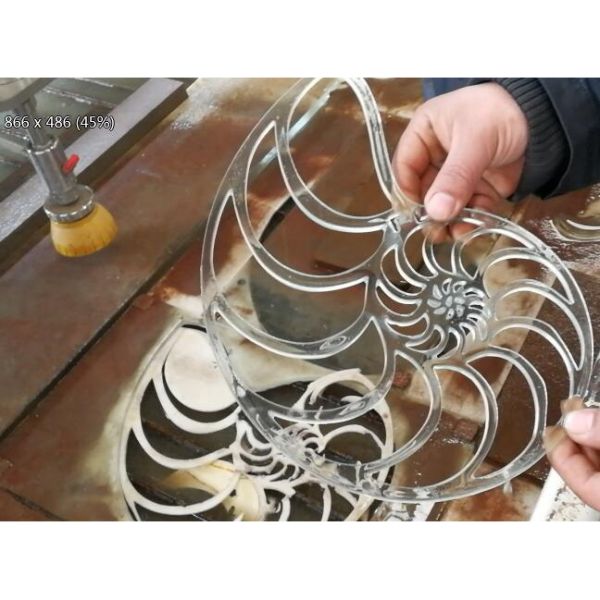

Waterjet cutting glass belongs to cold cutting. The waterjet can cut arcs and sharp corners, and can cut any complex patterns on the plane. It is fully numerically controlled, high in efficiency and good in quality. It is generally used on craft glass. And it can be punched without opening when cutting. The cut surface is ideal. When cutting glass with a water jet, the normal water jet pressure is 260-280MPA. If the pressure is too high, it will cut the glass and cause edge chipping. The choice of cutting speed should be set according to the cutting surface. Generally, the cutting surface is perpendicular to the best speed.


Application of water jet cutter :

Waterjet can be widely used in cutting various materials such as metal, ceramics, stone, glass, cement, paper, rubber, plastic, cloth, polyurethane, wood, leather, ammunition, etc.

Gantry Type Laminated Glass Stove CNC Water Jet Cutter 2000*6000mm

60000psi triplex pump for water jet cutter

Our servo motor Direct drive pump
  • Cutting speed is 20% higher at the same pressure with intensifier pump
  • Working noise is only 40DB
  • Smaller size
  • Only 15kw, Save 60% electricity cost. The whole machine is only with 30kw, Instantaneous current is 30A, working current is 30A. the motor only start work if you open high pressure valve.
  • Can work 24 hours
  • Save sand and water if cut same pieces as intensifier pump. Or cut more pieces within the same cutting hours. As we tested, for a stone cutting factory, can save about USD 15000 cutting cost.
  • We requests maintenance every 250-300 high pressure cutting hours.

Gantry Type Laminated Glass Stove CNC Water Jet Cutter 2000*6000mm
