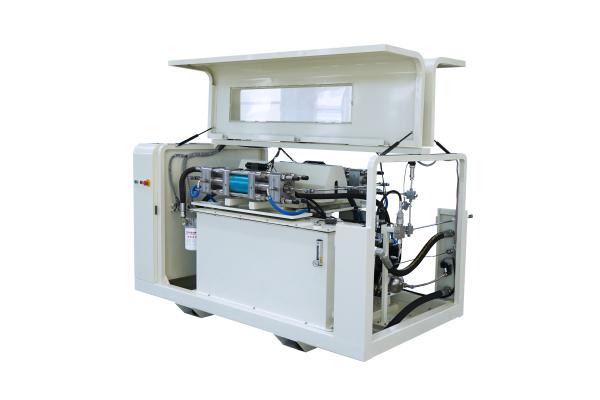

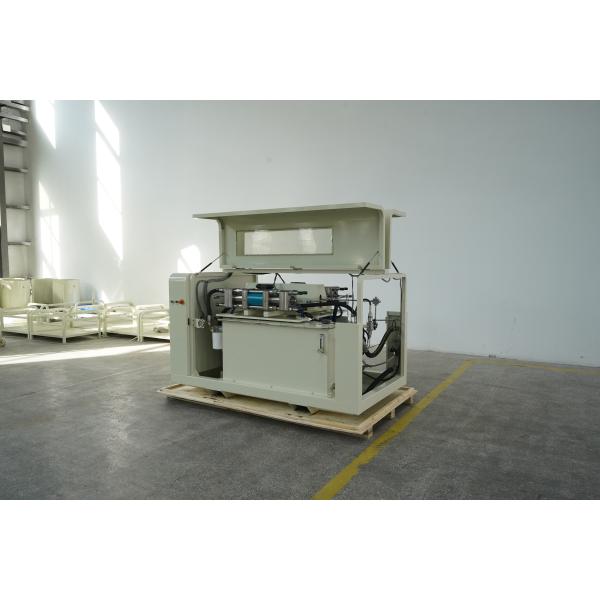

600mpa 87000psi 100HP 75kw 300mm steel cutting Siemens Motor Water Jet Cutting Intensifier Pump
600mpa 87000psi 100HP 75kw 300mm steel cutting Siemens Motor Water Jet Cutting Intensifier Pump
600mpa 87000psi 100HP 75kw 300mm steel cutting Siemens Motor Water Jet Cutting Intensifier Pump
600mpa 87000psi 100HP 75kw 300mm steel cutting Siemens Motor Water Jet Cutting Intensifier Pump
Specifications
Brand Name :
WAMIT
Model Number :
WMT JET 100-87
Certification :
CE,ISO
Place of Origin :
CHINA
MOQ :
1 set
Payment Terms :
L/C, T/T
Supply Ability :
300 SETS/YEAR
Delivery Time :
15 DAYS
Packaging Details :
WOODEN CASE
usage :
water jet cutting machine
max pressure :
87000psi /600MPA
continuous working pressure :
75,400-81,200psi (520-560mpa)
motor :
Simens
electricity components :
Schneider
weight :
1200 kg
size :
1680*1200*1200 mm
name :
waterjet cutting pump
power :
100hp
Description
600mpa 87000psi 100HP 75kw 300mm steel cutting Siemens Motor Water Jet Cutting Intensifier Pump
HP hydraulic intensifier pump features:
Maximum pressure: 87000Psi.
Boost ratio: 20:1.
Working pressure: 75,400-81,200psi (520-560mpa)
Maximum displacement: 5.2L/min.
Inlet pressure: 0.4MPa.
Main motor power: 75KW.
With Siemens motor and Siemens high quality PLC control

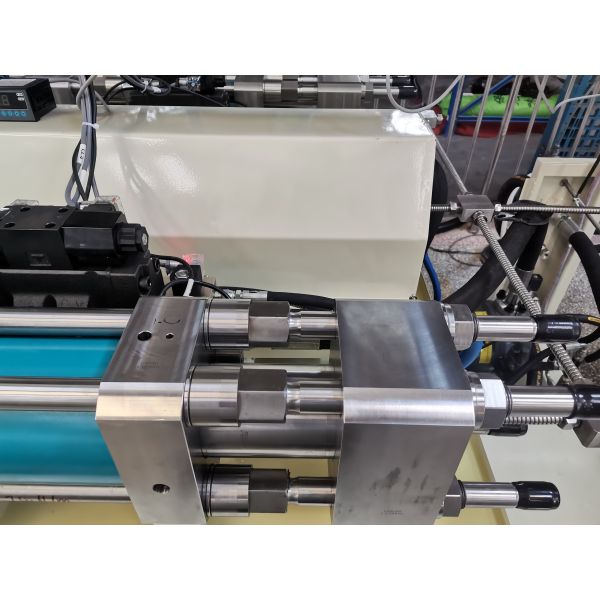

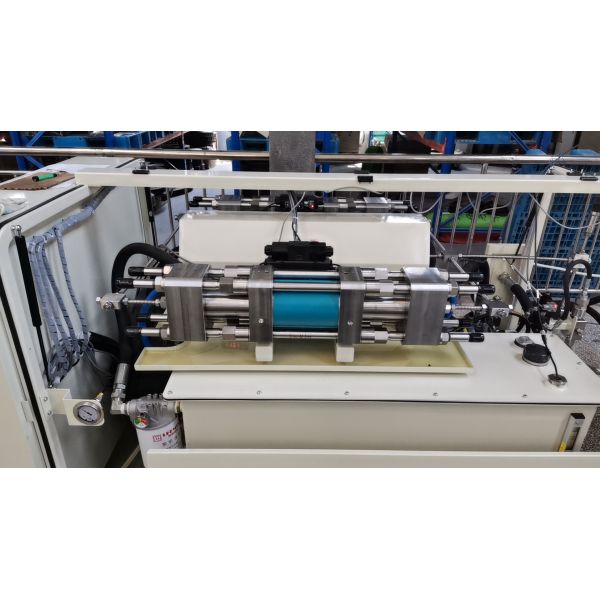

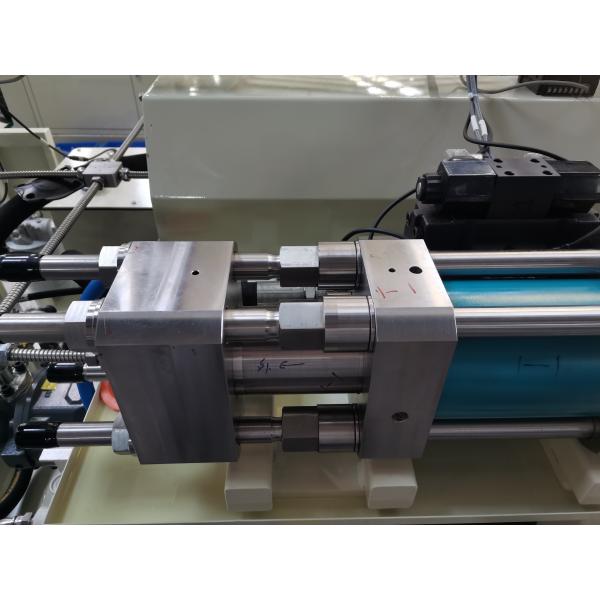

Intensifier parts and pipe system (high pressure cylinder, Ceramic plunger assy, high pressure seal, low pressure seal, high pressure pipeline, check valve, etc.) Single row water filtration system (5Micron, 1micron, series) Manual voltage regulation Over-pressure automatic shutdown and under-voltage automatic protection function. A10V071 automatic variable oil pump and Schneider electrical components with high performance.

600mpa 87000psi 100HP 75kw 300mm steel cutting Siemens Motor Water Jet Cutting Intensifier Pump

600mpa 87000psi 100HP 75kw 300mm steel cutting Siemens Motor Water Jet Cutting Intensifier Pump

600mpa 87000psi 100HP 75kw 300mm steel cutting Siemens Motor Water Jet Cutting Intensifier Pump

600mpa 87000psi 100HP 75kw 300mm steel cutting Siemens Motor Water Jet Cutting Intensifier Pump

600mpa 87000psi 100HP 75kw 300mm steel cutting Siemens Motor Water Jet Cutting Intensifier Pump

WAMIT company profile:

Shandong WAMI CNC Technology Co., Ltd is a professional manufacturer of water jet cutting machine. We are specialized in R&D, manufacturing, sales and technical services of ultra high pressure water jet cutting systems and relative parts. Our water jet cutting machine is widely used in stone industry, glass industry, metal industry, composite materials(plastic, rubber, acrylic, foam), food industry and so on.
