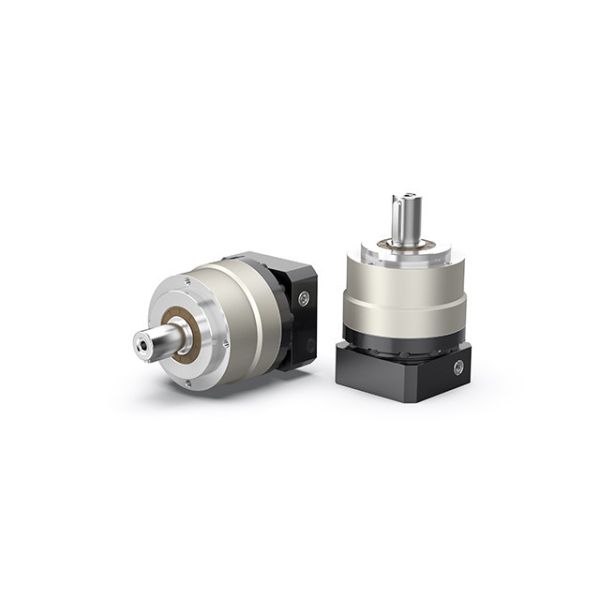

The Wanshsin WSP series planetary gearbox is a type of high-precision gearbox that uses planetary gears to transmit torque and reduce speed in various industrial applications. This series of gearboxes is designed to handle high torque and high radial loads with low backlash and high accuracy.

The WSP series consists of a sun gear in the center, surrounded by planet gears that rotate around it, all contained within a stationary ring gear. The gear teeth are cut with high precision and are designed to minimize friction and wear. The planetary gearbox also includes bearings and seals that are designed to ensure long service life and reliability.

The WSP series is available in various sizes and ratios, with a range of output options, such as shafts or flanges, to accommodate a wide variety of applications. The gearbox can also be configured with various motor mounting options to provide easy integration with a variety of motors.

Overall, the Wanshsin WSP series planetary gearbox is a durable and high-performance solution for applications that require precise torque and speed control, such as robotics, machine tools, and automation equipment.

PRODUCT FEATURESS

1. Adopting an integrated dual-support structure design, the input bearing is assembled on the output shaft, resulting in better concentricity, lower noise, and ensuring extremely high rotational accuracy.

2. The installation flange, bearing seat, and internal gear are designed as an integrated unit , ensure the highest accuracy and strength;

3. The 064~140 series sun gears are designed with an integrated structure, providing better torque transmission capability and higher precision;

4. Compared to most brands on the market, the module and dimensions of the helical gear system have been improved by 5% to 7%, with a greater rated torque;

5. The WSP series features a four-planet gear design to further enhance the allowable output torque with output ratios of 3, 4, and 5 . Combined with a compact overall size, the power density is increased by more than 30%
