Flange Mounted Reduction Ratio 1/3 Parallel Helical Gearbox Cast Iron
Flange Mounted Reduction Ratio 1/3 Parallel Helical Gearbox Cast Iron
Specifications
Brand Name :
Wanshsin
Model Number :
F87/TWSSB2.2KW-4/TF/115.82/B/M1/90°
Certification :
ISO9001, CCC, CE
Place of Origin :
China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5,000 Pieces per Month
Delivery Time :
7-14 working days
Packaging Details :
Carton Package or Wooden Box
Stages: :
2 or 3
Output Torque :
200-7840Nm
Reduction Ratio :
1:3-282
Frequency :
50Hz/60Hz
Assemble Type :
Flange Mounted
Mounting Position :
M1/M2/M3/M4/M5/M6
Gear Unit Size :
37/47/57/67/77/87/97/107/117/127
Housing Material :
Cast Iron
Description

Parallel Shaft Helical Gear Motor Series F Reduction Ratio 1:3-282 Flange Mounted for Carriage Drives

Based on the high-quality raw materials and high requirements of processing technology, Wanshsin R.F.K.S series gear motor with excellent performance: Higher torque, Transmission more stable, Higher bearing capacity, Lower noise.

Wanshsin high-quality raw material for gearbox:
1 Housing material: High strength gray iron HT200.
2 Tooth surface hardness: 58-62HRC.
3 Grinding accuracy of tooth surface: level 5-6.
4 Strong wear resistance.

Main applied for
Harbor and shipping
Hoist and transport
Electric power
Coal mining
Cement and construction
Paper and light industry
Chemical industry and environmental protection

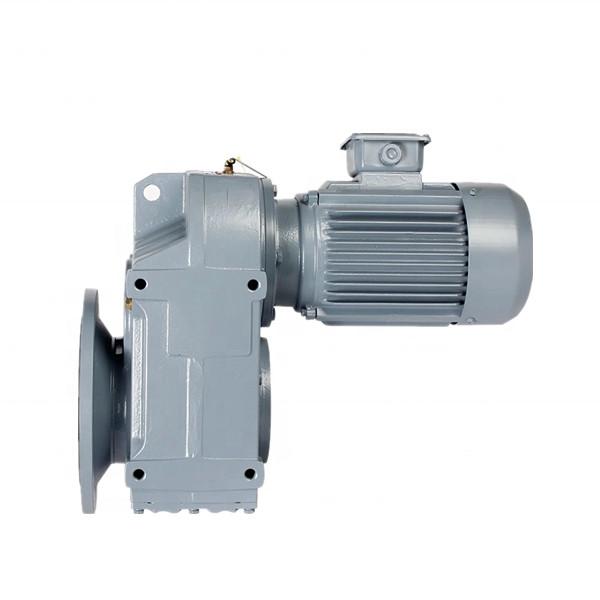

Flange Mounted Reduction Ratio 1/3 Parallel Helical Gearbox Cast Iron

FAQ


Q: What should I provide when I choose gearbox/speed reducer?
A: The best way is to provide the motor drawing with parameter. Our engineer will check and recommend the most suitable gearbox model for your reference. Or you can also provide below specification as well:
1) Type, model and torque.
2) Ratio or output speed
3) Working condition and connection method
4) Quality and installed machine name
5) Input mode and input speed
6) Motor brand model or flange and motor shaft size

Q: Are you a motor manufacturer?
A: Yes, we are motor manufacturer. we develop and produce both the motors and gear reducers all by our own factory.

Q: How long does it take to finish my order?
A: Normally your order could be delivery in 7-15 days, some hot sales products could be fast delivered in 1 week. It depends on the quantity.

Q: Can I get a sample first?
A: Sure, we are honored to offer you sample for test before placing a formal order.
