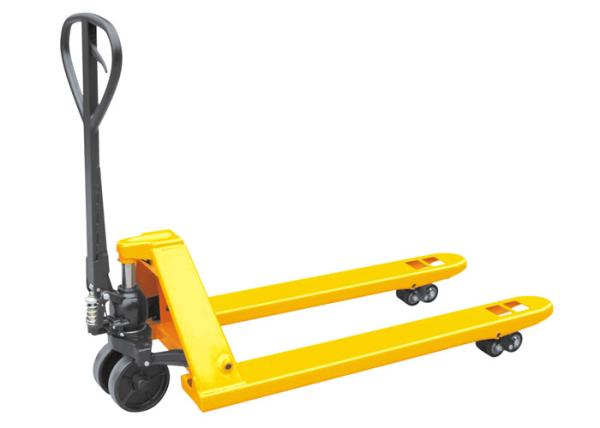

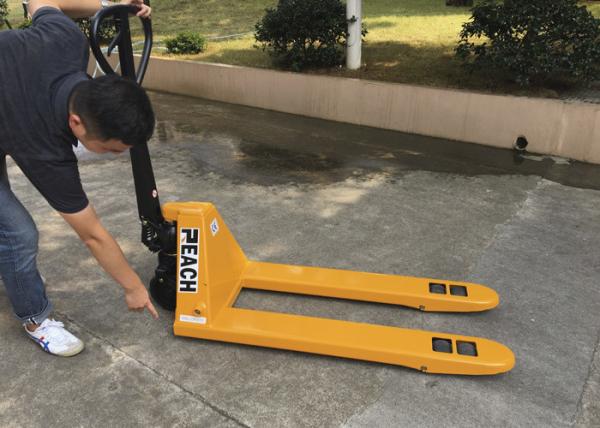

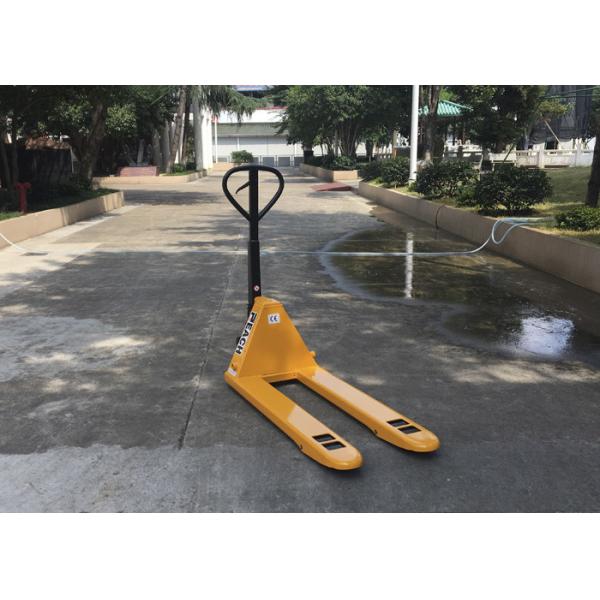

Big Capacity Ride On Pallet Truck , Heavy Duty Narrow Pallet Jack Lightweight
Big Capacity Ride On Pallet Truck , Heavy Duty Narrow Pallet Jack Lightweight
Big Capacity Ride On Pallet Truck , Heavy Duty Narrow Pallet Jack Lightweight
Big Capacity Ride On Pallet Truck , Heavy Duty Narrow Pallet Jack Lightweight
Big Capacity Ride On Pallet Truck , Heavy Duty Narrow Pallet Jack Lightweight
Big Capacity Ride On Pallet Truck , Heavy Duty Narrow Pallet Jack Lightweight
Specifications
Brand Name :
REACH
Model Number :
WB
Certification :
CE, TUV
Place of Origin :
Zhejiang, China
MOQ :
6 sets
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
40000 sets per month
Delivery Time :
25 - 30 days
Packaging Details :
6sets/pallet, 144 / 180sets for a 20ft container
Capacity :
5000kg
Lowered fork height :
88/78mm
Steering wheel :
200/180
Fork wheel :
85*80/75*80
Max. lifting height :
205/195mm
Fork length :
1150/1220mm
Width overall forks :
550/685mm
Service weight :
103-110kg
Description

Big capacity 5000kg hand pallet truck high reliability and long service life of 5 years

Quick Details

Model: heavy duty type hand pallet truck

​​​Capacity: 5000kg

Lowered fork height: 88/78mm

Total lift height: 205/195mm

Fork dimension: 550/685*1150/1220mm

Advantages:

  • High reliability and long service life of 5 years.
  • Double lifting speed when loads under 600kg, which turns back to regular speed when above it.
  • Impact free lifting ensures safety of cargo loading.
  • The lifting system is equipped with overloading protection valve to ensure the safe operation.
  • The utilized structural design guarantees the convenience of assembling and disassembling.
  • Light-weight fork frame, made from high rigidity steel plate.
  • Compact appeatance, complete rocker arm, ensure the whole truck evenly pressed.
  • There is a finger hole in the connection of handle and pump, easy to assemble.

Big Capacity Ride On Pallet Truck , Heavy Duty Narrow Pallet Jack Lightweight

​

SPECIFICATIONS
Model WB
Load capacity kg 5000
Lowered fork height mm 88/78
Steering wheel mm 200/180
Fork wheel single mm ~
Fork wheel tandem mm 85*80/75*80
Max. lifting height mm 205/195
Total height mm 1253/1243
Overall length mm 1544/1614
Fork length mm 1150/1220
Width overall forks mm 550/685
Ground clearance, centre of wheelbase mm 28/18
Aisle width for pallets 1000*1200 crossways mm 1744/1814
Aisle width for pallets 800*1200 lengthways mm 1794/1814
Turning radius mm 1300/1370
Service weight kg 103-110
