Integrated Pump Hand Pallet Truck Quick Lift Fork Length 1220mm High Performance
Integrated Pump Hand Pallet Truck Quick Lift Fork Length 1220mm High Performance
Specifications
Brand Name :
REACH
Model Number :
BF-III
Certification :
CE, TUV
Place of Origin :
Zhejiang, China
MOQ :
6 sets
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
40000 sets per month
Delivery Time :
25 - 30 days
Packaging Details :
6sets/pallet, 144 / 180sets for a 20ft container
Capacity :
2500kg
Lowered fork height :
85/75mm
Steering wheel :
180mm
Fork wheel :
74*93/74*70mm
Max. lifting height :
195/185mm
Fork length :
1150/1220mm
Width overall forks :
520/550/685mm
Service weight :
70kg
Description

Premium economical 2500kg hand pallet truck with integrated pump

Quick Details

Model: Economical hand pallet truck BF- III

​​​Capacity: 2500kg

Lowered fork height: 85/75mm

Total lift height: 195/185mm

Fork dimension: 520/550/685*1150/1220mm

Turning radius: 1276/1346mm

Advantages:

  • Economical type of BF, only could lift 2500kg, choose more suitable grease fitting, the supporting holder for this type.

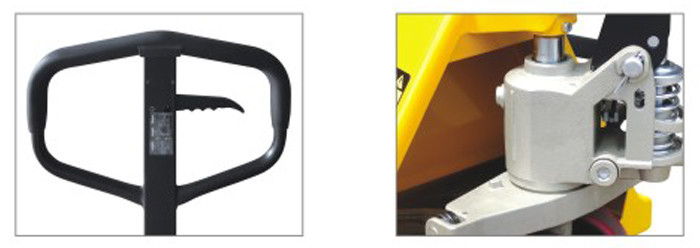

  • Integrated pump without welding, do not have leaking problems.

  • Frame force is more reasonable, and the strength is more reliable.

  • Handle seat has hole it is more convenient for installation of control chain.

  • Forks lowering speed is controllable, with overload valve to avoid overloading.

  • Option: 1. steering wheel 200mm (fork wheel 80mm) are available.

​ 2. Nylon wheel, polyurethane wheel, rubber wheel, single fork roller or tandem fork rollers.

3. Fork length: 800mm, 900mm, 1000mm, 1100mm.

4. Foot pedal release.

5. Pump color: black painting.

6. Quick lift (double speed lifting).

SPECIFICATIONS
Model BF-III
Capacity kg 2500
Lowered fork height mm 85/75
Steering wheel mm 180
Fork wheel single mm 74*93
Fork wheel double mm 74*70
Max. lifting height mm 195/185
Height of tiller in drive position min./max. mm 1214
Overall length mm 1543/1613
Fork length mm 1150/1220
Width overall forks mm 520/550/685
Ground clearance, centre of wheelbase mm 32/22
Aisle width for pallets 1000*1200 crossways mm 1743/1813
Aisle width for pallets 800*1200 lengthways mm 1793/1813
Turning radius mm 1276/1346
Service weight kg 70

​
