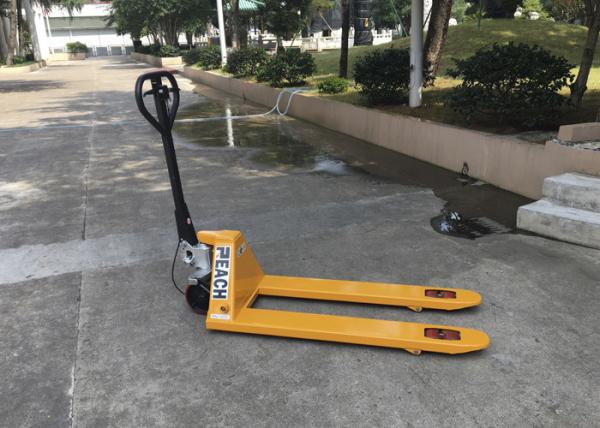

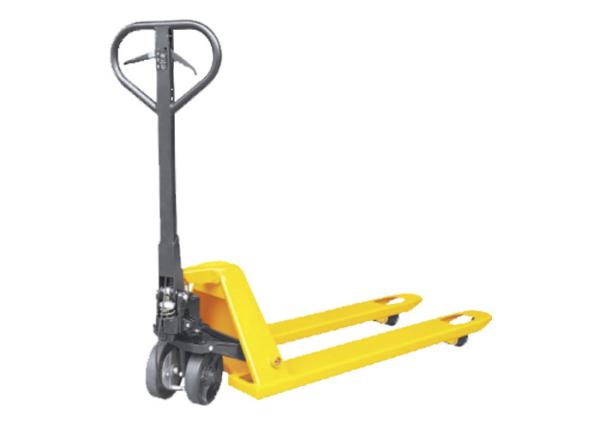

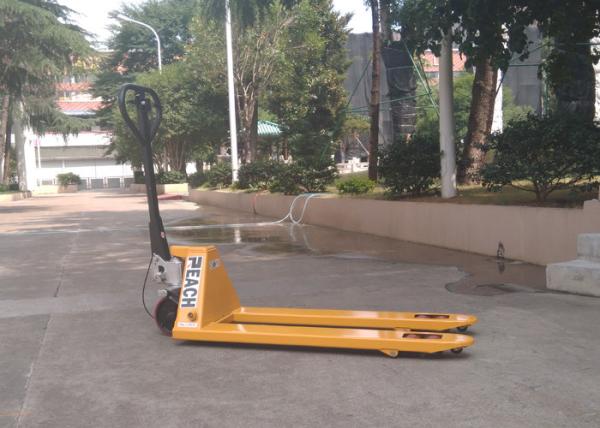

Lifting Height 200mm Hand Pallet Truck With Brake System Yellow Color
Lifting Height 200mm Hand Pallet Truck With Brake System Yellow Color
Lifting Height 200mm Hand Pallet Truck With Brake System Yellow Color
Lifting Height 200mm Hand Pallet Truck With Brake System Yellow Color
Lifting Height 200mm Hand Pallet Truck With Brake System Yellow Color
Lifting Height 200mm Hand Pallet Truck With Brake System Yellow Color
Specifications
Brand Name :
REACH
Model Number :
BFB
Certification :
CE, TUV
Place of Origin :
Zhejiang, China
MOQ :
6 sets
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
40000 sets per month
Delivery Time :
25 - 30 days
Packaging Details :
6sets/pallet, 144 / 180sets for a 20ft container
Capacity :
2500kg
Lowered fork height :
85/75mm
Lifting height :
200/180mm
Fork length :
1150/1220mm
Width overall forks :
520/550/685mm
Aisle width for pallets 1000*1200 crossways :
1733/1803mm
Aisle width for pallets 800*1200 lengthways :
1783/1803mm
Service weight :
65-85kg
Description

2500kg lifting height 200mm hand pallet truck with brake system

Quick Details

Model: Hand pallet truck BFB with brake system

​​​Capacity: 2500kg

Lowered fork height: 85/75mm

Total lift height: 200/180mm

Fork dimension: 520/550/685*1150/1220mm

Turning radius: 1266/1336mm

​Service weight: 65-85kg

Advantages:

  • Hand pallet truck with brake system can conveniently cease the truck on navigate ramps.

  • Suitable for the customers who have ramps in there working area and strict safety requirements.

  • Option: foot brake.

SPECIFICATIONS OF HAND PALLET TRUCK WITH BRAKE
Model BFB
Load capacity kg 2500
Lowered fork height mm 85/75
Steering wheel mm 200/180
Fork wheel single mm 80*93/74*93
Fork wheel tandem mm 80*70/74*70
Max. lifting height mm 200/190
Total height mm 1224/1214
Overall length mm 1533/1603
Fork length mm 1150/1220
Width overall forks mm 520/550/685
Ground clearance, centre of wheelbase mm 40/30
Aisle width for pallets 1000*1200 crossways mm 1733/1803
Aisle width for pallets 800*1200 lengthways mm 1783/1803
Turning radius mm 1266/1336
Service weight kg 65-85

​

Lifting Height 200mm Hand Pallet Truck With Brake System Yellow Color
